ATyS C20/C30
64
SOCOMEC - Réf.: 532 214 C
Networks analysis
Programming and connections
ATyS
Networks analysis

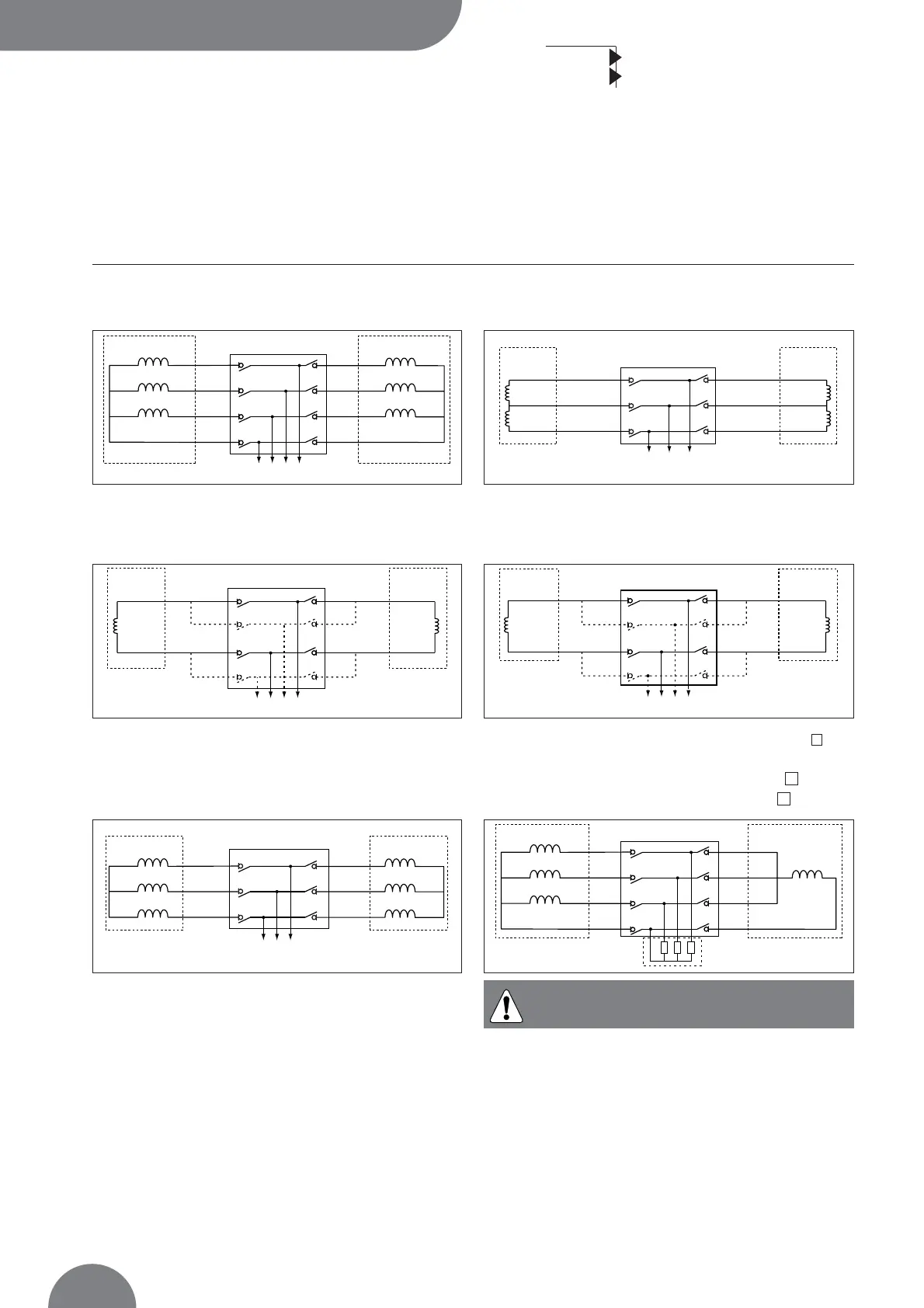

TYPES OF NETWORKS
> Three phases network with neutral - 4NBL
1
Source 1
Load
Source 2
2
3
N
1
2
3
N
ATYS 173 A GB
> Two phases network (with midpoint) - 2NBL
Load
Source 1 Source 2
1
2
3
1
2
3
ATYS 174 A GB
> Phase-Phase network without neutral - 2BL
Load
Source 1 Source 2
1
3
1
3
ATYS 175 A GB
> Single phase network with neutral
(phase-neutral) - 1BL*
Load
Source 1 Source 2
1
N
1
N
ATYS 176 A GB
> Three phases network without neutral - 3NBL
1
Source 1
Load
Source 2
2
3
1
2
3
ATYS 177 A GB
> Three phases network with neutral on source
Single phase network with neutral on source - 41 NBL
2
1
1
Source 1
Load
Source 2
2
3
N
1
N
ATYS 178 A GB
Only single phase loads.
* to power supply the product, make a strap between 103 (N)
and 104 terminals (power supply input 104-106 on source ).
1
