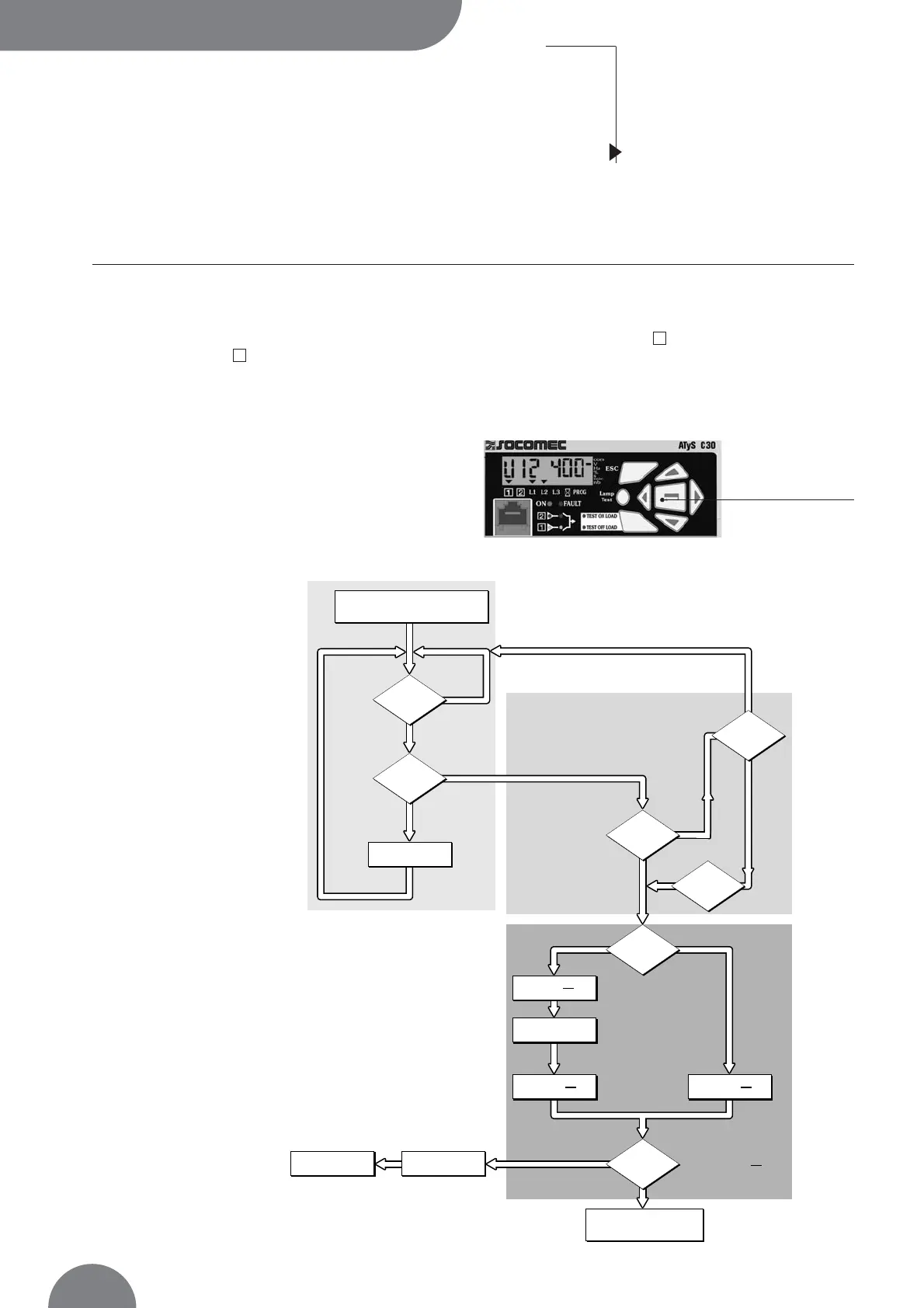

RETURN TO PRIORITY SOURCE
This sequence is activated as soon as the changeover
switch is in automatic mode and in emergency position
(position II):
• the priority source is not available
• the changeover switch is in emergency position (ex:
genset)
• the emergency source is available.
2
1
> Specific feature: manual re-transfer
• When priority source comes back, it can be required
not to automatically retransfer and wait for a more
adequate moment.
• It is possible, validating manual retransfer feature (refer
to programming), to block the re-transfer.
It is initiated from:
• validation push button localy or on ATyS D20
• via a programming input if MTF option is selected.
ATYS 143 B
Manual retransfer
= validation press
Or
optional input acti-
vation, Mtf feature
Reset MRT
Priority source unavailable
Generator running (emergency source) &
Switch in position II
Priority
source
return?
Count down
MRT
Transfer II > 0
Count Down OMR
Transfer 0 > I Transfer II > I
No
Yes
Yes
Yes
Yes
OMR = 0
No
No
MRT = 0
OMR ≠ 0?
Validation
CDT = 0
Count Down CDT
Reset CDT
Mode
semi-auto
activated ?
(Mtf)
Transfer II > I
Stop generator
position 1
Back to priority source control
Yes
No
Priority source
lost again
before MRT
times out?
Main’s
return
Manual re-transfer
To loss of priority
source sequence
Loss of priority source
Loss of
priority source ?
ATYS 155 A GB
> Sequence description
