PRELIMINARY OPERATIONS
GENERAL INFORMATION
Check the following points as soon as
you receive the Countis ATd package:
• the packing is in good condition,
• the product has not been damaged
during transit,
Recommendation:
For personnel and product safety
please read the contents of these
operating instructions carefully before
connecting.
• the product reference number con-
forms to your order,
• the package contains the product
fitted with 2 terminal shrouds,
• operating instructions.
The Countis ATd is an active energy
meter with 80A direct input. This pro-
duct enables direct readings of total
or partial consumption via LCD dis-
play, and is thus fully compliant with
standard IEC 61036 Class 1. It is enti-
rely programmable and has a fixed
100Wh pulse output.
The Countis ATd is housed in a
modular case (7 versions).
The display and key-pad make it a
truly user-friendly instrument.

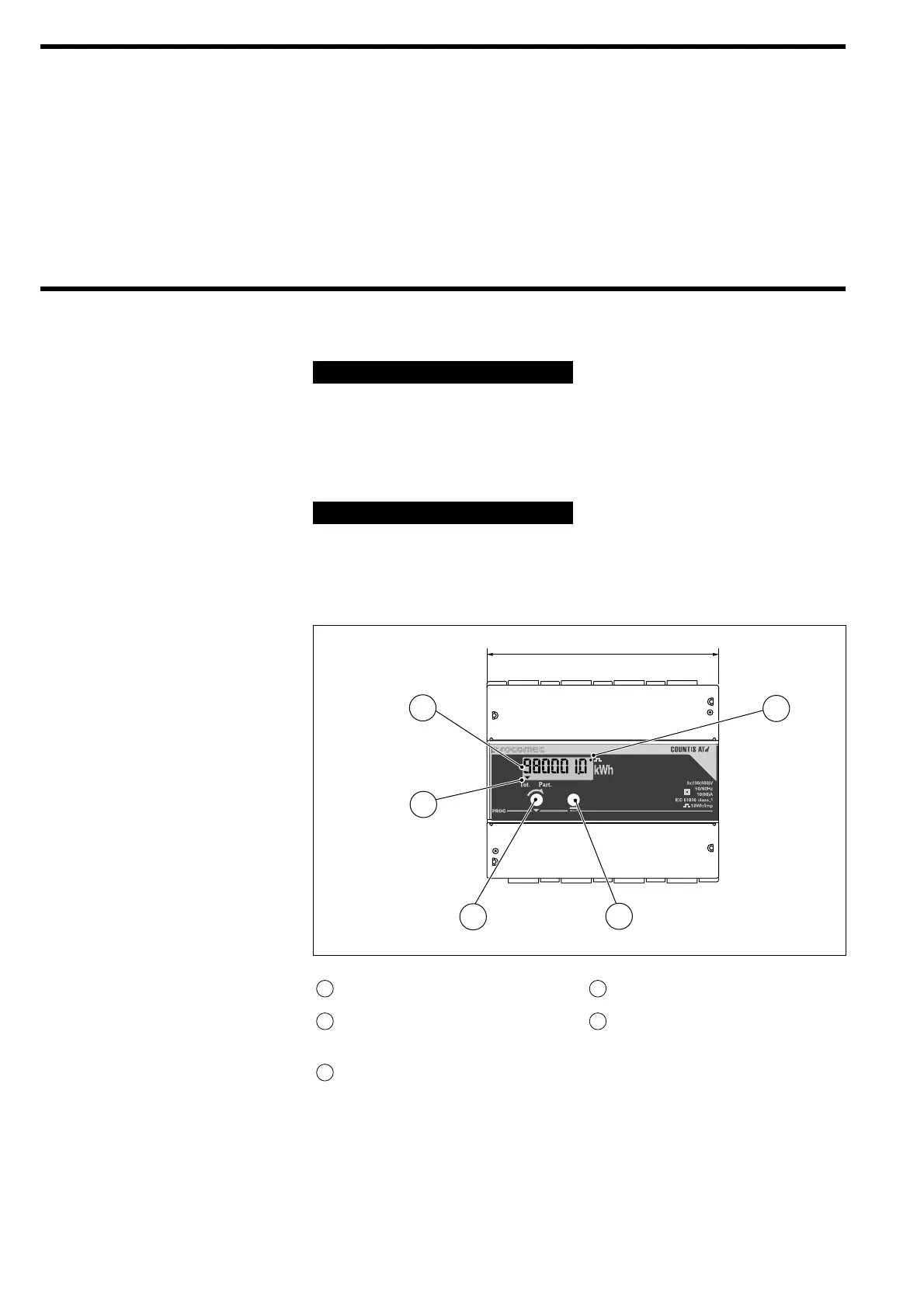

kWh consumption display
Flashing icon indicating incorrect
connection
Total and partial display, or
scrolling in programming mode
