6. CONNECTION
6.1. Connecting the COUNTIS E03/04
LL
NN
4 5
21 3
Fixed / exible
0.14 mm
2
->
2.5mm
2
0.27" / 6.9 mm
PZ2
4.5 lb.in /
0.5 Nm max.
Rigid / supple
1.5 mm² ->
6 mm²
0.47" / 12 mm
PZ2
10.62 lb.in /
1.2 Nm max.

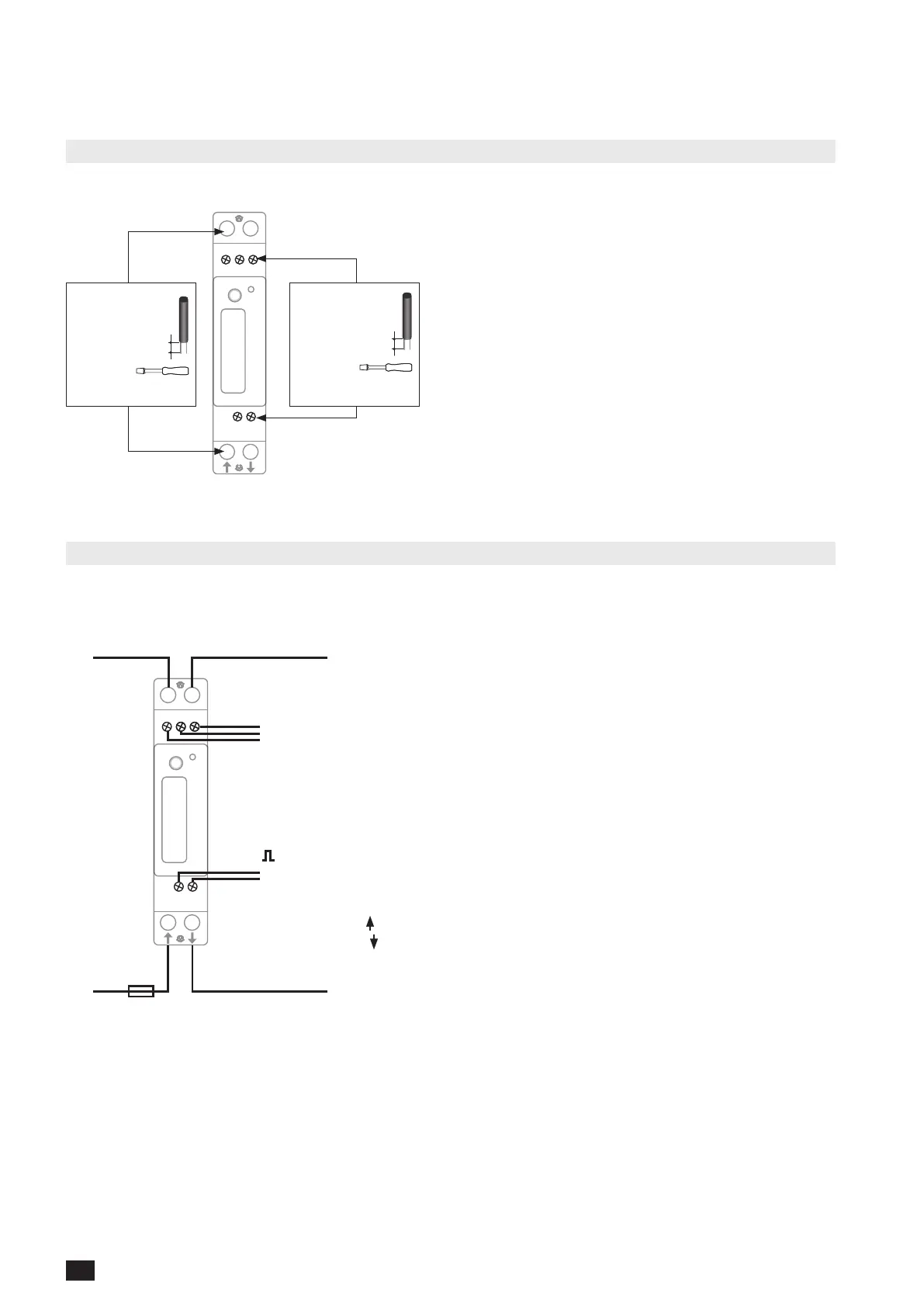

6.2. Connection to the electrical network and to the loads
The COUNTIS E03/E04 are intended for single-phase networks with neutral.
Modbus
1: +
2: -
3: NC (not connected). May be used for shielding continuity.
Pulse output
4: -
5: +
Optocoupler pulse outputs
Terminals 4-5 must be supplied with voltage between 5 and 27
VDC (27 mA max)
Network
L:
: Phase input
L':
: Phase output
N: Neutral connection
LL
NN
4 5
L L’
40A
N
230 VAC 50/60 Hz
21 3
NC
-
+
COM RS485
MODBUS
-
+
2 3
