socomec COUNTIS E03 User Manual

14 EN
COUNTIS E03/E04 - 545865A - SOCOMEC
9. CONFIGURATION
The device can be congured directly from the COUNTIS E03/E04 screen in programming mode or via the
communication link. The paragraphs below describe conguring using the screen.
9.1. On-screen conguration
From the screen, go to programming mode to change your communication settings. How to browse through the
programming mode is described in the following stages:
Function Where Buttons Press
Switch pages within a menu Every page within a menu
Realtime
Go to SETUP menu Menu page SETUP >3 sec
Change a value/digit SETUP pages real-time
Confirm a value/digit SETUP pages > 3 sec
Exit SETUP menu
SAVE screen from the SETUP
menu
> 3 sec
Start/stop the displayed partial meter Partial meter menu > 3 sec
Reset the displayed partial meter to zero Partial meter menu > 3 sec

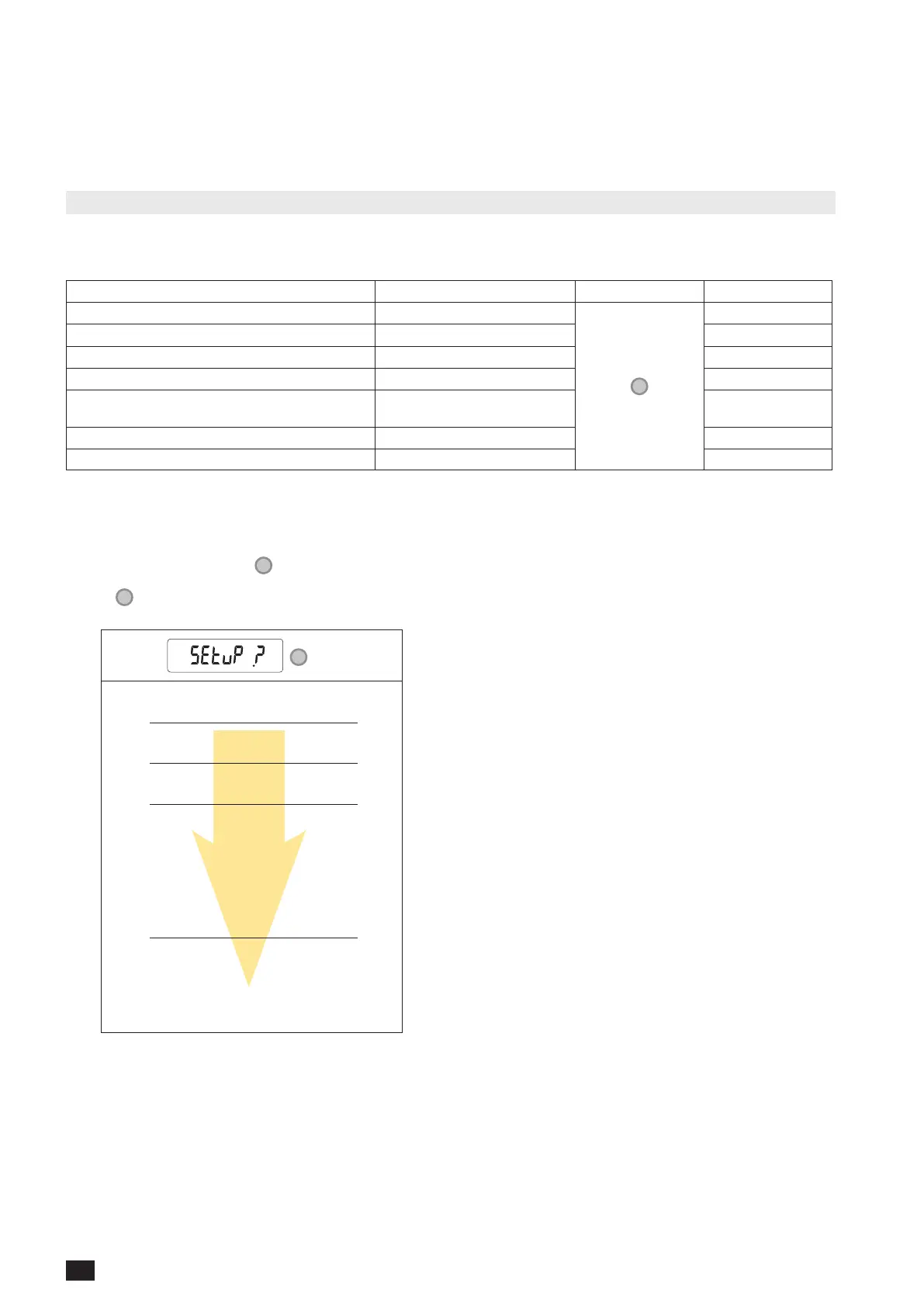

9.1.1. View all of the menu "SETUP"
In the SETUP menu, press " " for 3 seconds to put the device into programming mode.
Press "
" to go to the different screens:
> 3s
Communication address
Communication speed
Communication parity
Reset partial energy to zero:
Ea+ partial (kWh)
Ea- partial (kWh)
Eap- partial (kWh)
Er+ partial (kWh)
Er- partial (kVarh)
Back to rst screen of "SETUP" menu
