socomec COUNTIS E27 User Manual

10 EN
COUNTIS E27/E28 - 545881A - SOCOMEC

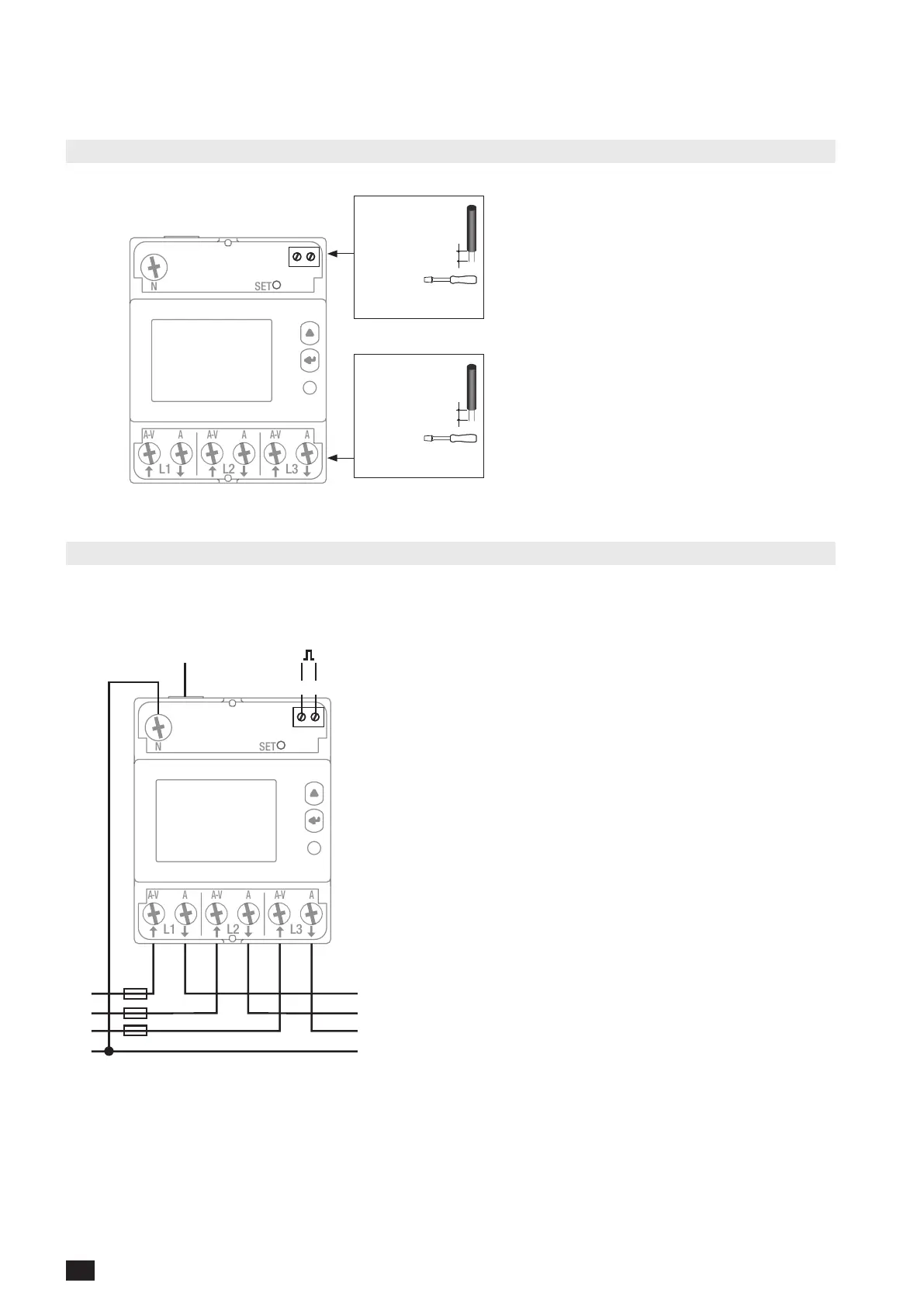

6. CONNECTION
6.1. Connecting the COUNTIS E27/E28
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
21
Fixed / exible
0.14 mm
2
->
2.5mm
2
0.27" / 6.9 mm
PZ2
4.5 lb.in /
0.5 Nm max.
Fixed / exible
1.5 mm
2
->
35mm
2
0.47" / 12 mm
PZ2
17.70 lb.in /
2 Nm max.
6.2. Connection to the electrical network and to the loads
The COUNTIS E27 and E28 are intended for three-phase networks with neutral.
SET
N
A
A-V
A
A-V
A
A-V
L1
L2
L3
L1
L2
L3
N
3 x 80A
230/400 VAC 50/60 Hz
21
- +
Ethernet
Ethernet
RJ45. The Ethernet cable must pass twice through
the ferrite core, positioned at least 5cm away from the
device.
Pulse output
1: -
2: +
Optocoupler pulse outputs
Terminals 1-2 must be supplied with voltage between 5
and 27 VDC (27mA max)
Mains
L1 A-V: Phase input
L1 A: Phase output
L2 A-V: Phase input
L2 A: Phase output
L3 A-V: Phase input
L3 A: Phase output
N: Neutral connection
