socomec COUNTIS E41 - Connection Procedures; Connecting the COUNTIS E41;E42 Terminals

10
EN
COUNTIS E41/E42 - 547979A - SOCOMEC

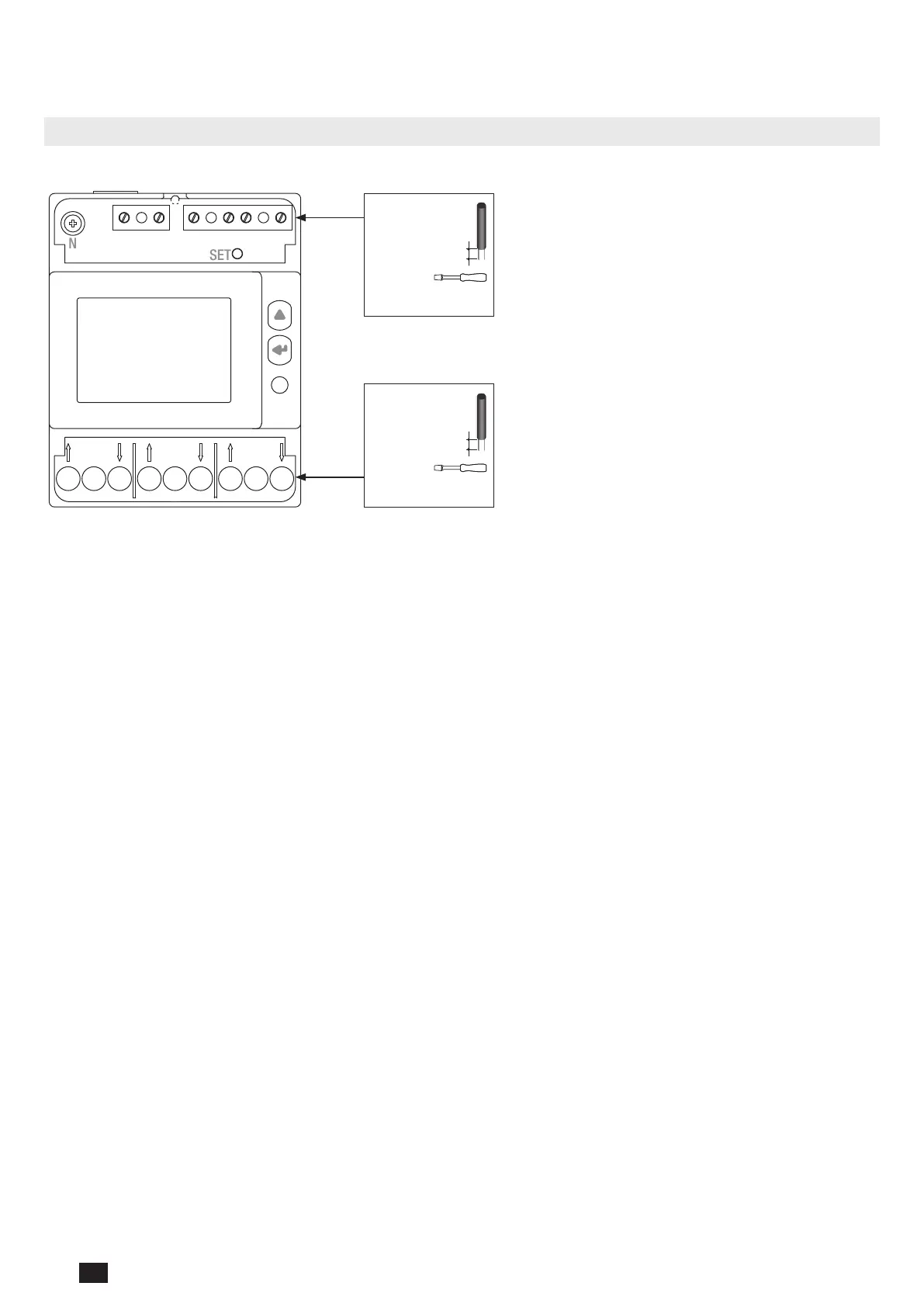

6. CONNECTION
6.1. Connecting the COUNTIS E41/E42
SET
N
1 2 3 4 5 6
L1
A V A A V A A V A
L2 L3
Fixed / exible
0.14 mm
2
->
2.5mm
2
0.27" / 6.9 mm
PZ2
4.5 lb.in /
0.5 Nm max.
Fixed / exible
1.5 mm
2
->
35mm
2
0.47" / 12 mm
PZ2
17.70 lb.in /
2 Nm max.
