4. INTRODUCTION
4.1. Introducing the COUNTIS E41/E42
The COUNTIS E41/E42 are modular active and reactive electrical energy meters that displays consumed and produced energy.
They are designed for three-phase networks and can be connected using a CT 1/5 A on installations up to 12000 A.
4.2. Functions
• Measures and displays bidirectional total and partial energy
• Dual tariff management: T1 / T2
• Pulse output
• Electrical parameter measurements: I, U, V, f
• Bidirectional Power, power factor
• MID
Description Reference
COUNTIS E41 4850 3063
COUNTIS E42 4850 3064

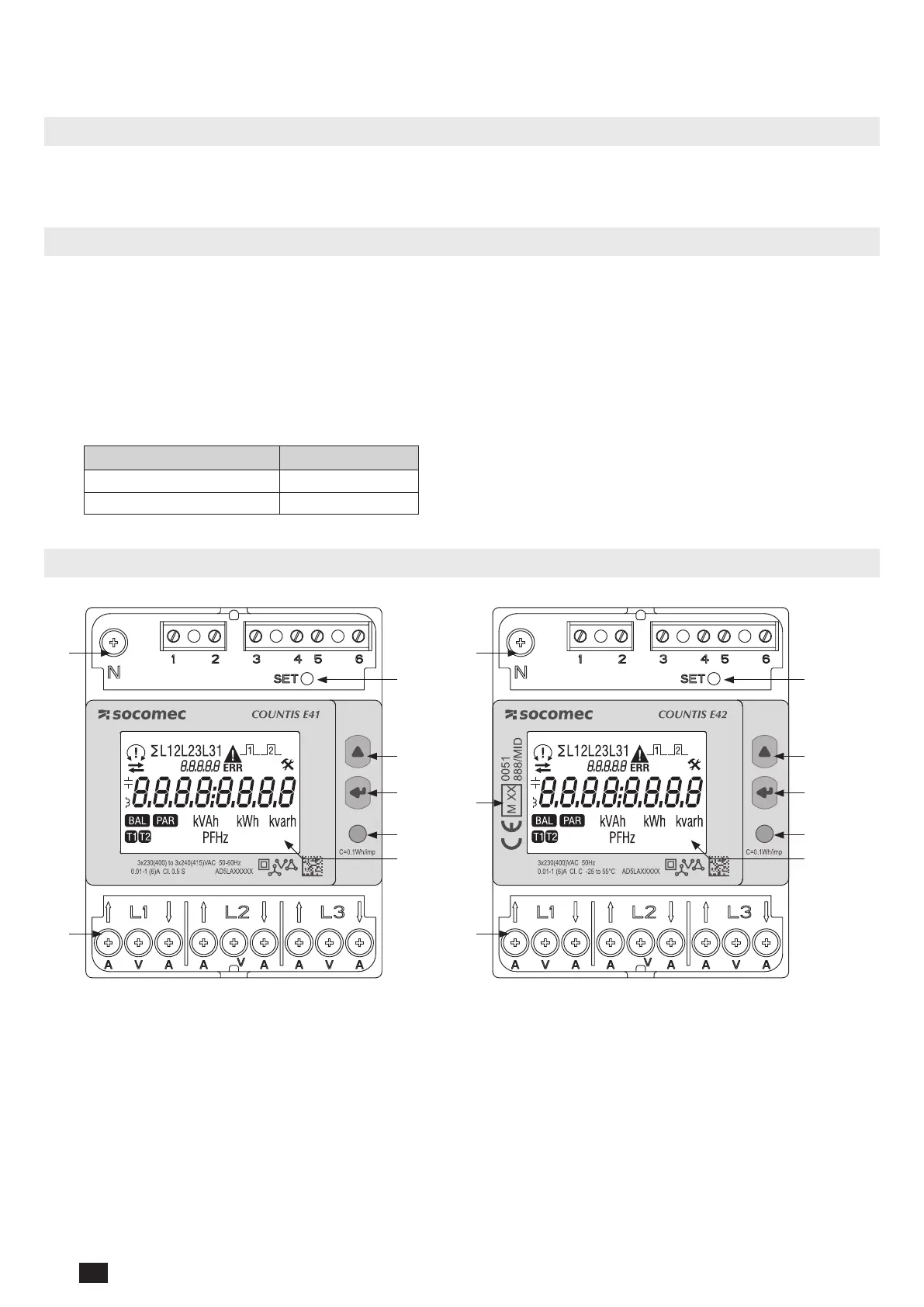

4.3. Front panel
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Information relating to MID certication
8. Neutral connection
1. SET button
2. UP button
3. ENTER key
4. Metrological LED
5. LCD display
6. Current and voltage terminals
7. Neutral connection
