8. VISUAL AND AUDIBLE WARNING SIGNALS
8.1. ALARM INDICATION (ITYS 1-3 kVA)

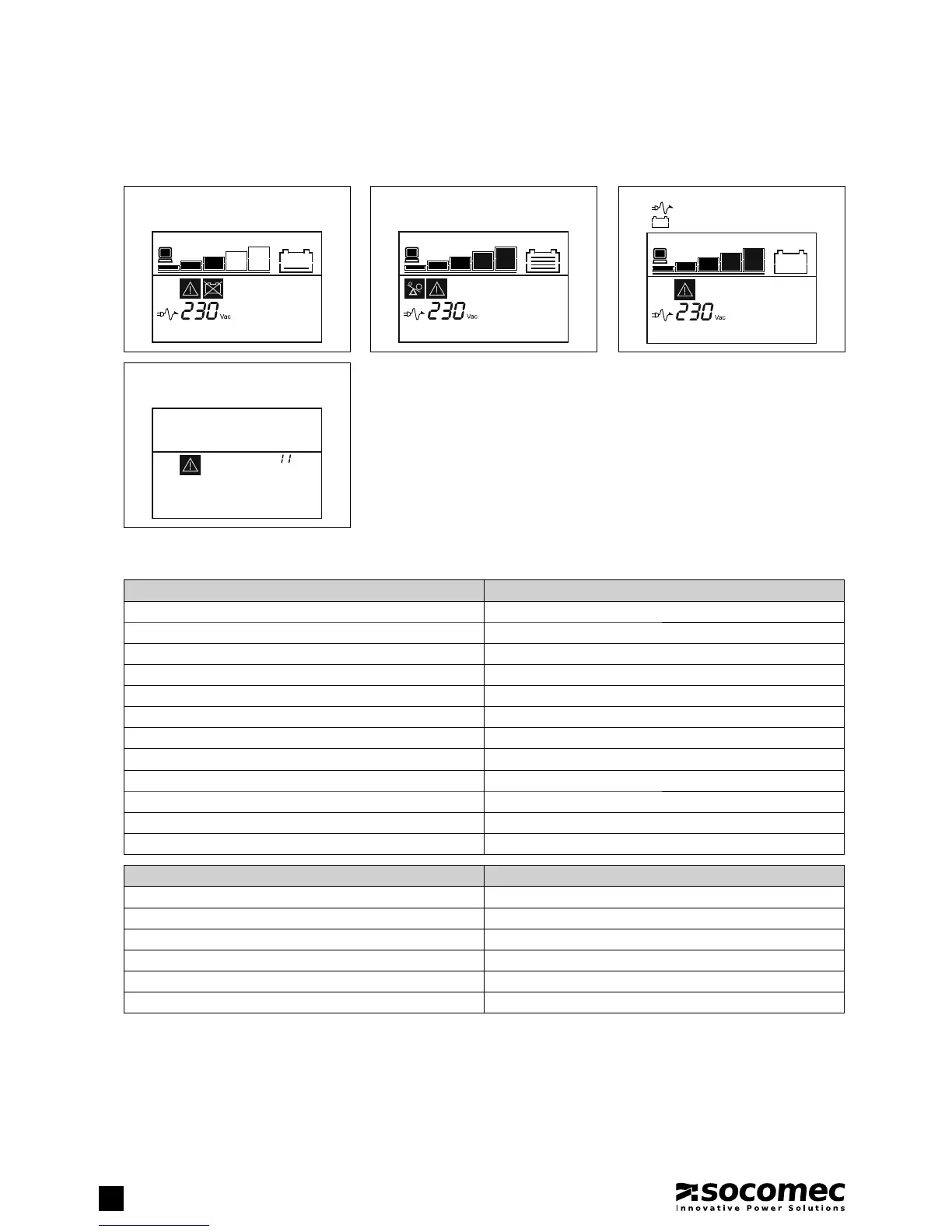

The following table shows the description of the LCD display string:
Battery replace or battery disconnect
Fault mode (over temperature)
Overload alarm
Low battery mode
Icon
will fl ash every second
Icon
will fl ash every second
Warning Code
Site fail 09
Fan fail 10
Battery over voltage (over charged) 11
Battery low 12
Charge fail 13
DC-DC temperature high 21
Inverter temperature high 24
Ambient temperature high 25
Line voltage high (OVCD action) 26
Battery open 27
Overload 29
EPO active 30
Fault Code
Bus fault 05
Inverter fault 06
Overload fault 07
Over temperature fault 08
Inverter short 14
Bus short 28
