socomec ITYS - Visual and Audible Warning Signals; Mimic Panel Indicators and Alarms

33
ENGLISH
ITYS 1-10 kVA - Ref.: IOMITYTWXX05-GB 00
AB
G
C
F
E
D
H
I

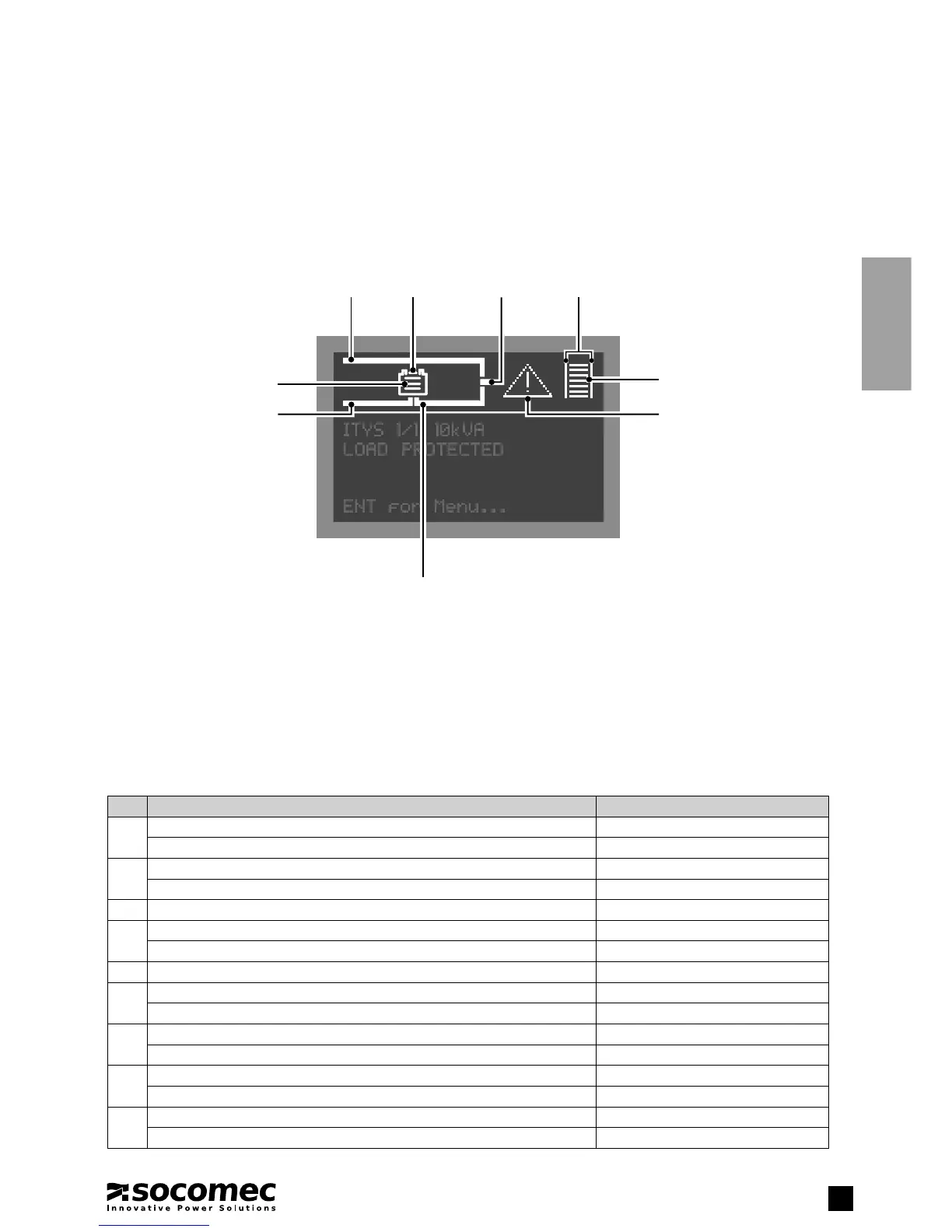

Key
Description Condition
A
Load on bypass, in Eco-mode or Maintenance bypass closed Steady
Automatic bypass alarm Flashing
B
Battery OK Steady
Battery alarm Flashing
C Output voltage present Steady
D
Load present Steady
Overload Flashing
E Output load indicator Steps of 10%
F
Activation code alarm Steady
General alarm Flashing
G
Inverter on Steady
Inverter general alarm Flashing
H
Input rectifi er active, input mains OK Steady
Input rectifi er general alarm/Input mains alarm Flashing
I
Remaining battery capacity Steps of 25%
Battery recharging Sequence
