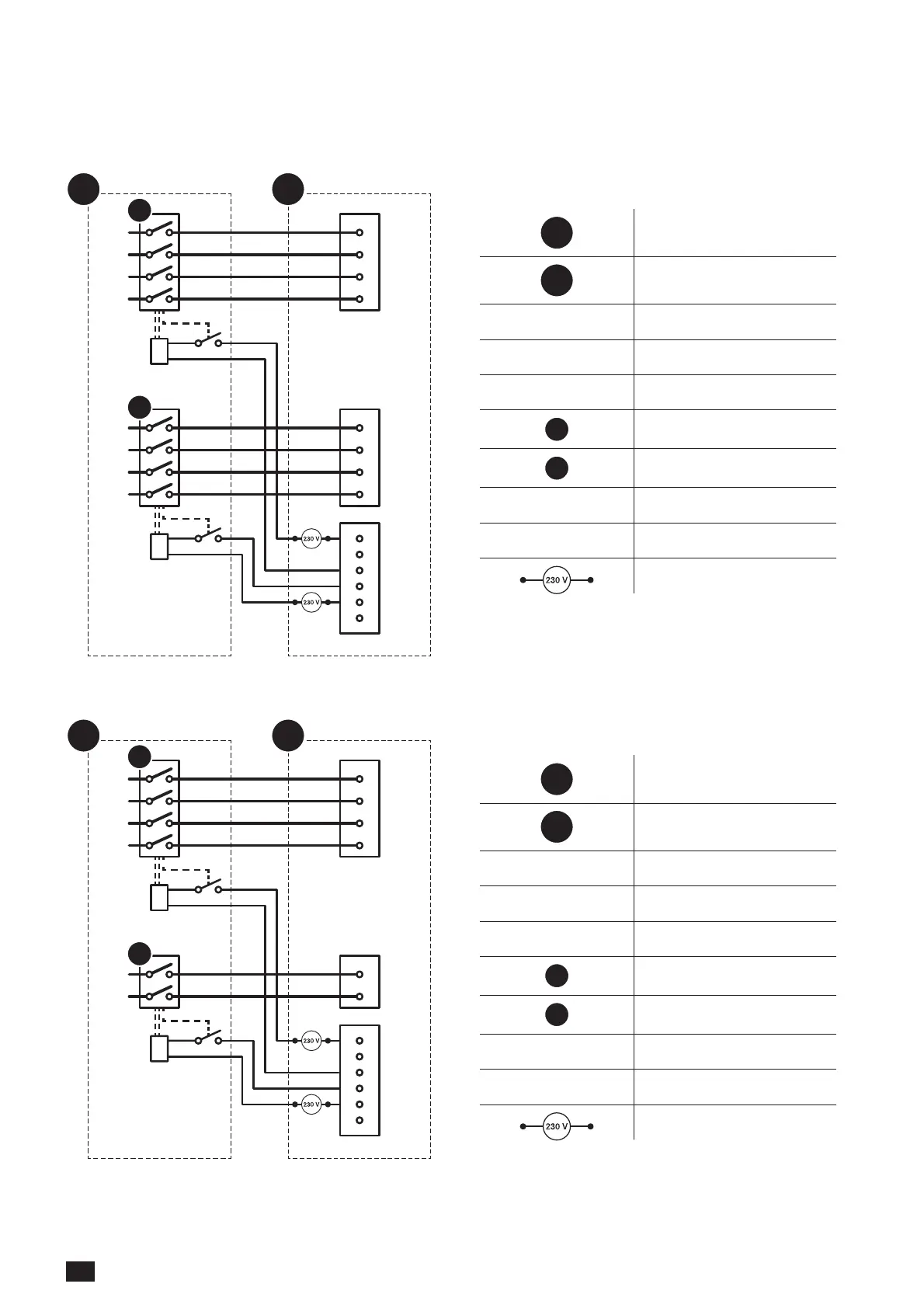

• Separated input mains
Activating UPS protection on the mimic panel: access the MAIN MENU > SERVICE > UPS SETTINGS > INPUT TYPE
> MAINS / AUXILIARY and set the parameter to SEPARATED.
3/3 MODELS
COM2
L1
X10
X40
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
NC2
NO2
NO1
COM1
NC1
B
B
1
3
4
2
KEY
1
Distribution panel
2
UPS
B Trip coil
X10 Mains terminal board
X40 Aux Mains terminal board
3
Mains switch
4
Aux Mains switch
COM2 - NO2 Mains BKF connector
COM1 - NO1 Aux Mains BKF connector
UPS output voltage
3/1 MODELS
COM2
L1
X10
X40
L2
L3
N
L1
L2
L3
N
L1
N
L1
N
NC2
NO2
NO1
COM1
NC1
B
B
1
3
4
2
KEY
1
Distribution panel
2
UPS
B Trip coil
X10 Mains terminal board
X40 Aux Mains terminal board
3
Mains switch
4
Aux Mains switch
COM2 - NO2 Mains BKF connector
COM1 - NO1 Aux Mains BKF connector
UPS output voltage
