SR5 MANUAL

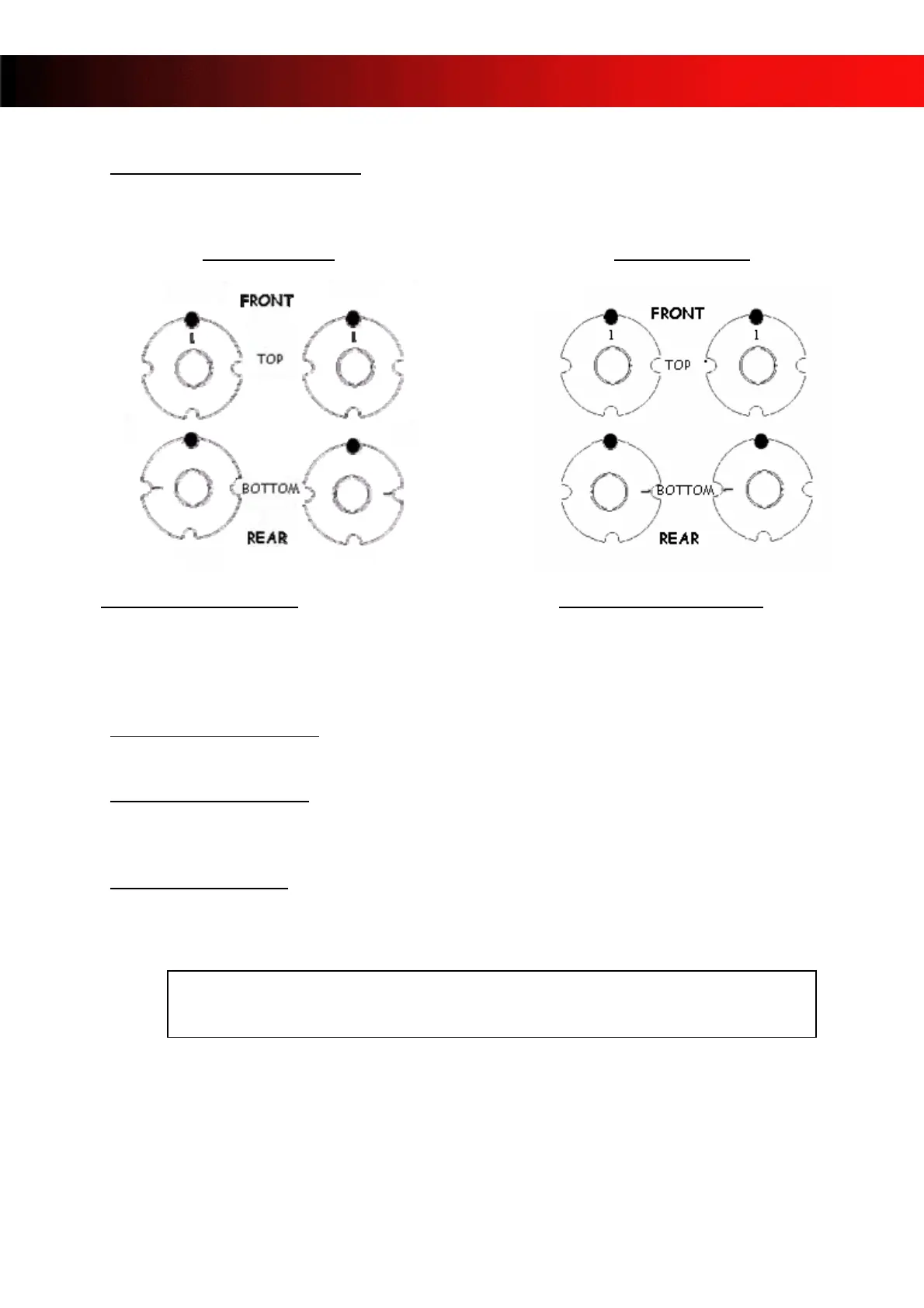

ADJUSTMENT OF THE CAMBER
USE THE ECCENTRICS AT THE BOTTOM:
MORE POSITIVE MORE NEGATIVE
LEF
T
RIGH
T
FIG 3
LEF
T
RIGH
T
FIG 4
STANDARD ADJUSTMENT
(Corresponds to fig4)
Eccentrics at the bottom:
¾ The mark is positioned towards the
outside of the chassis.
Eccentrics at the bottom :
¾ The mark is positioned towards
the inside of the chassis.
INCREASE THE CAMBER
(fig 4)
¾ Use the same position fig 4 and change the eccentric of 1° by the eccentric of 2°.
REDUCE THE CAMBER
(fig 3)
¾ Use position fig 3.
FOR HIGH DEGREES ECCENTRICS TO BE USED IN EXTREME CONDITIONS,
REFER TO THE ITAKA CATALOGUE
NOTE:
- Some negative camber generally improves the performances of the SR5.
- 21 -
