BTS E5~20-DS5 user manualV1.1
Copyright © Shenzhen SOFARSOLAR Co., Ltd

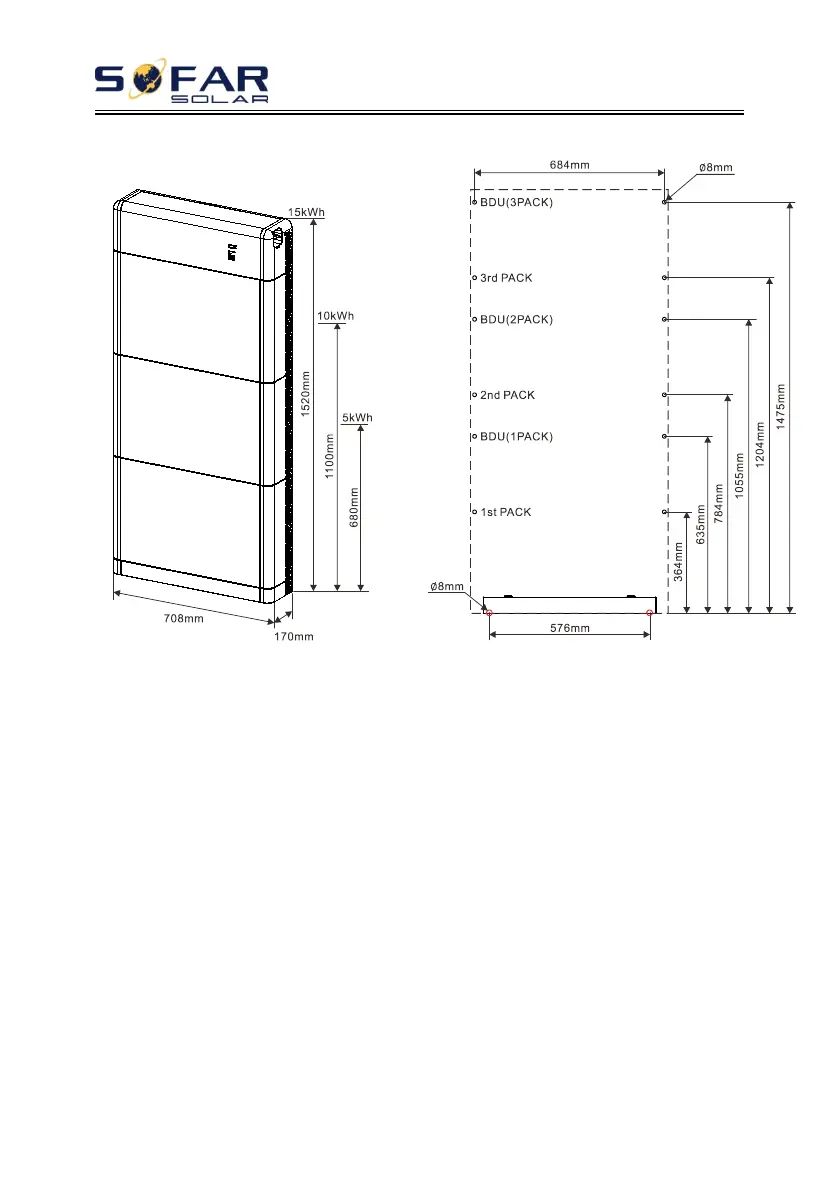

Installation dimensions diagram：
Figure. 3-3 System installation dimensions diagram
Base installation
Procedure：
1） Place the base against the wall and keep it 10 to 25 mm away
from the wall surface. Use a level to adjust the hole position and mark the
hole position with a marker.
2）Remove the base, drill holes using a hammer drill (φ 8mm, depth
range 60-65 mm), and tighten expansion bolt to ensure that the base is
securely installed.
3 ） Mark the holes for fixing the battery module and BDU with a
marker according to the dimensions shown in Figure 3-3.
