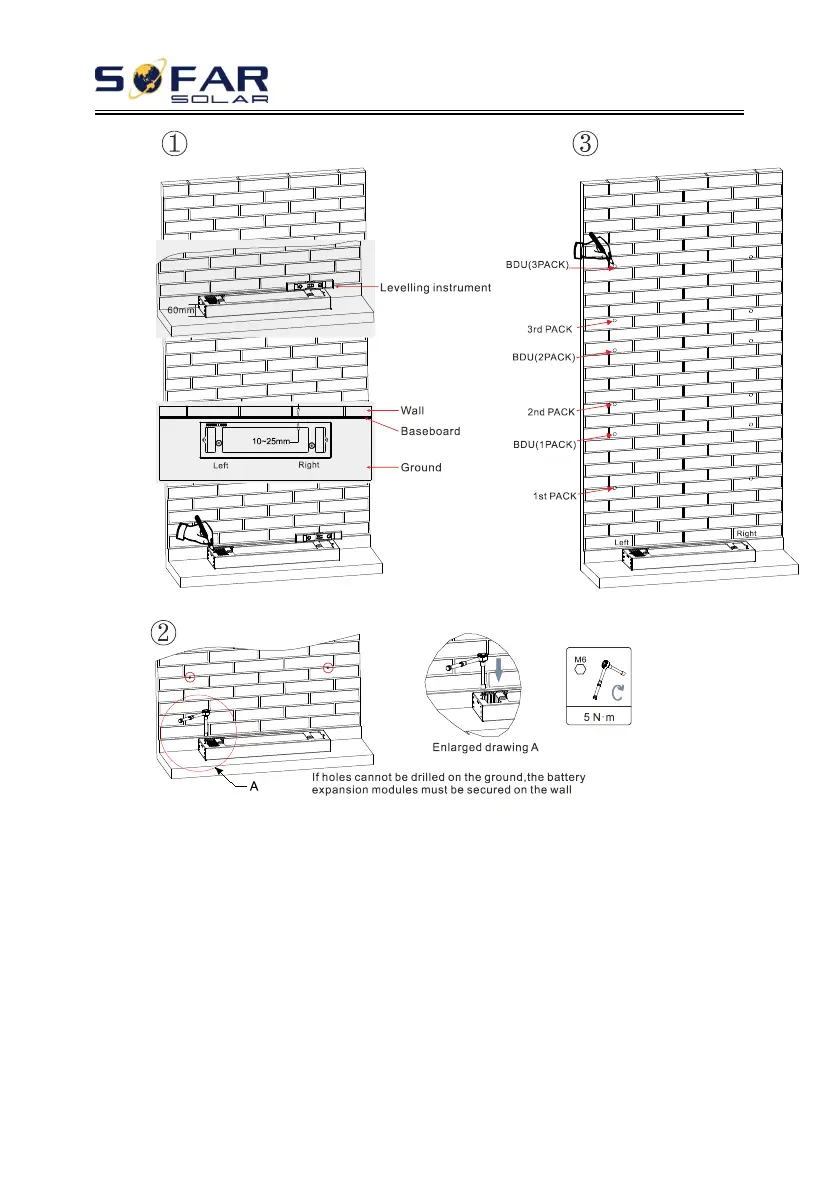

Figure. 3-4 base installation diagram
Fixed installation between modules：
Procedure：
1）Place the first battery module on the base.
2）Install connectors on both sides and tighten the six screws with a
cross screwdriver.
3）Install the remaining battery modules and BDU from bottom to top.
(Before installing the next module, ensure that the screws on the side
connectors of the previous module are firmly installed.)
