BTS E5~20-DS5 user manualV1.1
Copyright © Shenzhen SOFARSOLAR Co., Ltd

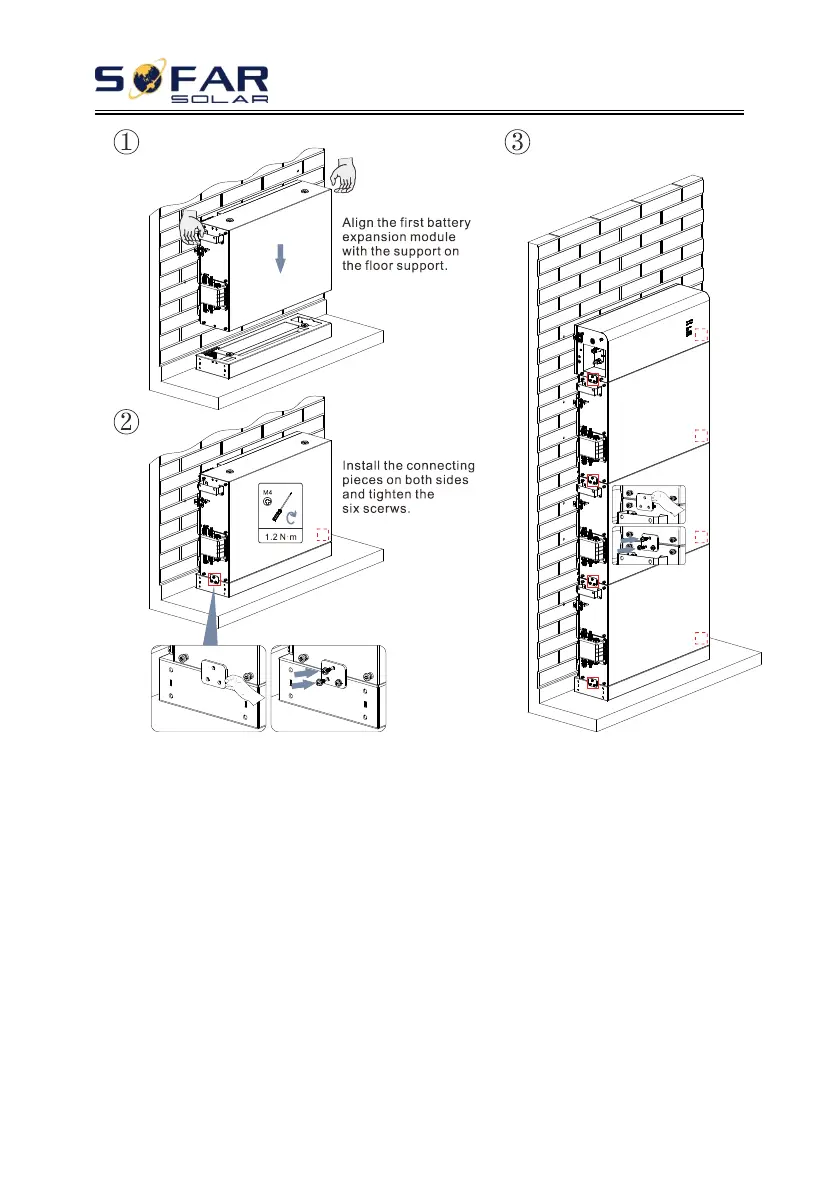

Figure. 3-5 Battery module installation diagram
Anti-tip bracket installation：
Procedure：
1）Drill holes with a hammer drill (φ 8mm, depth range 60-65 mm).
Reposition and drill the holes, if the original one has a large deviation.
2）Install the anti-tip bracket B on the wall, and fasten expansion bolt.
3）Adjust the anti-tip bracket A, make sure the holes are matched
between anti-tip bracket A and anti-tip bracket B.
4）Connect and fix the anti-tip bracket A and anti-tip bracket B with
M6*16 screws.
