1. RS485（Wired monitoring or inverter cascade monitoring）

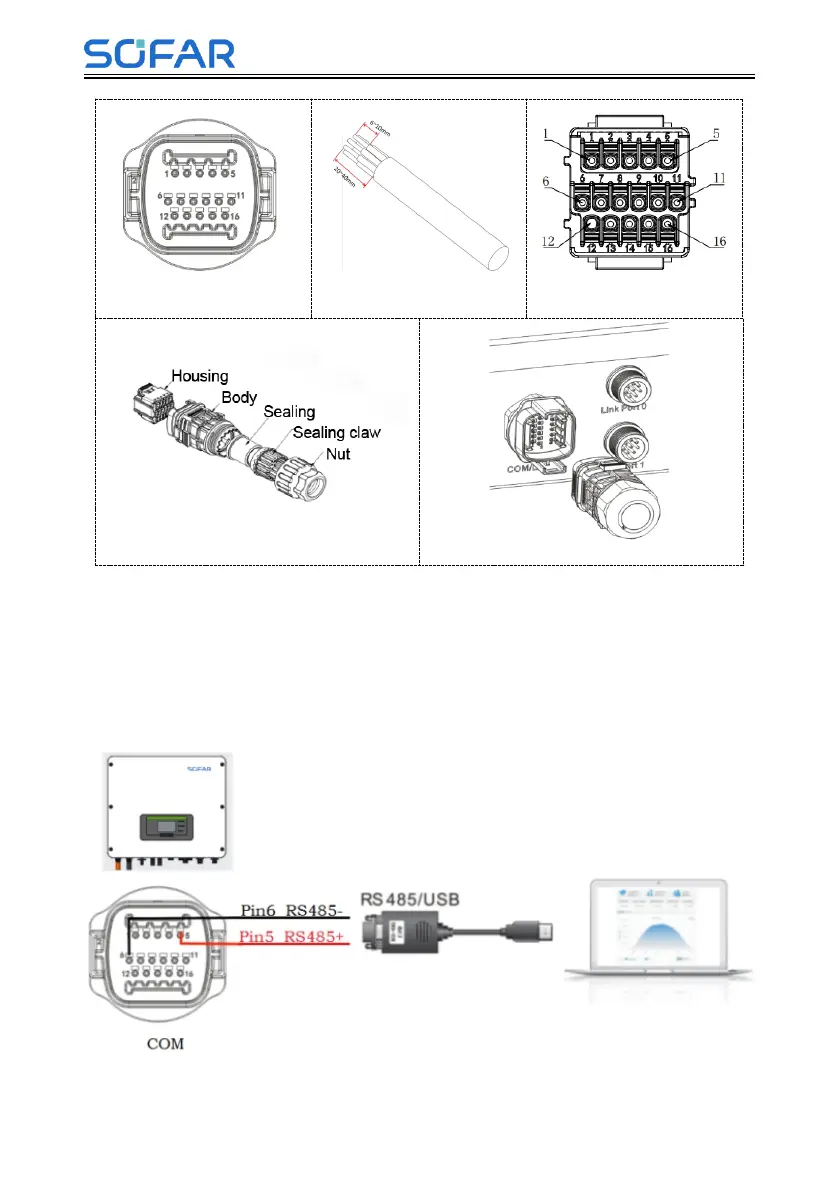

Refer to the figure shown below, connect the RS485+ and RS485- of the
inverter to the TX+ and TX- of the RS485→ USB adapter, and connect the USB
port of the adapter to the computer.(NOTE ： The length of the RS485
communication cable should be less than 1000 m)
Fig 4-10
RS485 wires are connected in parallel between inverters, (NOTE ： When
