3.3. Product Overview
HYD 5-20KTL-3PH inverter is 100% strictly inspected before package and
delivery. It is forbidden to put the HYD 5-20KTL-3PH inverter upside down during
delivery.
CAUTION
Please check the product package and fittings carefully before
installation.

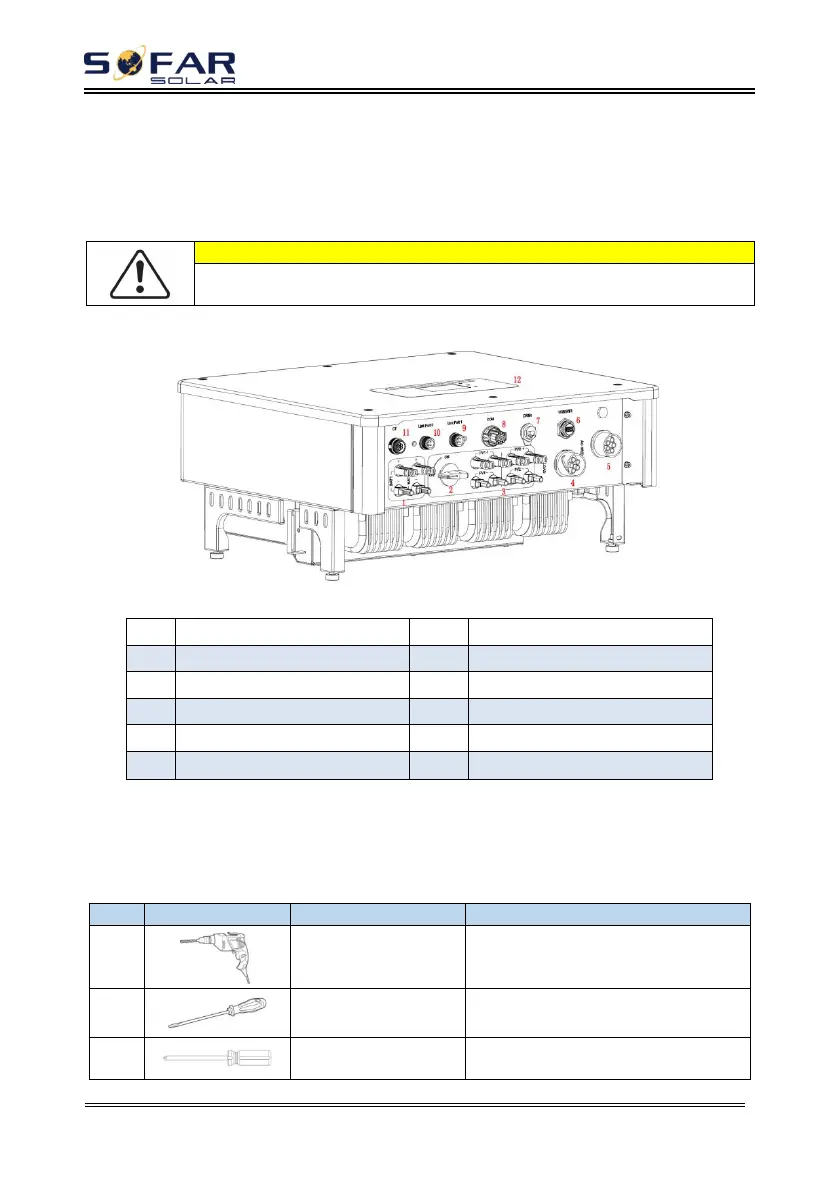

Fig.3-2 HYD 5-20KTL-3PH inverter overview
Table 3-2 HYD 5-20KTL-3PH inverter overview
1
Battery input terminals
7
DRMs
2
DC switch
8
COM
3
PV input terminals
9
Link Port 1
4
Load connection port
10
Link Port 0
5
Grid connection port
11
CT
6
USB/WiFi
12
LCD
3.4. Tools
Prepare tools required for installation and electrical connections.
Table 3-3 Tools required for installation and electrical connections.
NO.
Tool
Model
Function
1
Hammer drill
Recommend drill
dia. 6mm
Used to drill holes on the wall.
2
Screwdriver
Wiring
3
Cross screwdriver
Remove and install AC terminal
screws
