3.6. Determining the Installation Position
Determine an appropriate position for installing the HYD 5-20KTL-3PH
inverter. Comply with the following requirements when determining the installation
position.

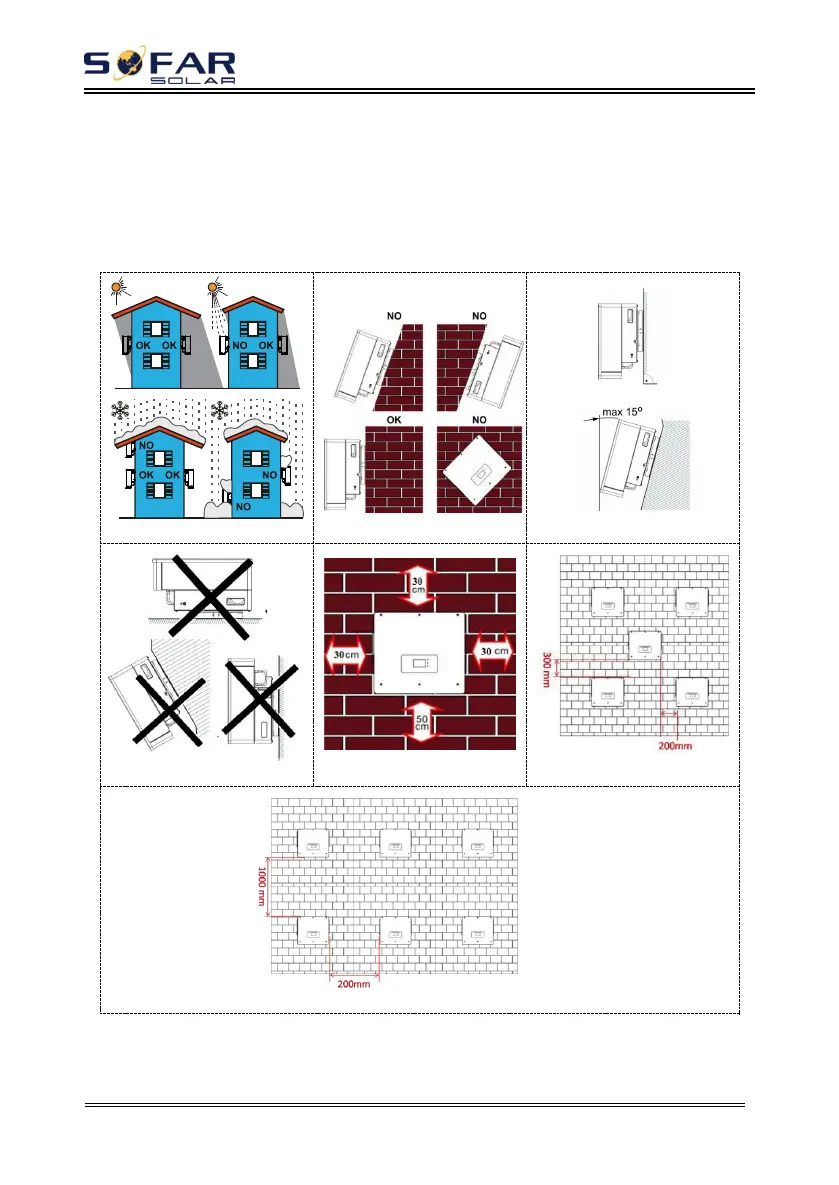

Fig. 3-3 Installation Position of HYD 5-20KTL-3PH inverter
①
②
③
④
⑤
⑥
⑦
