3.7. Moving the HYD 5-20KTL-3PH
Step 1 Open the packaging, insert hands into the slots on both sides of the
inverter and hold the handles, as shown in Fig.3-4.

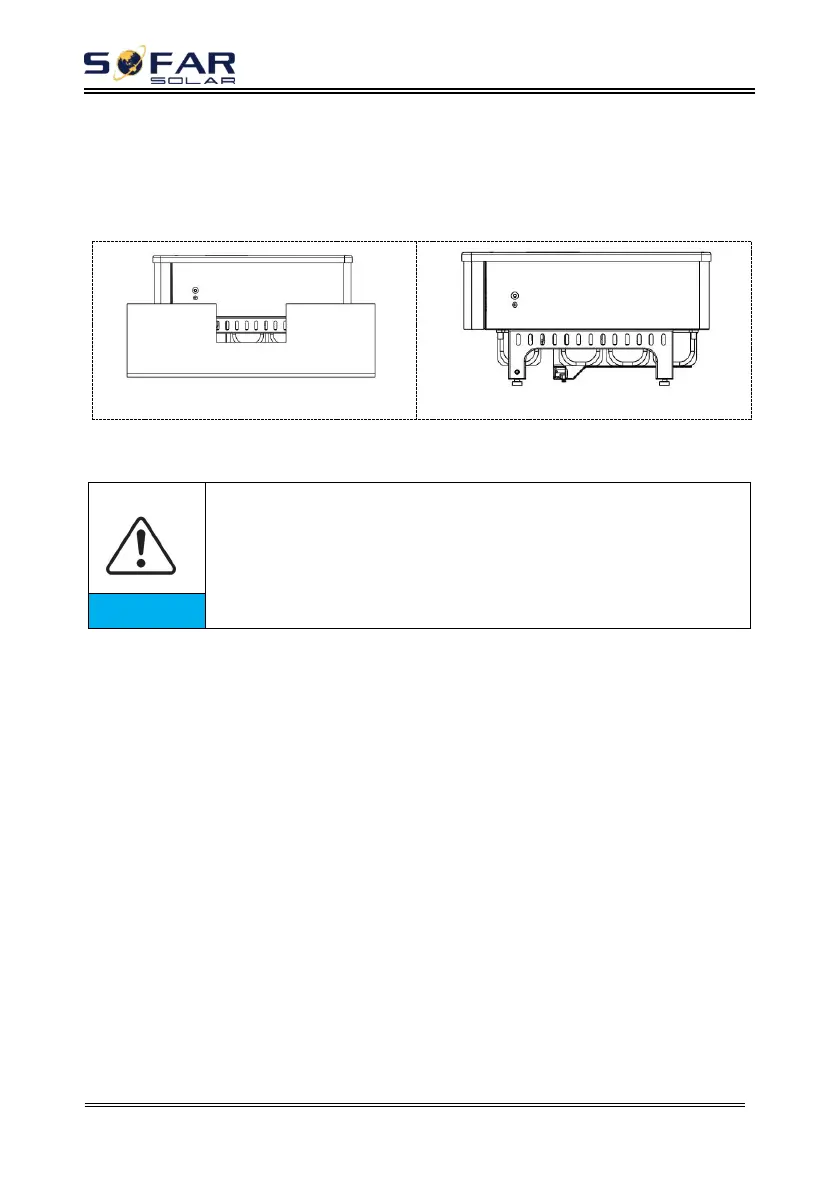

Fig. 3-4 Moving the inverter
①
②
Step 2 Lift the inverter from the packing case and move it to the installation
position.
To prevent device damage and personal injury, keep balance when
moving the inverter because the inverter is heavy.
Do not put the inverter with its wiring terminals contacting the
floor because the power ports and signal ports are not designed to
support the weight of the inverter. Place the inverter horizontally.
When placing the inverter on the floor, put foam or paper under the
inverter to protect its shell.
Attention
3.8. Installing HYD 5-20KTL-3PH
Step 1 Determine the positions for drilling holes, ensure the hole positions are
level, then mark the hole positions using a marker pen, use the hammer drill to drill
holes on the wall. Keep the hammer drill perpendicular to the wall, do not shake
when drilling, so as not to damage the wall. If the error of the hole positions is too
big, you need to reposition.
Step 2 Insert the expansion bolt vertically into the hole, pay attention to the
insertion depth of the expanding bolt (should be deep enough).
Step 3 Align the rear panel with hole positions, fix the rear panel on the wall
by tightening the expansion bolt with the nuts.
Step 4 Hook the inverter to the rear panel. Using an M5 screw to secure the
inverter to the rear panel to ensure safety.
Step 5 You can secure the inverter to the rear panel and protect if from
stealing by installing an anti-theft lock (this action is optional).
