HYD 5-20KTL-3PH User manual

- 21 -

removal wrench into the bayonet and press the wrench with an appropriate strength,

as shown in Fig.4-2⑦.

Before removing the positive and negative connectors, ensure that

the DC SWITCH is OFF.

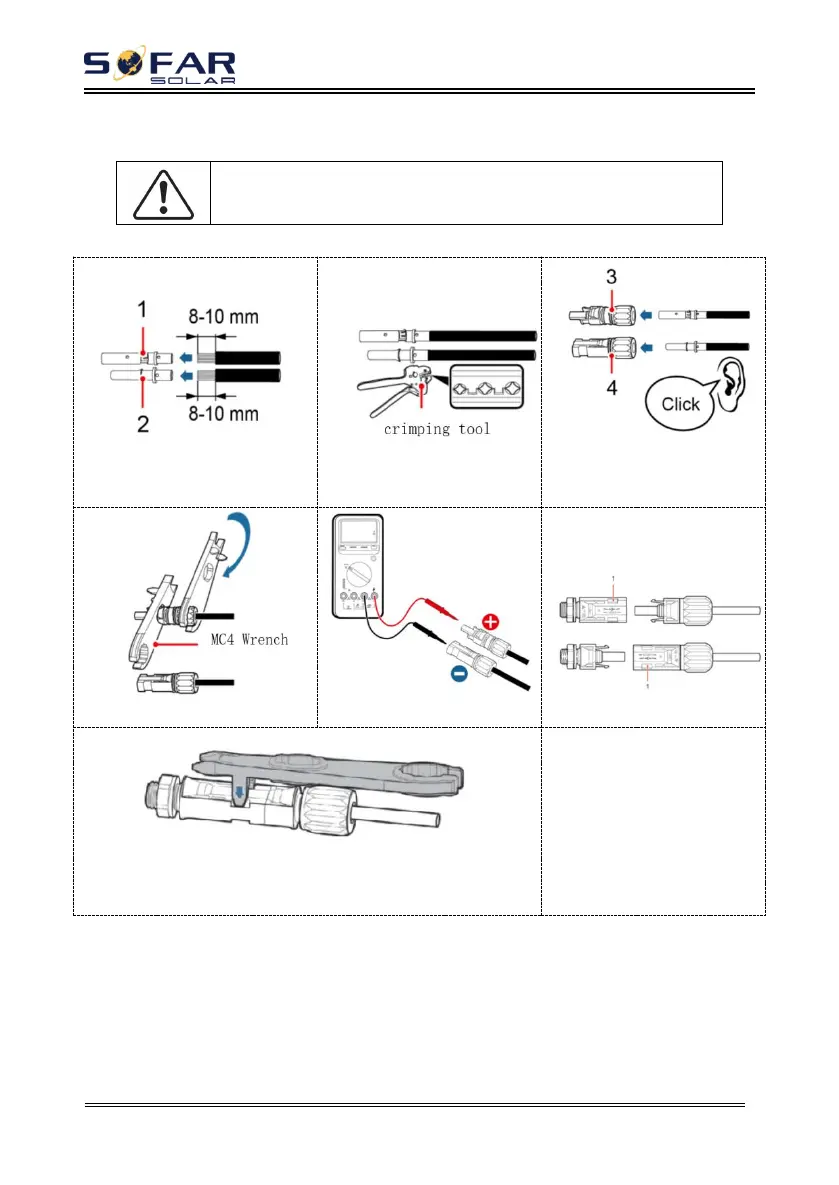

Fig.4-2 Connect Battery&PV

1: Positive metal contact

2: Negative metal contact ①

②

3: Positive connector

4: Negative connector ③

④

⑤

BAT:Blue

PV:Black

⑥

Disconnect PV connectors

⑦

4.4. Load connection

Procedure:

Step 1 Select the appropriate cable type and specifications according to the

table4-3.Refer to Fig.4-3

①

for processing wire.

Step 2 Pass the wire through the terminal, as shown in Fig.4-3

②.
