HYD 5-20KTL-3PH User manual

- 31 -

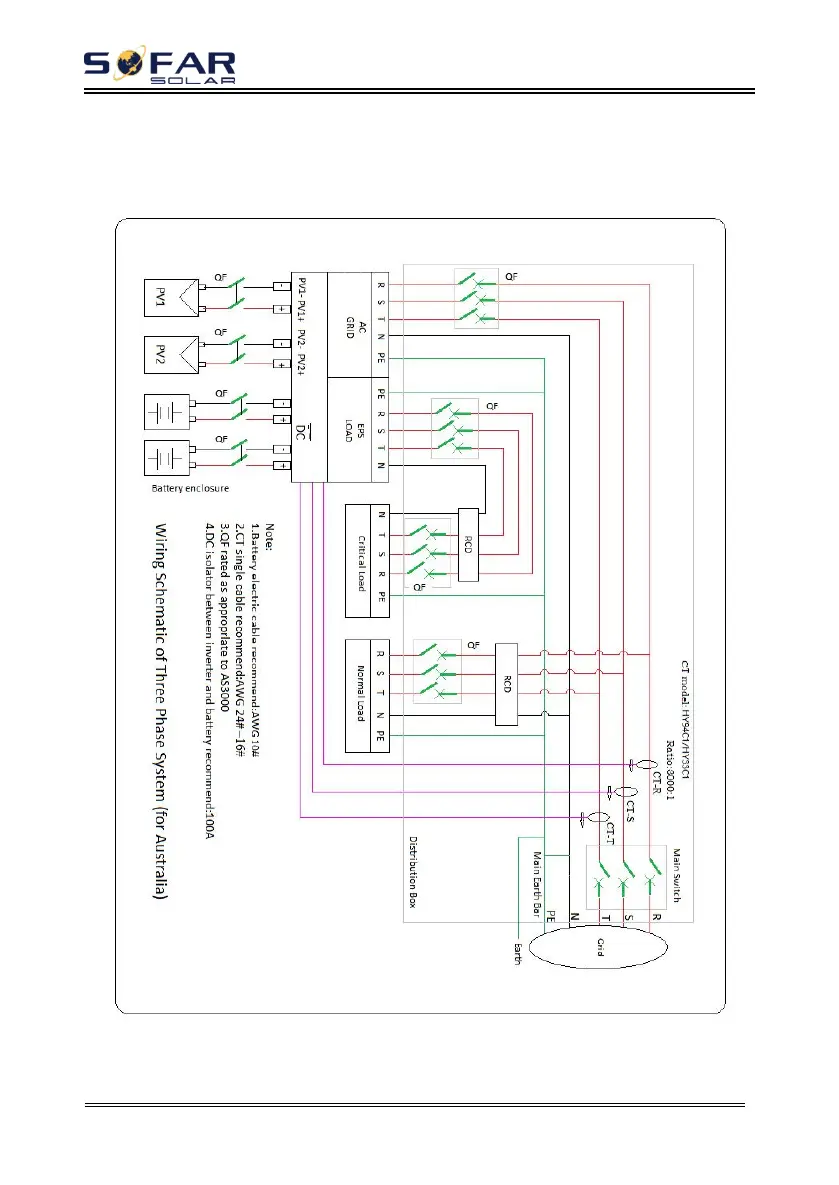

Fig. 4-15 Electrical connections (Plan A:CT)

There are two situations when CT is installed. One is to connect in the correct CT direction. The

direction should refer to the figure below, from the inverter to the power grid. One is the random CT

direction, and then the use of CT calibration function for calibration. CT calibration procedures refer to

this manual 6.3.2>>8.CT calibration.
