B. Communication between multiple inverters :
1. RS485
RS485 wires are connected in parallel between inverters, Connect the RS485+
and RS485- of the inverter to the TX+ and TX- of the RS485 → USB adapter;
connect the USB port of the adapter to the computer. (NOTE ： When multiple
inverters are connected via RS485 wires, set communication address to
differentiate the inverters ， please refer to this manual<6.3.1System
setting→8.Communication Addr>)

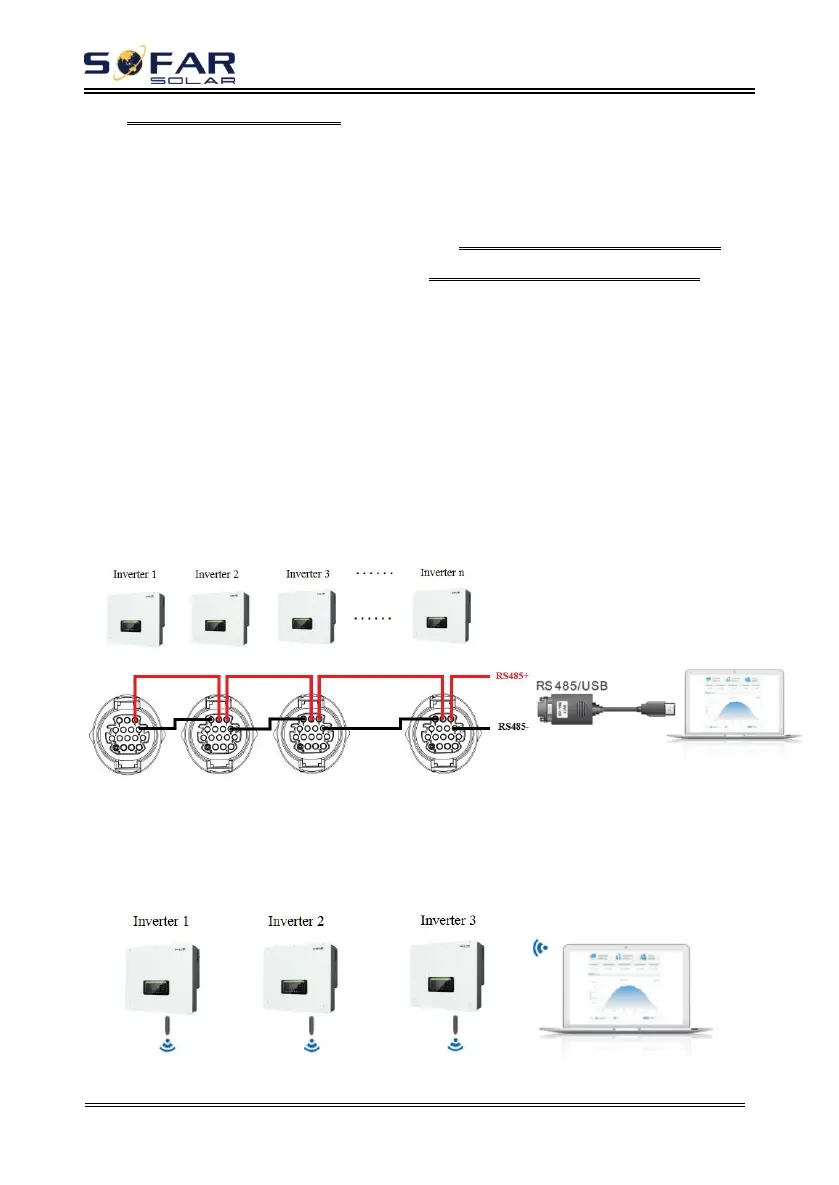

Fig 4-19
2. WI-FI/GPRS
Refer to the figure shown below, the monitoring mode is the same as that of a
single unit.
Fig 4-20
