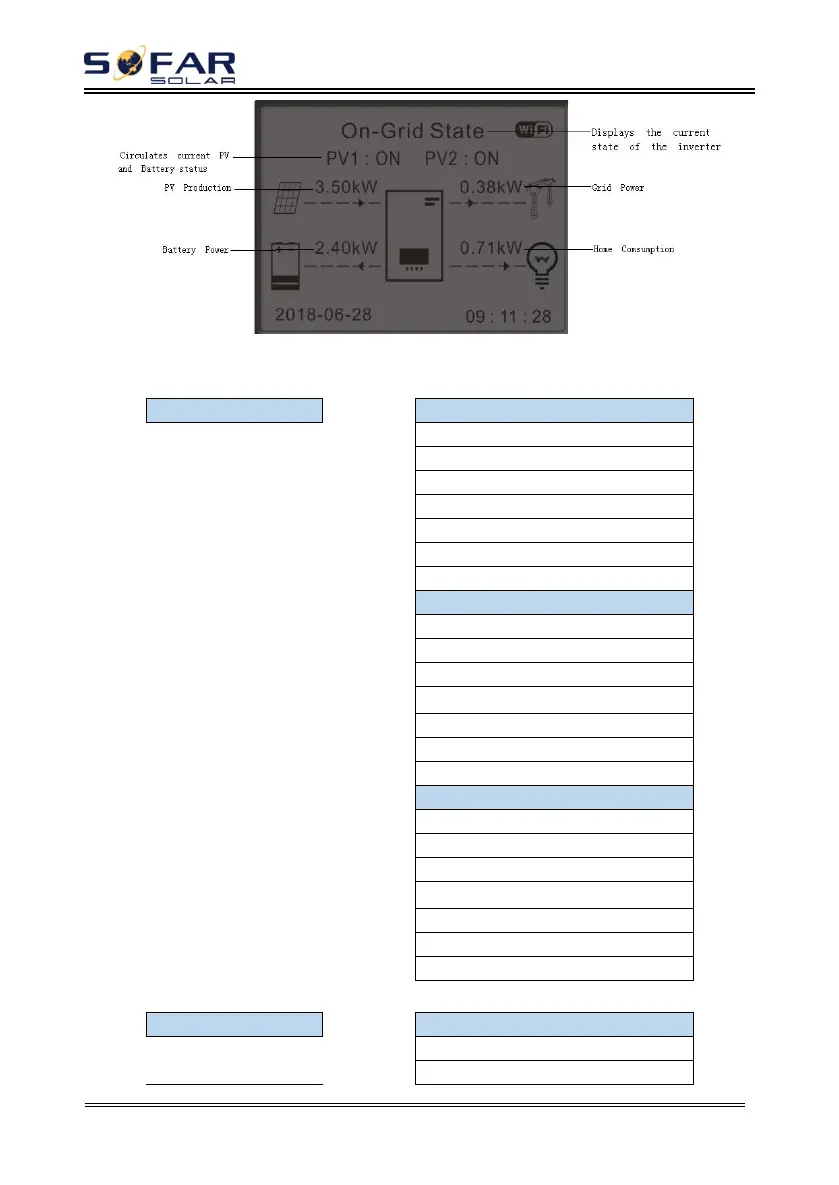

In the main interface, press “Down” button to enter grid/battery parameters
page.
Main interface
Down↓
Grid Output Information
Grid(V) R......................***.*V
Grid(V) S.......................***.*V
Grid(V) T.......................***.*V
AC Current R................**.**A
AC Current S................ **.**A
Down ↓
AC Current T.................**.**A
Frequency....................
.
**.**Hz
Battery Information (1)
Batt1 (V)......................****.*V
Batt1 Curr......................**.**A
Batt1 Power.................**.*KW
Batt1 Temp..........................*℃
Batt1 SOC..........................**%
Batt1 SOH..........................**%
Down↓
Batt1 Cycles.........................*T
Battery Information (2)
Batt2 (V)......................****.*V
Batt2 Curr......................**.**A
Batt2 Power.................**.*KW
Batt2 Temp..........................*℃
Batt2 SOC..........................**%
Batt2 SOH..........................**%
Batt2 Cycles.........................*T
In the main interface, press “UP” button to enter PV parameters page.
Main interface
Up↑
PV Informatioon
PV1 Voltage.................****.*V
PV1 Current...................**.**A
