SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
32

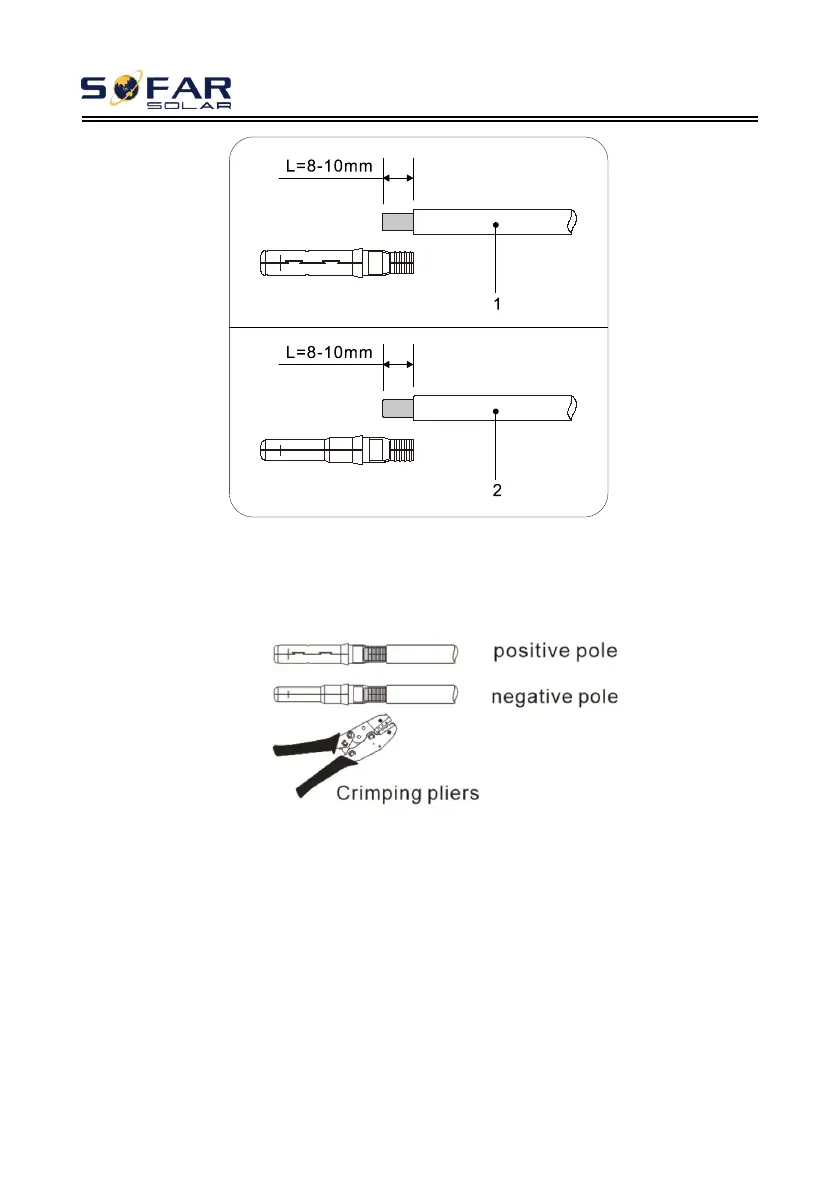

Figure 5-10 DC cable connection（1）
Step 2: Crimp the PV metal contact pin to the striped cable using a proper crimping
pliers;
Figure 5-11 DC cable connection(2)
Step 3: Insert wire into the connector cap nut and assemble into the back of male or
female plug, When you heard a “click”, the pin tact assembly is seated correctly. (3.
Positive Connector, 4. negative connector);
