SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.

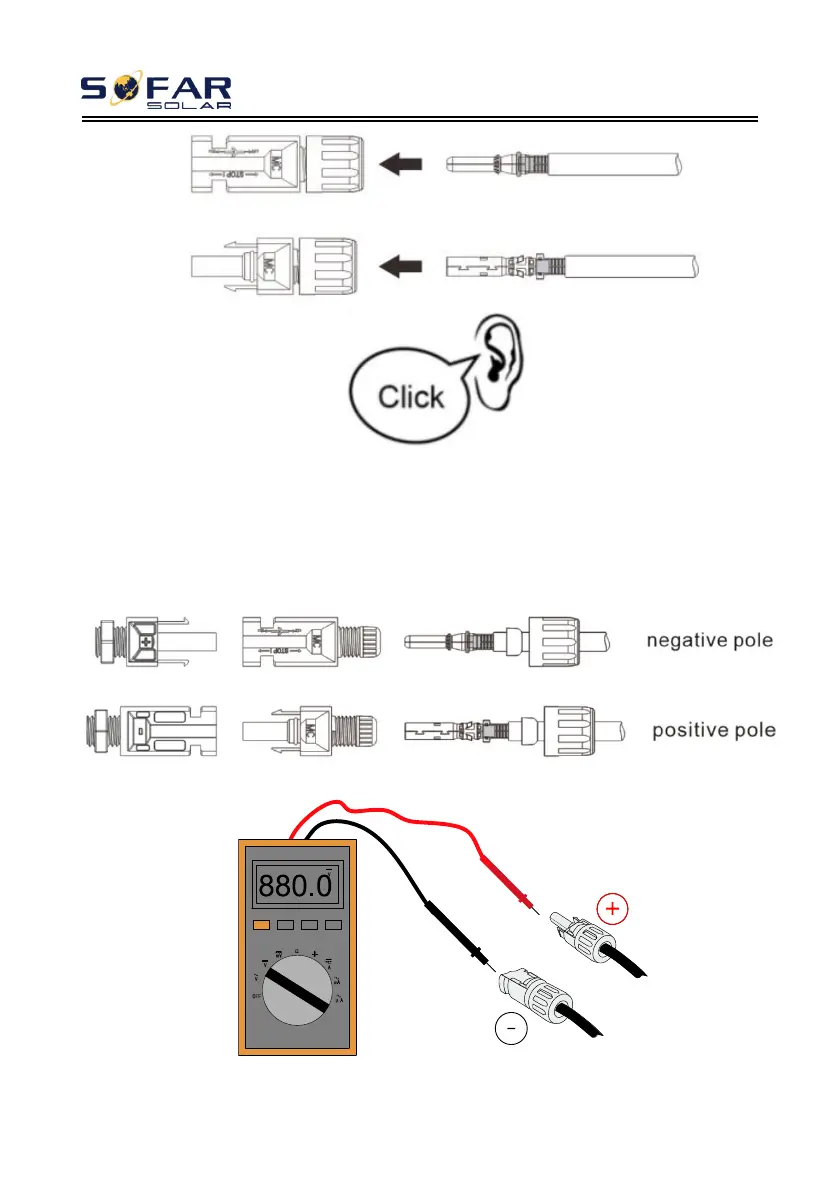

Figure 5-12 DC cable connection(3)
Step 4: Measure PV voltage of DC input with multimeter, verify DC input cable
polar and connect DC connector with inverter until hearing a slight sound indicated
connection succeed.
Figure 5-13 DC cable connection(4)
Figure 4-15 Use a multimeter to check the positive and negative electrodes
