Softing PBpro ETH - Page 27

Chapter 3 - PBpro ETH Administration
PBpro ETH - User Guide
27

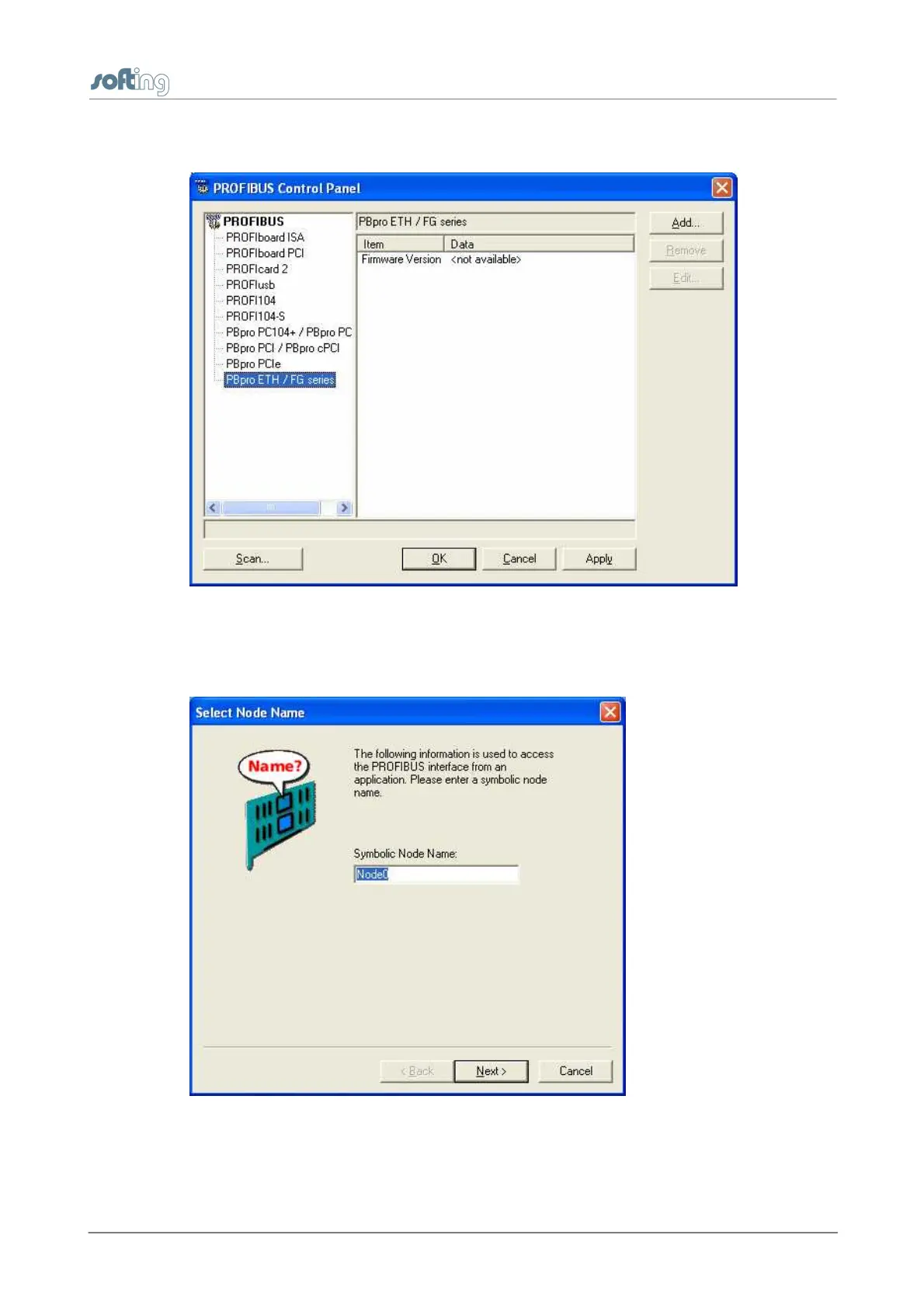

2. Select PBproETH / FG series and click Add:
Figure 10: Device Configuration
3. A dialog is opened allowing to enter/modify symbolic naming of a PROFIBUS channel:
Figure 11: Symbolic Node Name
