Chapter 2 - Installation
8
PBpro ETH - User Guide
2 Installation
2.1 Mounting
The PBpro ETH is intended for mounting on TS35 DIN carrier rails (EN 50022) installed
in control cabinets.
The PBpro ETH is convection-cooled. It therefore needs to be installed in such a way
that the ventilating ducts are at the top and bottom of the unit.
Ensure a ventilation space of at least 30 mm above and below the PBpro ETH.
2.2 Electric connection
Following a schematic of the front panel of the PBpro ETH:

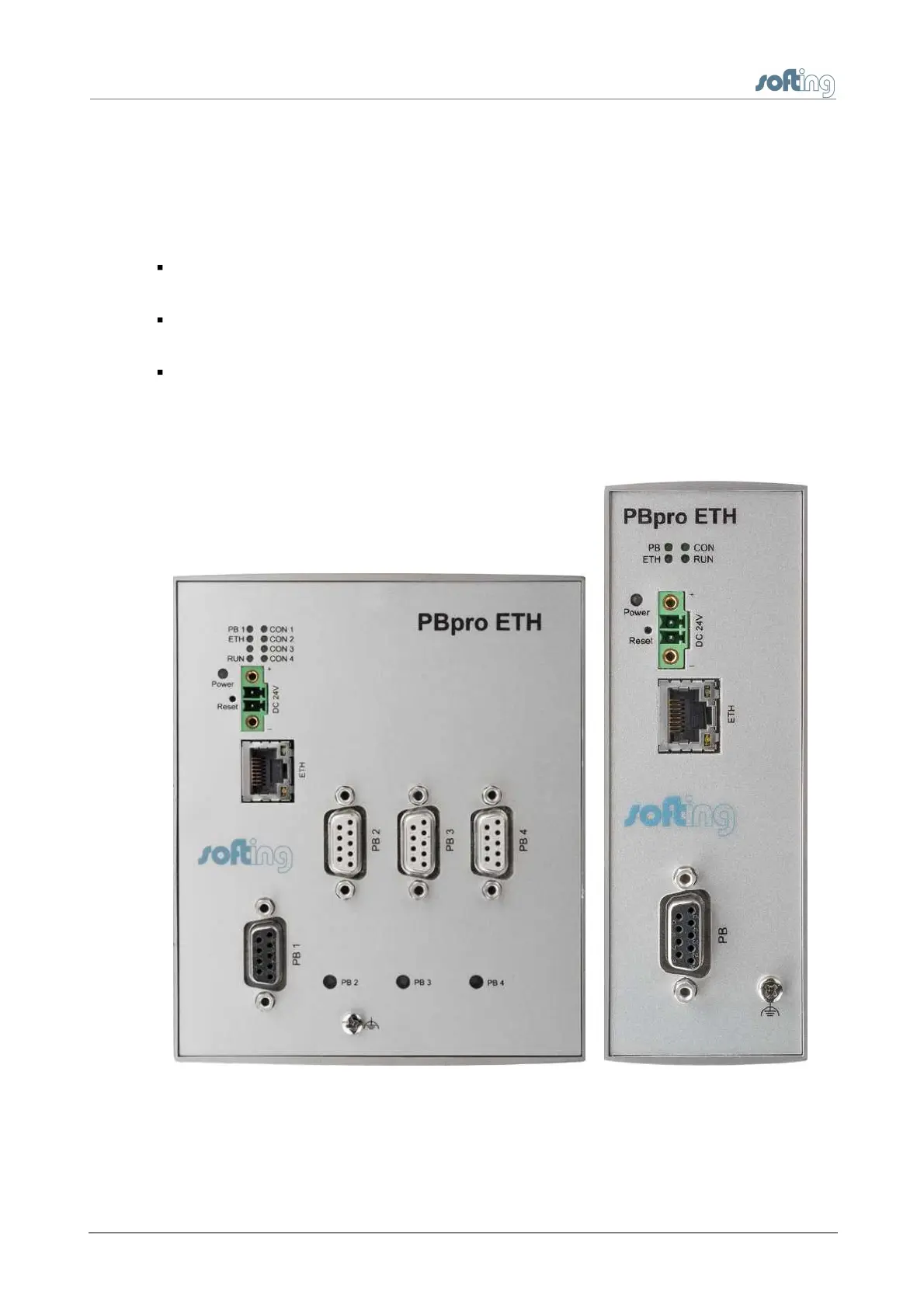

Figure 1: Front panels of the PBproETH
