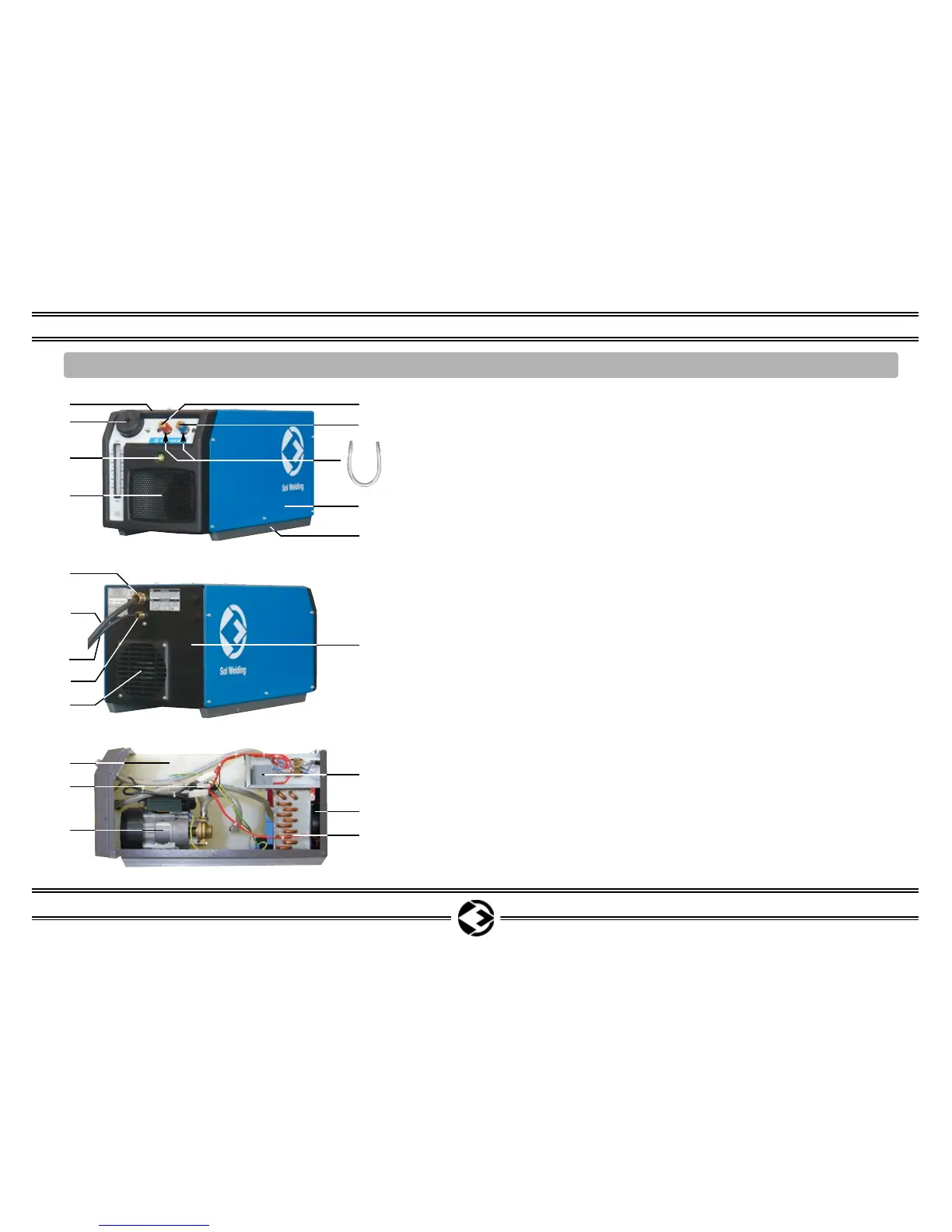

11. SPARE PARTS LIST / LISTA PEZZI COOLER UNIT 09
1
2
3
4
5
6
7
14
9
10
11
12
13
15
16
17
18
19
7
8
POS. C.S. CODE Q.ty DESCRIPTION DESCRIZIONE
1 - B166AT 1 Water in-let / out-let Attacco rapido rosso
red pressure Socket ingresso / uscita acqua
1A - V11390KI 1
Kit tube “By-pass” Kit tubo “By-pass”
2 - B165AT 1 Water in-let / out-let Attacco rapido blu
blue pressure Socket ingresso / uscita acqua
3 - C1036CA10S 1
Blue cover Capotta blu
4 - D405ST 2 PVC support Staffa in PVC
5 - C971GR01 1 Frontal grid Griglia frontale
6 LAMP K037LS 1
Yellow lamp 230V lampada gialla 230V
7 - D406SE 1 Plastic Tank Serbatoio in plastica
8 - D404PF 1 Plastic front panel Pannello frontale in plastica
9 - C1035BA01 1
Black base Basamento nero
10 - D335GR 1 Plastic grid Griglia in plastica
11 - D012PC 2 Brass cable tightening Passacavo ottone 1/4"
clamp 1/4’’
11 - D013DA 2 1/4’’ brass nut for Dado per pressacavo 1/4"
tightening clamp
12 - F148CM 1MT 2 poles cable Cavo 2 poli
13 X2 F091CA 1MT Power supply cable Cavo di alimentazione
14 - D141PC 2 Brass cable tightening Passacavo ottone 1/2"
clamp 1/2’’
14 - D142DA 2 1/2’’ brass nut for Dado per pressacavo 1/2"
tightening clamp
15 T1 M337TA 1 Transformer 230-400V Trasformatore 230-400V
16 FAN1 K098EV 1 Fan motor AC 230V Motoventilatore AC 230V
17 - K276RA 1 Radiator Radiatore
18
(*) PUMP K274EP 1 Pump AC 400V Pompa AC 400V
19 WSH K275FL 1 Inhibit water switch Flussostato mancanza
acqua
(*) = Suggested spare parts / Ricambi consigliati
