SOLAR ELECTRONICS COMPANY
5/14/07
Application note:
Waveform 5A (40 µS x 120 µS) +/-20%
DO160 SECTION 22 single stroke
Pin injection up to Level 4
Cable bundle (ground injection) up to Level 3.
Pin injection-
Open circuit voltage is measured using a x100 voltage probe. Verify the waveform meets the requirement for time
to crest and duration. The generator source impedance is checked by installing a 1 ohm resistor across the output of
the generator and verifying that the voltage drops to half the open circuit voltage +/- 10%.

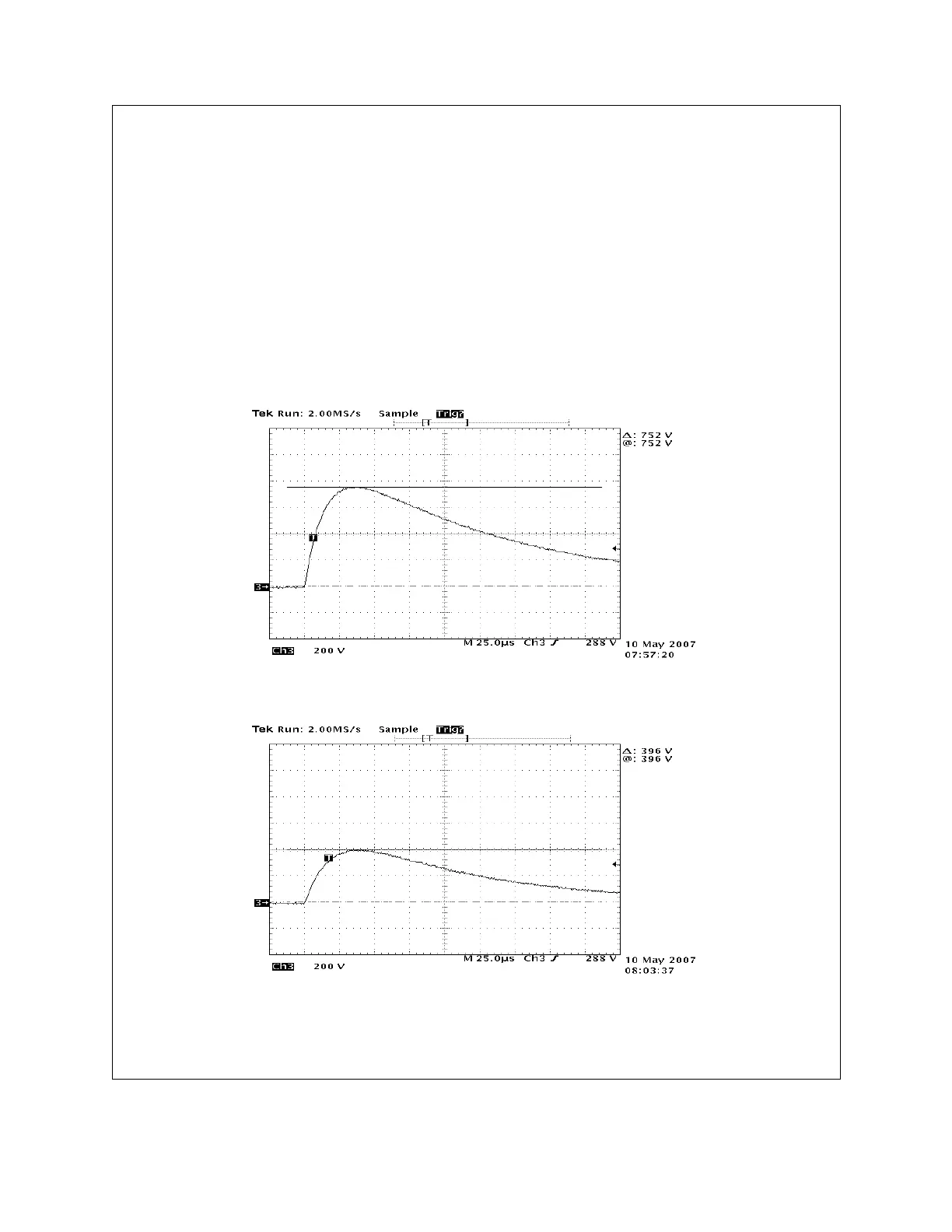

Open circuit voltage
Generator source impedance verification
