6
The inverter can either support 4 wire + PE or 3 wire + PE connection
One-hole, standard barrel,
compression lugs only, 600V
2
1
3
4
5
15.4 lb.*ft.
Overcurrent protection for the AC output must be provided by others, see manual for guidance
Connect PE
wire first
• For aluminum wires, USE
ONLY aluminum lugs
• For copper wires, USE ONLY
copper tin-plated lugs

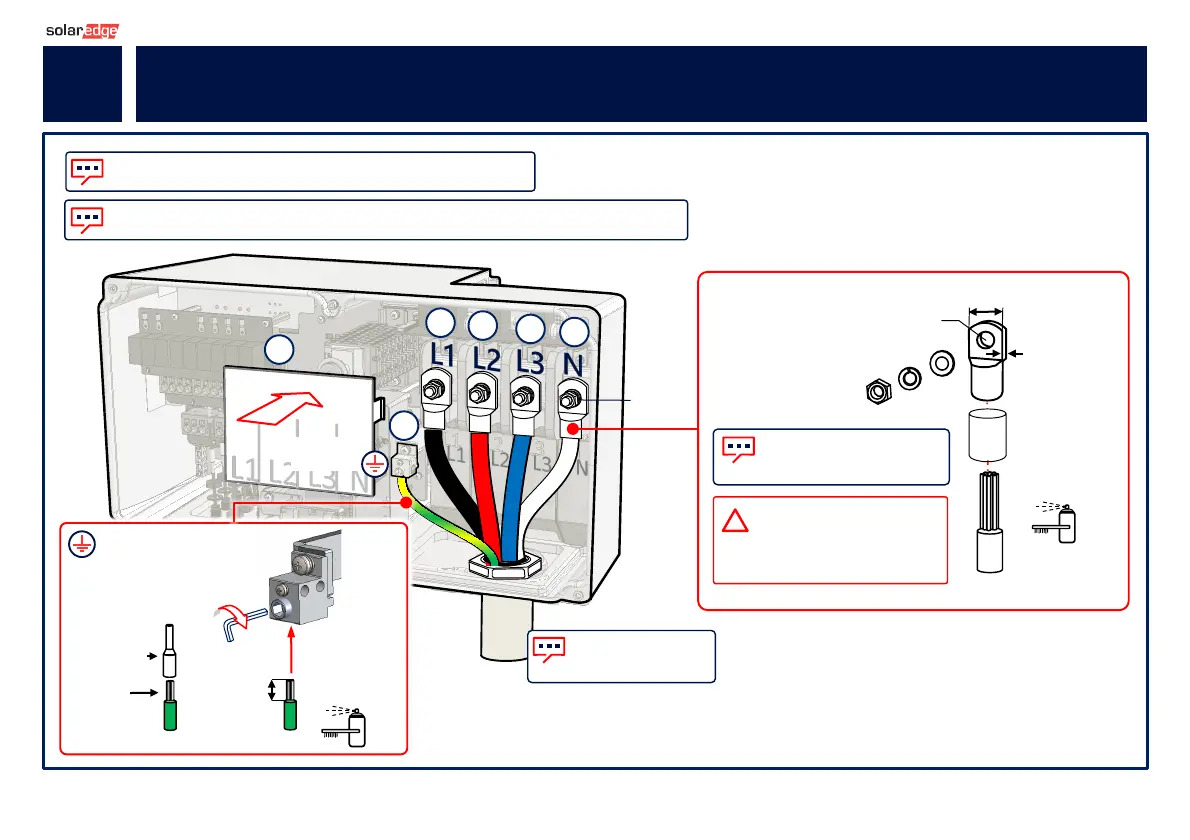

Connecting AC and Protective Earth
9
Max 1.39” / 33 mm
Max: 4/0 AWG
Max thickness
0.27” / 7mm
Ø 0.5” / 10 mm
Heat shrink
insulation
12 MAN-01-00786-1.3
0.4 - 0.43“ /
10 -11 mm
PE Wire
Ground conduit nut if
required by regulation
Max: 1/0 AWG
10 – 4 AWG: 3.7 lb.*ft
3 – 1/0 AWG: 5.9 lb.*ft
Ferrule
Fine
stranded
To Next Page
