SolarEdge SE K Series - General Safety Warnings and Cautions

Avoid wobbly installation by
adding back support
6 MAN-01-00786-1.3
2
1
Optional
Optional

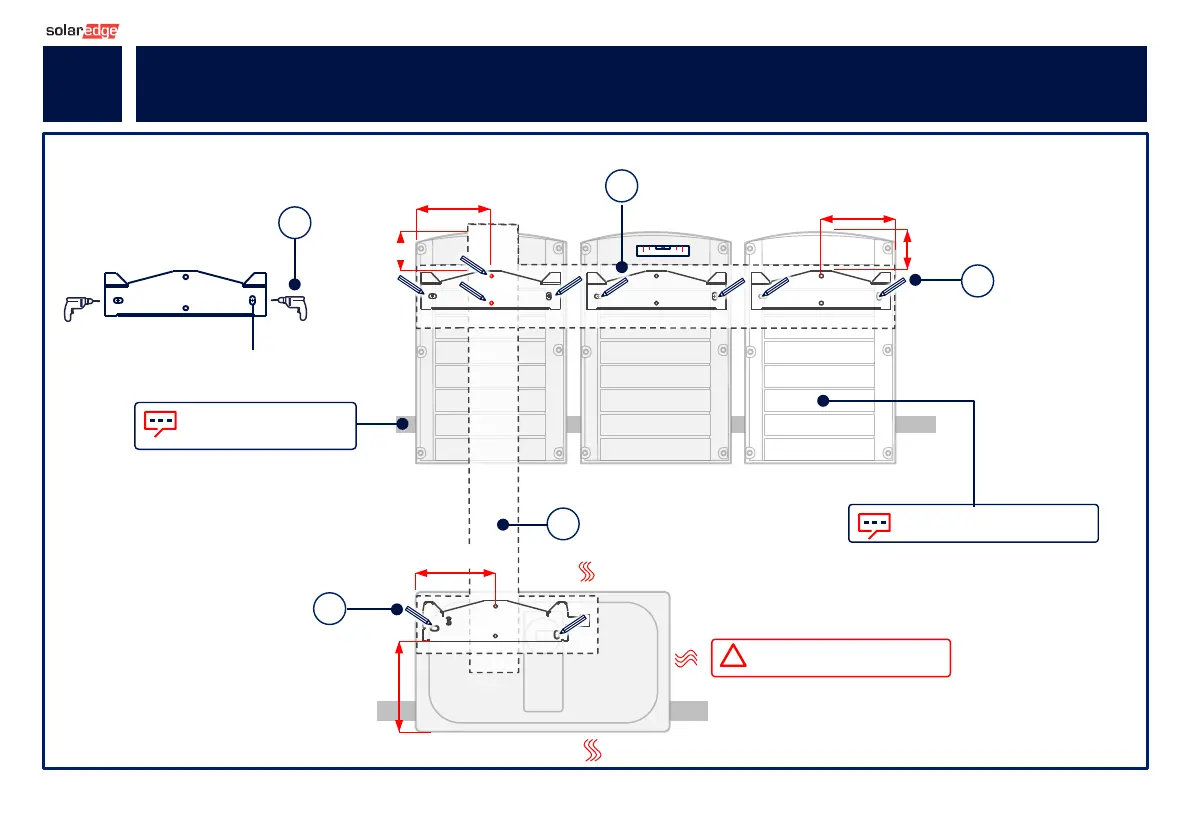

Marking & Drilling Holes
4
3
Level provided template horizontally
Position provided template vertically
4
Mark holes
Mark holes
5
Optional unit - model dependent
Ø 9mm / 0.35”
Drill holes
6.53” / 16.6 cm
7.36” / 18.7 cm
6.1” / 15.5 cm
3.3” / 9.3 cm
CAUTION! Donot block airflow
6.1” / 15.5 cm
3.3” / 9.3 cm
