SolarEdge SE Series User Manual

CAUTION!
The gland includes a rubber waterproof fitting, which should be used to
ensure proper sealing.
3. Remove the plastic seal from one of the large opening.
4. Remove the rubber fitting from the gland and insert the CAT6 cable through the
gland and through the gland opening in the inverter.
5.
Push the cable into the cut opening of the rubber fitting.

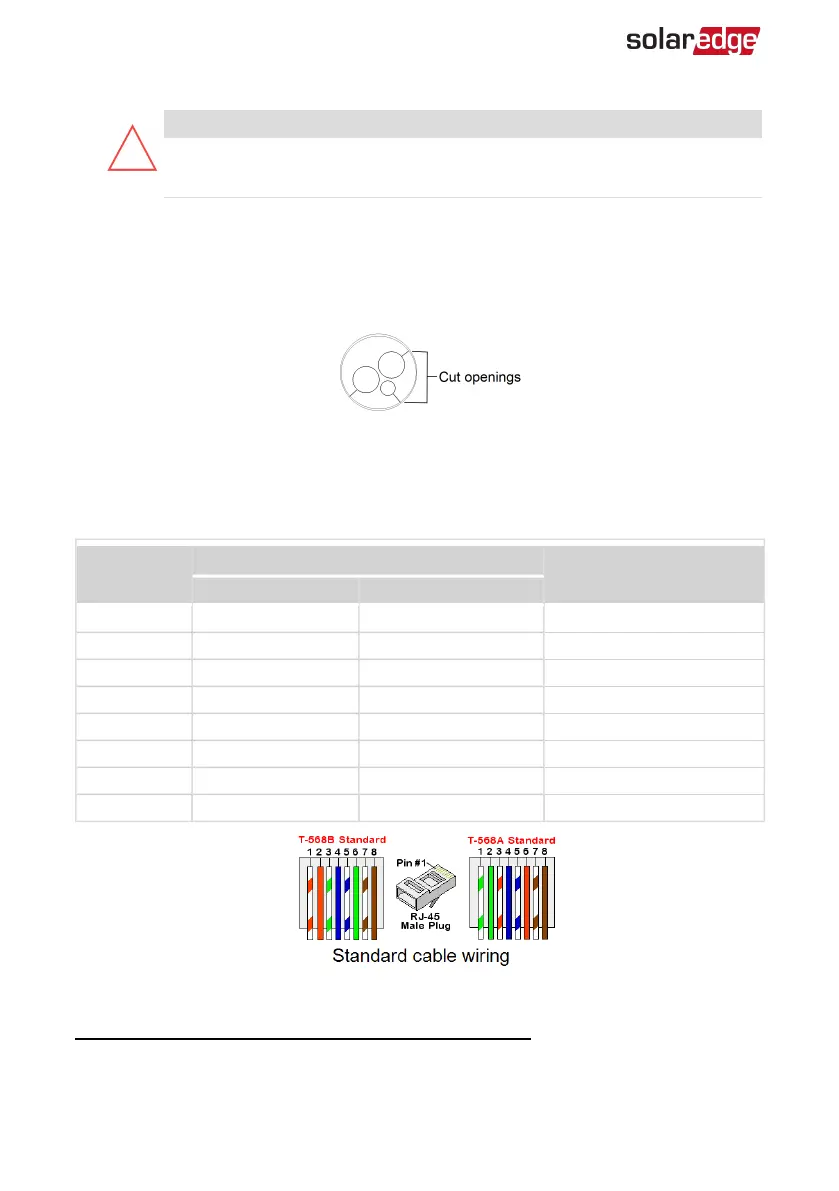

Figure 22: Rubber fitting
CAT6 standard cables have eight wires (four twisted pairs), as shown in the diagram
below. Wire colors may differ from one cable to another. You can use either wiring
standard, as long as both sides of the cable have the same pin-out and color-coding.
RJ45 Pin #
Wire Color
(1)
10Base-T Signal
100Base-TX Signal
T568B T568A
1 White/Orange White/Green Transmit+
2 Orange Green Transmit-
3 White/Green White/Orange Receive+
4 Blue Blue Reserved
5 White/Blue White/Blue Reserved
6 Green Orange Received-
7 White/Brown White/Brown Reserved
8 Brown Brown Reserved
Figure 23: Standard cable wiring
(1)
The inverter connection does not support RX/TX polarity change. Supporting crossover Ethernet cables
depends on the switch capabilities.
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
51 Creating an Ethernet (LAN) Connection

SolarEdge SE Series Specifications

General

Efficiency	Up to 99%
Protection Rating	IP65
Communication	Ethernet, Wi-Fi (optional), RS485
Dimensions	Varies by model
Weight	Varies by model
Rated AC Power	Varies by model
Max. DC Power	Varies by model
Model	SE Series (e.g., SE3000H, SE5000H)
AC Output Power	Varies by model
MPPT Range	Varies by model
Operating Temperature	-25°C to 60°C
Warranty	12 years standard, extendable to 20 or 25 years
