SolarEdge SE Series User Manual

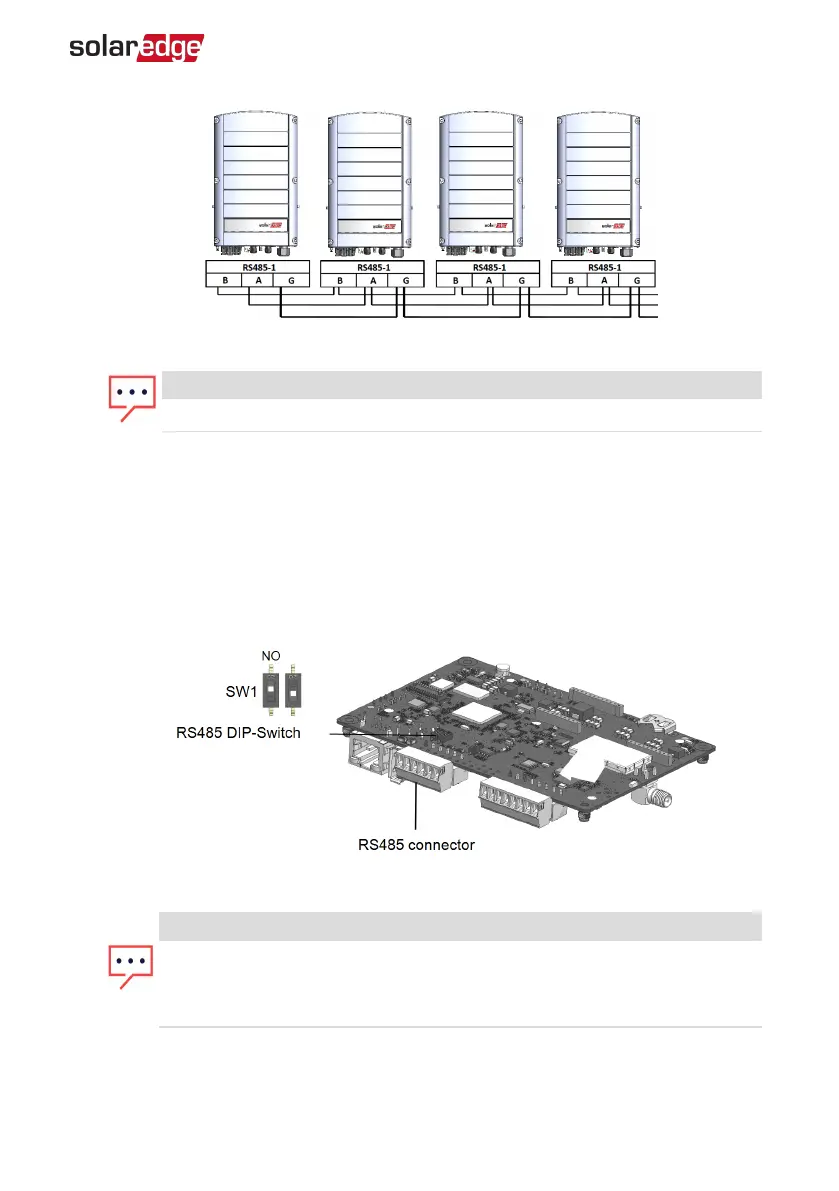

Figure 27: Connecting the inverters in chain
NOTE
Do not cross-connect B, A and G wires.
7. Tighten the terminal block screws.
8. Check that the wires are fully inserted and cannot be pulled out easily.
9.
Push the RS485 terminal block firmly all the way into the connector on the right side
of the communication board.
10.
Terminate the first and last SolarEdge device in the chain by switching a termination
DIP-switch inside the inverter to ON (move the left switch up). The DIP-switch is
located on the communication board and is marked SW1.
Figure 28: RS485 termination DIP-switch (SW1)
NOTE
Only the first and last SolarEdge devices in the chain should be terminated.
The other inverters in the chain should have the termination switch OFF
(down position).
Chapter 6: Setting Up Communication with the Monitoring Platform 56
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

SolarEdge SE Series Specifications

General

Efficiency	Up to 99%
Protection Rating	IP65
Communication	Ethernet, Wi-Fi (optional), RS485
Dimensions	Varies by model
Weight	Varies by model
Rated AC Power	Varies by model
Max. DC Power	Varies by model
Model	SE Series (e.g., SE3000H, SE5000H)
AC Output Power	Varies by model
MPPT Range	Varies by model
Operating Temperature	-25°C to 60°C
Warranty	12 years standard, extendable to 20 or 25 years
