SolarEdge SE5000 User Manual

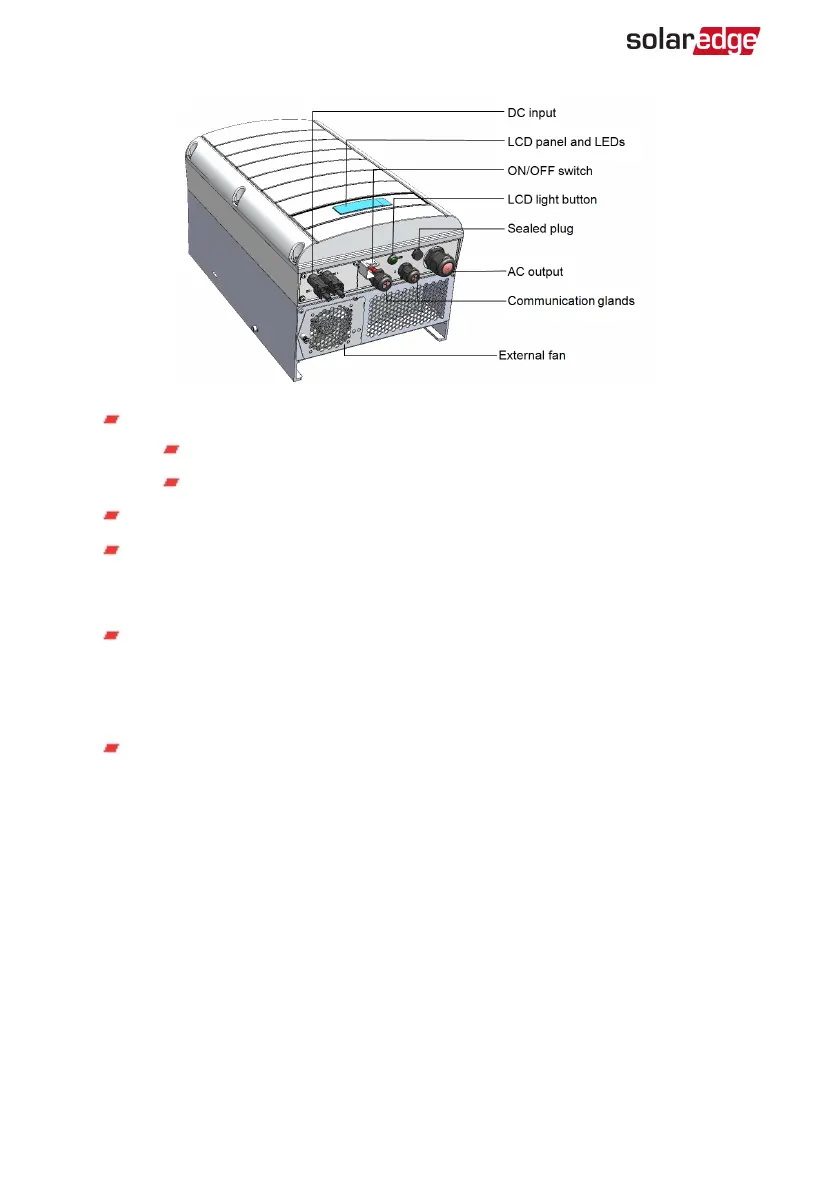

Figure 5: Inverter Interfaces
ACoutput: AC cable external gauge:
Single phase inverters: PG21 (9-16mmdiameter)
Three phase inverters: M32 (15-21mm diameter)
DC inputs: For connection of the PV installation
Two communication glands, for connection of inverter communication
options. Each gland has three openings. Refer to Setting Up Communication on
page 66 for more information.
LCD light button: Pressing this button lights up the LCD for 30 seconds. In
addition, you can press this button to view inverter status screens and access
configuration menu options, as described Configuring the Inverter Using the
LCD Light Button on page 48.
ON/OFF switch: Turning this switch ON (after the power optimizers are paired
with the inverter) starts the operation of the power optimizers, enables power
production and allows the inverter to begin exporting power to the utility grid.
Turning it OFF reduces the power optimizer voltage to a low safety voltage and
inhibits exportation of power. When this switch is OFF, the inverter control
circuitry remains powered up.
-Three Phase System Installation Guide MAN-01-00057-4.1
24 Inverter Interfaces

SolarEdge SE5000 Specifications

General

Model	SE5000
Manufacturer	SolarEdge
Category	Inverter
AC Output Power	5000 W
Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Rated AC Power	5000 W
Max. AC Power	5000 VA
Maximum Input Voltage	480 V
Number of MPP Trackers	1
Max. Input DC Voltage	480 V
Operating Temperature Range	-25°C to 60°C
AC Voltage	230 V
