SolarEdge SE5000 User Manual

Connecting the ACGrid to the Inverter
Use a five-wire cable for this connection. The maximum wire size for the input terminal
blocks is 16 mm².
To connect the AC grid to the inverter via the DC Safety Unit:
1. Turn OFF the following:
The inverter ON/OFFswitch
The AC circuit breaker
The DC Safety Unit
2. Open the inverter cover: Release the Allen screws and carefully move the cover
horizontally before lowering it.
CAUTION!
When removing the cover, make sure not to damage internal components.
SolarEdge will not be held responsible for any components damaged as a result
of incautious cover removal.

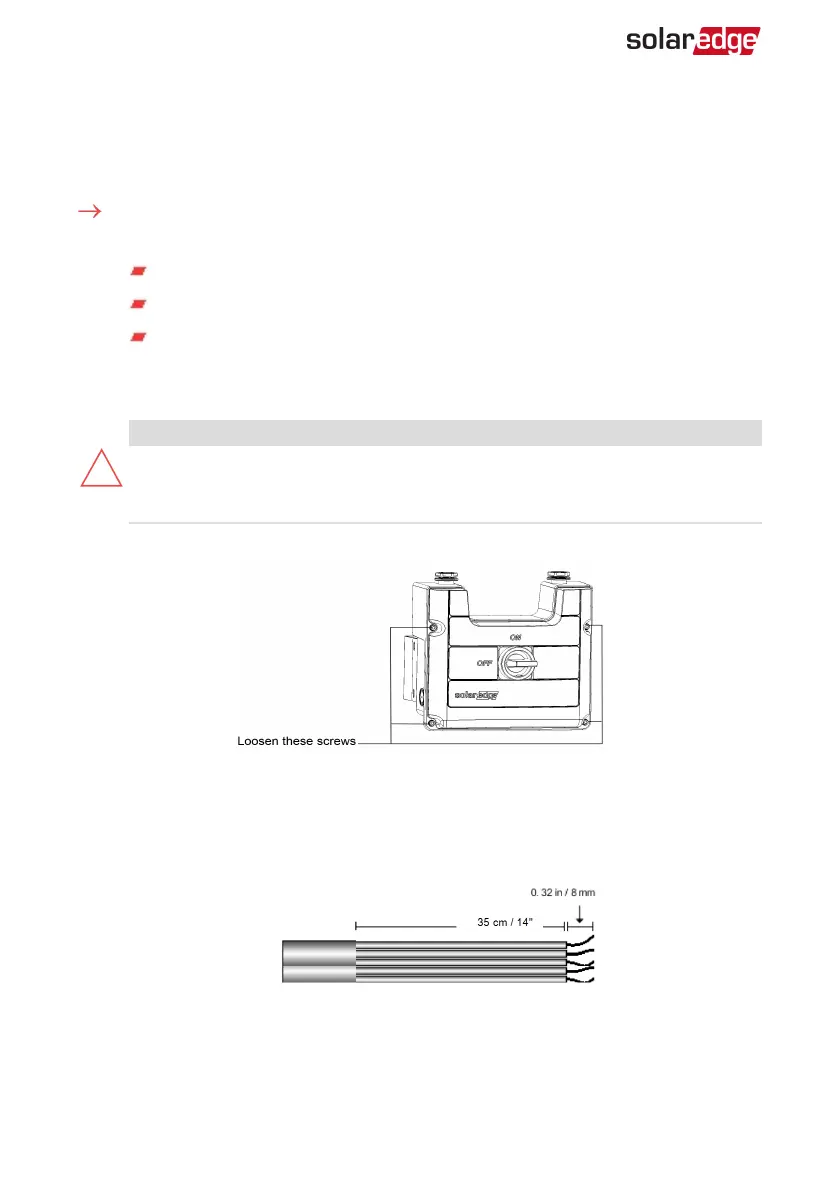

3. Loosen the screws on the front cover of the DC Safety Unit, as shown below:
Figure 32: Opening the DC Safety Unit cover
4. Remove the DC Safety Unit cover.
5. Strip 35 cm of the external cable insulation and strip 8 mm of the internal wire
insulation.
Figure 33: Insulation stripping – AC
6. Open the AC cable gland and insert the cable through the gland (see Figure 31 ).
-Three Phase System Installation Guide MAN-01-00057-4.1
86 Connecting the ACGrid to the Inverter

SolarEdge SE5000 Specifications

General

Model	SE5000
Manufacturer	SolarEdge
Category	Inverter
AC Output Power	5000 W
Efficiency	98.3%
Cooling	Natural convection
Protection Rating	IP65
Rated AC Power	5000 W
Max. AC Power	5000 VA
Maximum Input Voltage	480 V
Number of MPP Trackers	1
Max. Input DC Voltage	480 V
Operating Temperature Range	-25°C to 60°C
AC Voltage	230 V
