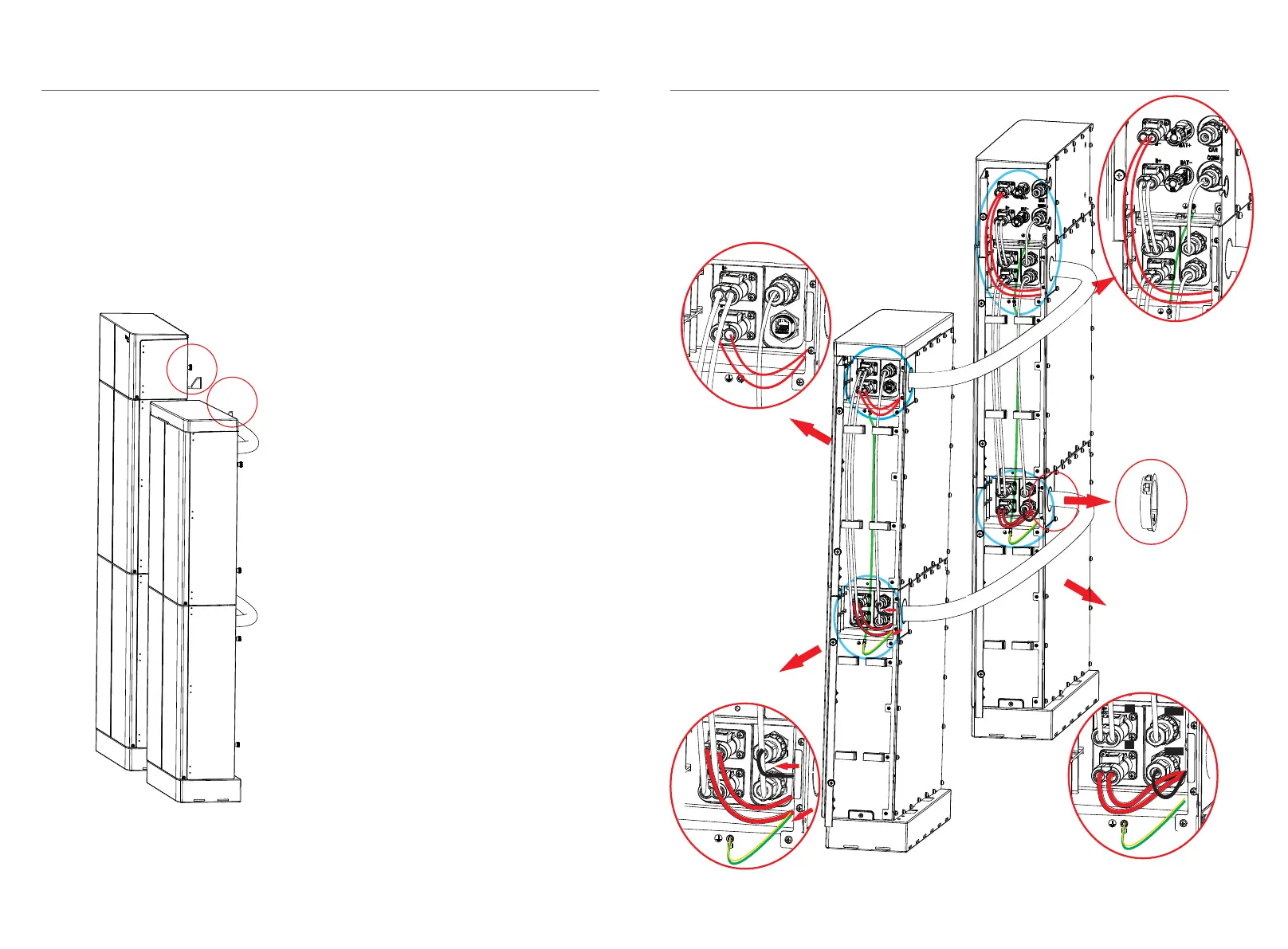

For four battery modules:
BMS to Slave1:
B+ to B+ (C:120mm);COMM to COM1
(E:200mm);
BMS to Slave4:
B- to B- (A3:1.2m), Get the cable through
corrugate pipe.
Slave1 to Slave2:
B- to B+ (A1:690mm);COM2 to COM1
(B1:600mm);
Slave2 to Slave3:
B- to B+ (A2:1.2m);COM2 to COM1 (B2:1.2m);
Slave3 to Slave4:
B- to B+ (A1:690mm) and COM2 to COM1
(B2:1.2m).
Get the cables through corrugate pipe.
Install a fixed wall bracket on the battery module, and thencheck to make
sure the connections are securely locked.
Slave3
Slave4
BMS
The slave3 or slave4 needs to be
grounded, and the user can connect the
groud cable to the slave2 or slave1
through the pipe or ground separately
according to the local regulations.
Ø
4. Installation
4. Installation
30
31
COM1
B+
COM2
B-
Slave1
Slave2
The two ends of the corrugated
pipes need to be protected
with guard rings.
To Next Page
