ZDNY-TL
10000
ZDNY-TL
12000
ZDNY-TL
15000
ZDNY-TL
17000
ZDNY-TL
20000

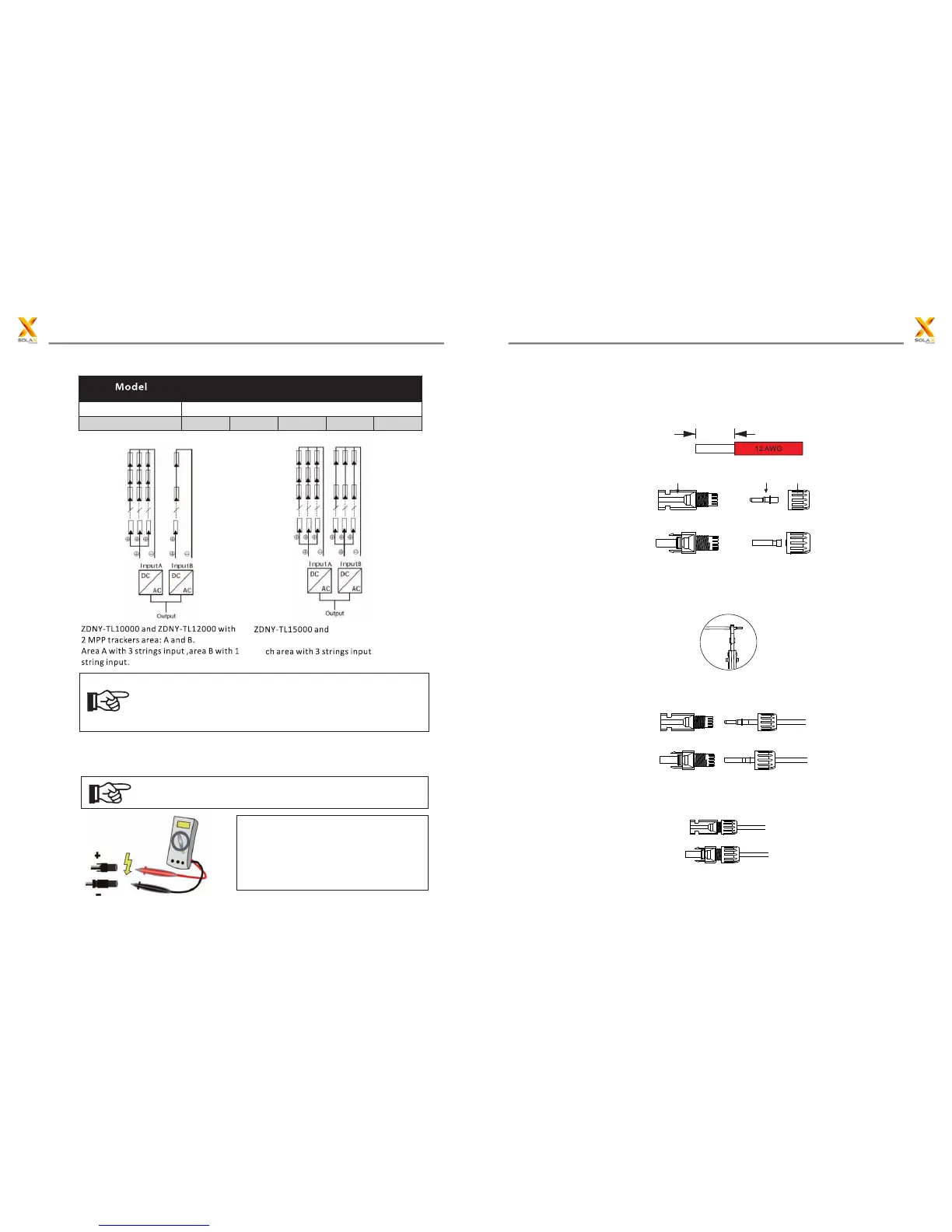

Max.DC input voltage(V)
MPPT voltage range(V)
1000
320-800380-800350-800400-800480-800
ZDNY-TL17000 and ZDNY
-TL
20000 with 2 MPP trackers area A and B
ea
The following requirements of PV modules need to be applied for
each input area;
• Same type • Same quantity • Identical alignment • Identical Tilt
NOTE!
Please use PV cable to connect modules to inverter. From junction box to inverter,
voltage drop is about 1-2%. So we suggest the inverter install near PV module,
in order to save cable and reduce DC loss. (No longer than 30m)
Please do not make PV positive or negative ground!
NOTE!
• Use multimeter to measure module
array voltage
• Check the PV+ and PV- from the PV
string combiner box correctly.Make
sure the PV+ and PV- connected
correctly.
6.0mm
trip length
●Connection Step:
1. Disconnect the DC switch.
2. Choose the 12 AWG wire to connect the PV module.
3. Trip 6mm of insulation from the Wire end.
4. Separate the DC connector as below.
D +
D -
plug pin contact cable nut
5. Insert striped cable into pin contact and ensure all conductor strands
are captured in the pin contact.
6. Crimp pin contact by using a crimping pliers. Put the pin contact with striped
cable into the corresponding crimping pliers and crimp the contact.
7Insert pin contact through the cable nut to assemble into back of the .
male or female plug. When you feel or heard a “click” the pin contact
assembly is seated
8. Tight the DC connector.
a. Slide the cable nut towards the back shell.
b. Rotate the cable nut to secure the cable.
9. After securing the cable tightly, align the 2 half connectors and mate them
together
21
20
5 Installation5 Installation
