E95 ASSEMBLY
INSTRUCTIONS
LOWER
HANDLEBAR ARMS

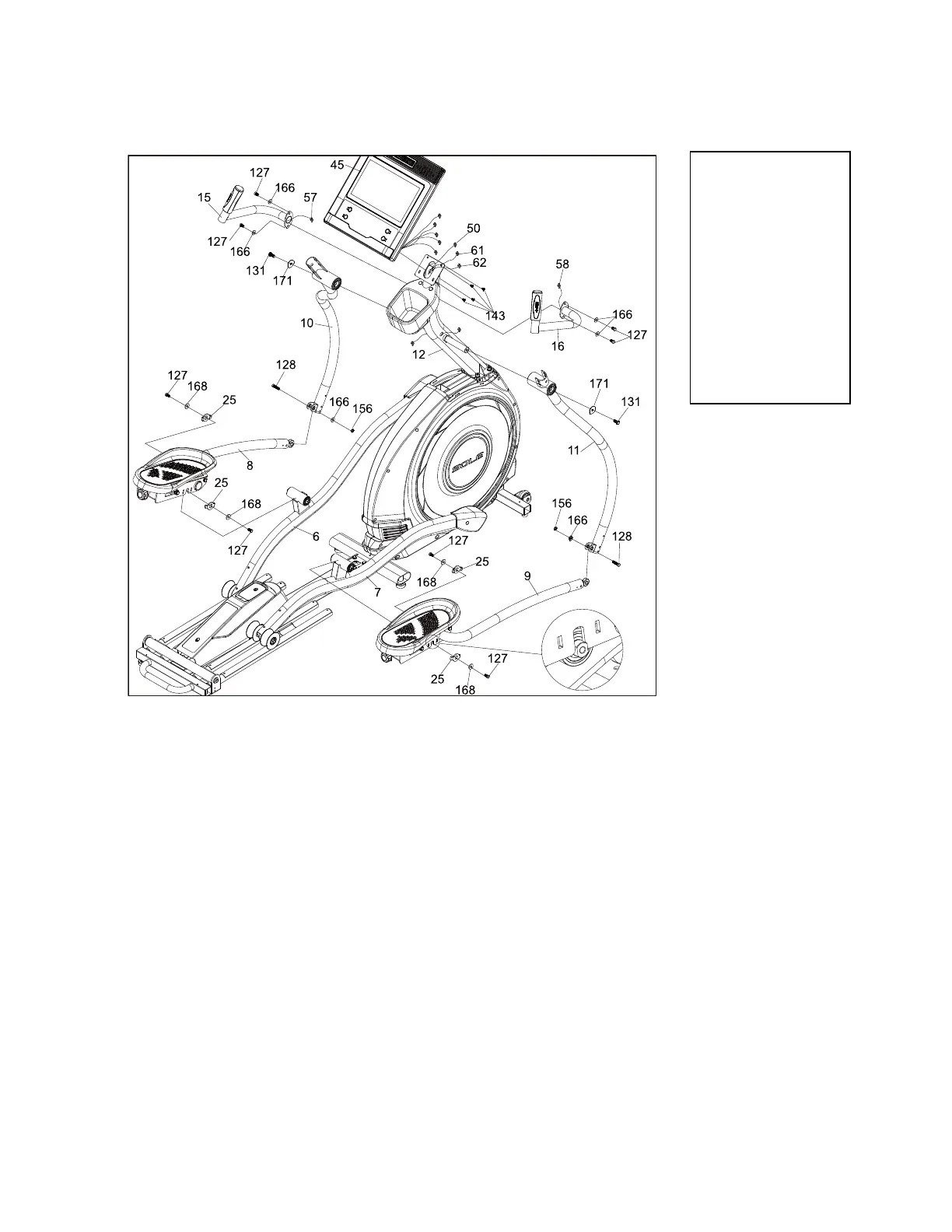

1. Align the plate of Pedal Bar Assembly (L) (8) and the foot pad axle of Left Pedal Arm
(6), then put it in it. Secure the Fixing Axle (25) with 2pcs Flat Washer (168) and,
2pcs Hex Head Bolt (127) by using a Wrench (184). Same way to secure the Pedal
Bar Assembly (R) (9) on the Right Pedal Arm (7).
2. Install the left and right Lower Handlebar (10) (11) onto the left side and right side
of the Console mast shafts, respectively and secure with Hex Head Bolts (131)
together with Flat Washers (171) by using Wrench (183).
3. Untie the rod end bearing on the Pedal Bar Assembly (L) (8). Insert Hex Head Bolt
(128) through the rod end bearing bracket on Lower Handlebar (L) (10) and use a
wrench (183&184) to tighten together with Flat Washer (166) and Nylon Nut (156)
in the rod end bearing bracket on the lower Handlebar left (10). Fix the Lower
Handlebar (R) (11) and Pedal Bar Assembly (R) (9) in the same way and hardware.
4. Run the Handpulse W/Cable (57) from the Left Handpulse Assembly (15) through
the left round hole of the console mast and pull out Handpulse W/Cable (57) to the
top from console mast. Secure to the console mast left side with 2pcs Hex Head Bolt
(127) and 2pcs Flat Washer (166) by using Wrench (184). The same way to run the
Handpulse W/Cable (58) from the Right Handpulse Assembly (16) through the right
round hole of the console mast and pull out the Handpulse W/Cable (58) to the top
from console mast, and secure to the console mast right side.
5. Plug all of the connectors into the back of the console; Computer Cable (50), two
Hand pulse Cables (57&58), Resistance handle wire (61) and Incline handle wire
(62). Secure the Console (45) on the console mounting plate with 4pcs Phillips Head
Screws (143) by tightening them with Phillips Head Screwdriver (181).
Hex Head Bolt (8 pc)
#128. 5/16" × 1-1/4"_
Hex Head Bolt (2 pc)
#131. 3/8" × 3/4"_
Hex Head Bolt (2 pc)
#143. M5 × 10mm_
Phillips Head Screw (4 pc)
#156. M8 × 7T_
Nylon Nut (2 pc)
#166. Ø5/16" × Ø20 ×
1.5T_ Flat Washer (6 pc)
#168. Ø5/16" × Ø23 × 3T_
Flat Washer (4 pc)
#171. Ø3/8" × 30 × 2.0T_
To Next Page
