TOP
HANDLEBARS

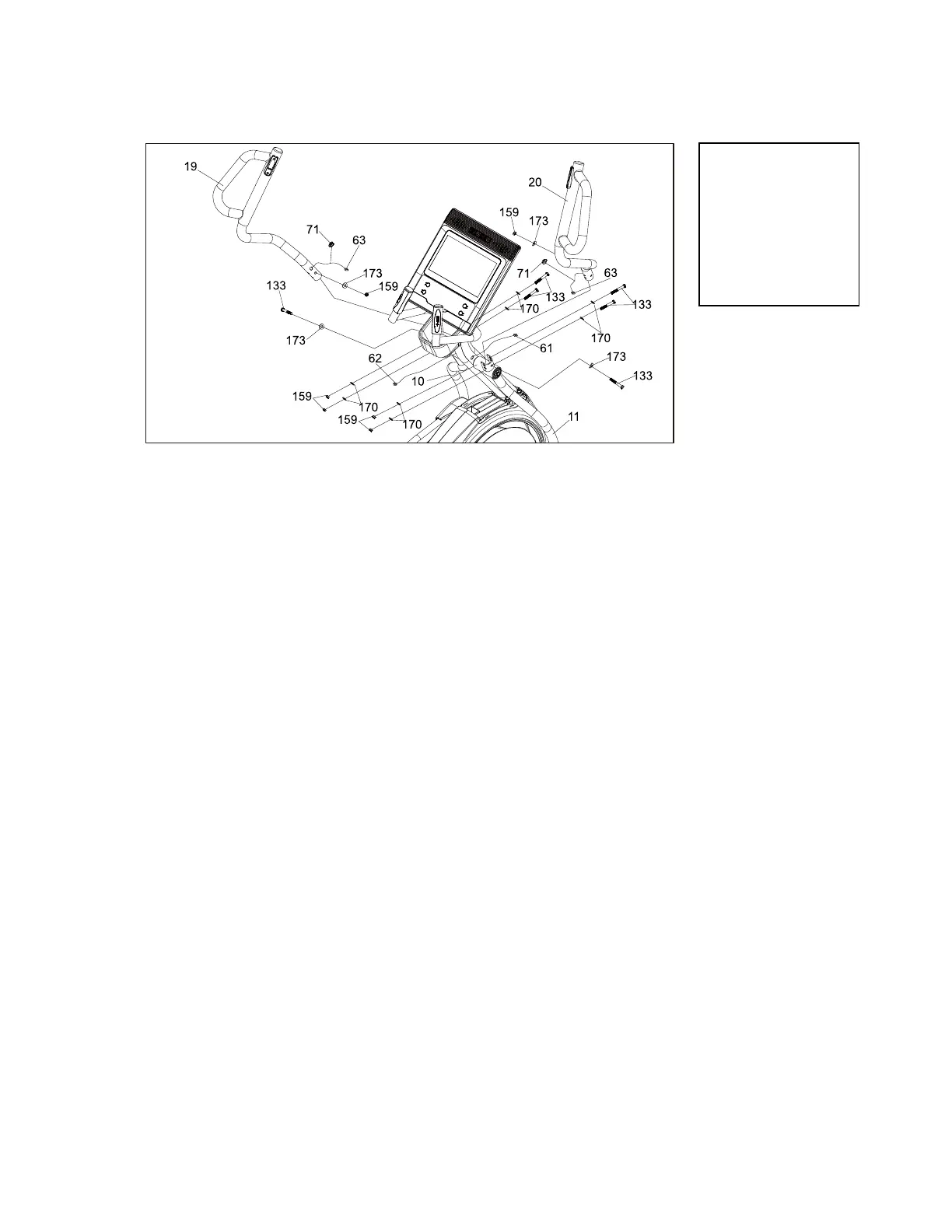

1. Insert the left Top Handlebar (19) onto the left Lower Handlebar and secure
with 3pcs Hex Head Bolts (133), and 4pcs Flat Washers (170), 2pcs Curved
Washers (173) and 3pcs Nylon Nuts (159) by using 2 Wrench (183&184). The
same way to secure the right Top Handlebar (20) on the right Lower Handlebar.
2. Connect the Upper Resistance Handle Wire (61) with the Lower
Resistance/Incline Handle Wire (63) store it in the frame tube and snap in the
Switch Wire Cap (71) on the console mast. Again, connect the Upper Incline
Handle Wire (62) with the Lower Resistance/Incline Handle Wire (63) and store
it in the frame tube. Snap-in Switch Wire Cap (71) on the console mast.
(2 pc)
#133. 3/8" × 2-1/4"_
Hex Head Bolt (6 pc)
#159. 3/8" × 7T_
Nylon Nut (6 pc)
#170. Ø3/8" × Ø19 × 1.5T_
Flat Washer (8 pc)
#173. Ø3/8" × 23 × 2.0T_
To Next Page
