E95 ELLIPTICAL
Customer service 1-888-707-1880
Email: customerservice@dyaco.ca
4

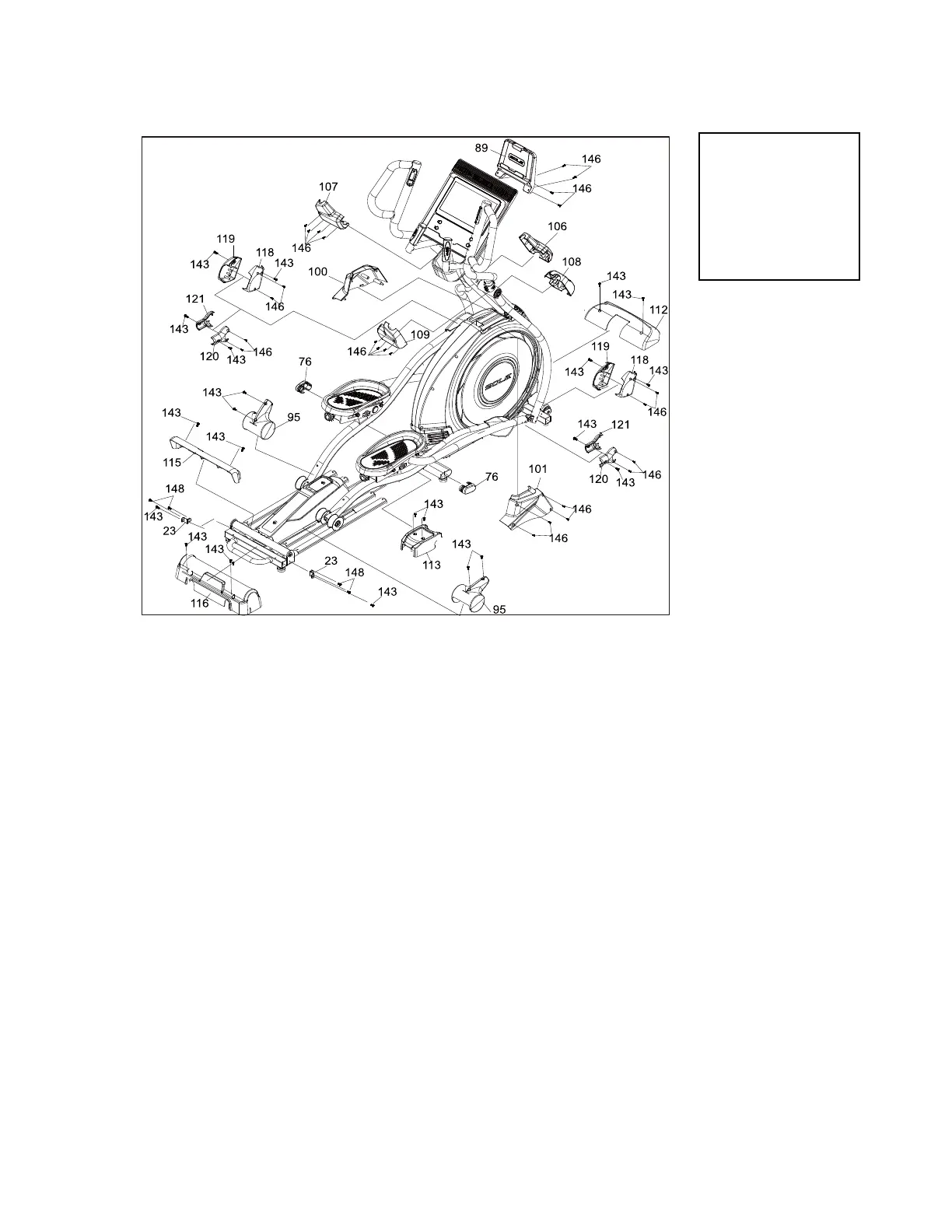

E95 ASSEMBLY INSTRUCTIONS
PLASTIC PARTS
1. Match the Connecting Arm Covers B (L) and (R), (121) and (120), on Pedal Bar
Assembly (L) (8) and secure with 2pcs Phillips Head Screws (143) and 2pcs Sheet
Metal Screws (146). Then match the Connecting Arm Covers A (R) and (L), (118) and
(119), on the lower portion of the Lower Handlebar (L) (10) and secure with 2pcs
Phillips Head Screws (143) and 2pcs Sheet Metal Screws (146) by using Short
Phillips Head Screwdriver (180). Repeat for the other side.
2. Install Slide Wheel Covers (95) above each side of the Slide Wheel, Urethanes and
secure with 4pcs Phillips Head Screws (143) by using Phillips Head Screwdriver
(181).
3. Use 2pcs Phillips Head Screws (143) to secure Front Stabilizer Cover (112) on the
front stabilizer with Phillips Head Screwdriver (181).
4. Install the Cover Holders (23), with the hole for mounting the plastic cover on the
bent tab facing rearward and secure them on the Incline Rail Assembly (2) with
4pcs Phillips Head Screws (148). Install the Inclinable Rail Cover (115) on the rail
base with 2pcs Phillips Head Screws (143). Secure Rear Bar Cover (116) on the Rear
Stabilizer and the Cover Holders (23) with 4pcs Phillips Head Screws (143) by using
Phillips Head Screwdriver (181).
5. Secure Bottom Cover (113) on the Incline Rail Assembly (2) with 2pcs Phillips Head
Screws (143) by using Phillips Head Screwdriver (181).
6. Install the Handlebar Covers (106 & 107, 108 & 109) over the Handlebar axle
connections and secure with 4pcs Sheet Metal Screws (146) by using Phillips Head
Screwdriver (181).
7. Match right and left Console Mast Cover (100 &101). Install the covers with 4pcs
Sheet Metal Screws (146) to the Console Mast (12).
8. Install the Tablet Holder (89) to the back of the console with 4pcs Sheet Metal
Screws (146).
9. Plug in both Oval End Caps (76) onto both ends of the stabilizer tube.
#143. M5 × 10mm_
Phillips Head Screw
(22 pcs)
#146. 3.5 × 12mm_
Sheet Metal Screw
(24 pcs)
#148. M6 × 10mm_
Phillips Head Screw
(4 pcs)
HARDWARE STEP 4
