Solid State Logic Alpha-Link AX User Manual

10

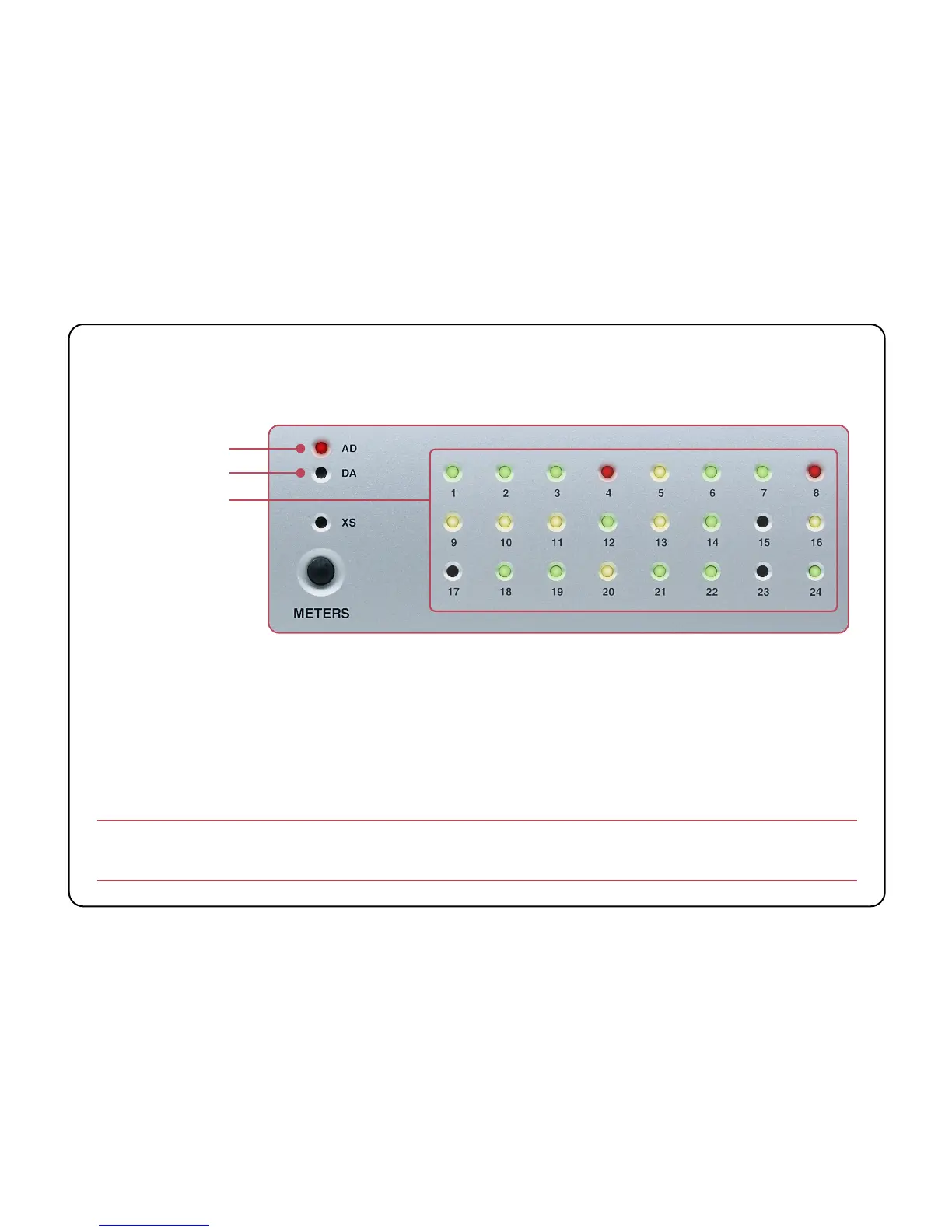

Signal Meters
The meter section of the front panel provides simple tri-colour LED metering for either the 24 analogue inputs (AD)
or the 24 analogue outputs (DA), selectable using the METERS button.
For each input or output channel, the signal level is represented by the state of the LED with the corresponding
number. The LEDs respond to the signal level in the digital domain (in dB FS) as follows:
• OFF < –30dB FS (less than –8dBu applied to an analogue input; –12dBu or –6dBu for Alpha-Link LIVE)
• GREEN > –30dB FS (greater than –8dBu applied to an analogue input; –12dBu or –6dBu for Alpha-Link LIVE)
• AMBER > –3.0dB FS (greater than +19dBu applied to an analogue input; +15dBu or +21dBu for Alpha-Link LIVE)
• RED > –0.1dB FS (+22dBu or more applied to an analogue input; +18dBu or +24dBu for Alpha-Link LIVE)
Whilst the XS LED is located in this area of the front panel, it is has no metering function – its use is described
in the System Settings and Diagnostics section of this guide.
Input Metering
Output Metering
Tri-colour LED Meters
(24 Channels)
