Solid State Logic Alpha-Link AX User Manual

19

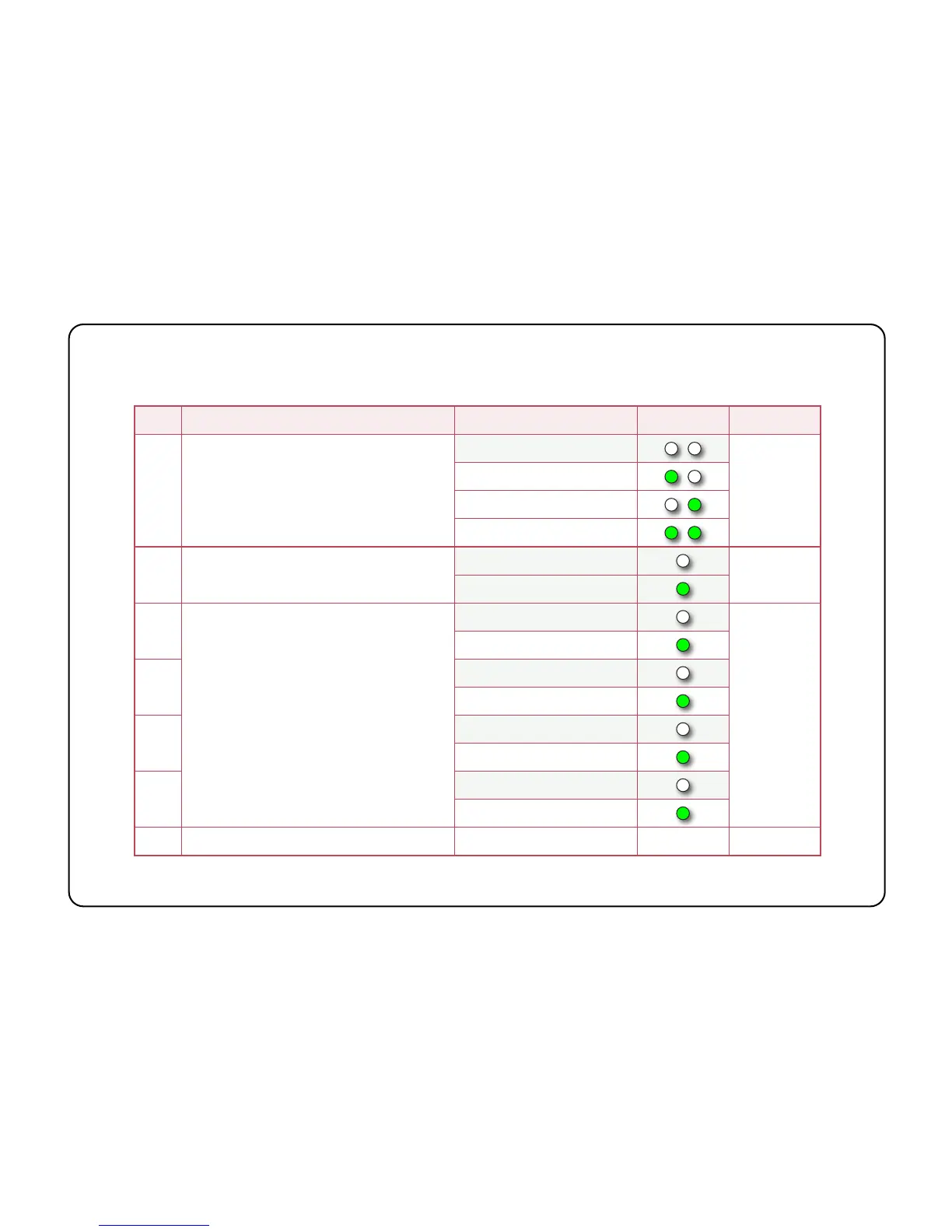

Virtual Switches, Page Two (Alpha-Link MADI-SX and LIVE)
Settings in bold indicate defaults. Please also refer to the notes overleaf for details regarding each setting.
LED Option Setting LED States See Note
1
2
AES/EBU clock source (port ‘A’ only)
AES/EBU In 1 & 2
3.
AES/EBU In 3 & 4
AES/EBU In 5 & 6
AES/EBU In 7 & 8
3 Clock source for ‘External’ selection
Wordclock (MADI-SX)
4.
MADI (LIVE)
4
AES/EBU sample rate converters
(port ‘A’ only)
Input 1 & 2 enabled
5.
Input 1 & 2 bypassed
5
Input 3 & 4 enabled
Input 3 & 4 bypassed
6
Input 5 & 6 enabled
Input 5 & 6 bypassed
7
Input 7 & 8 enabled
Input 7 & 8 bypassed
8 Unused n/a n/a –
