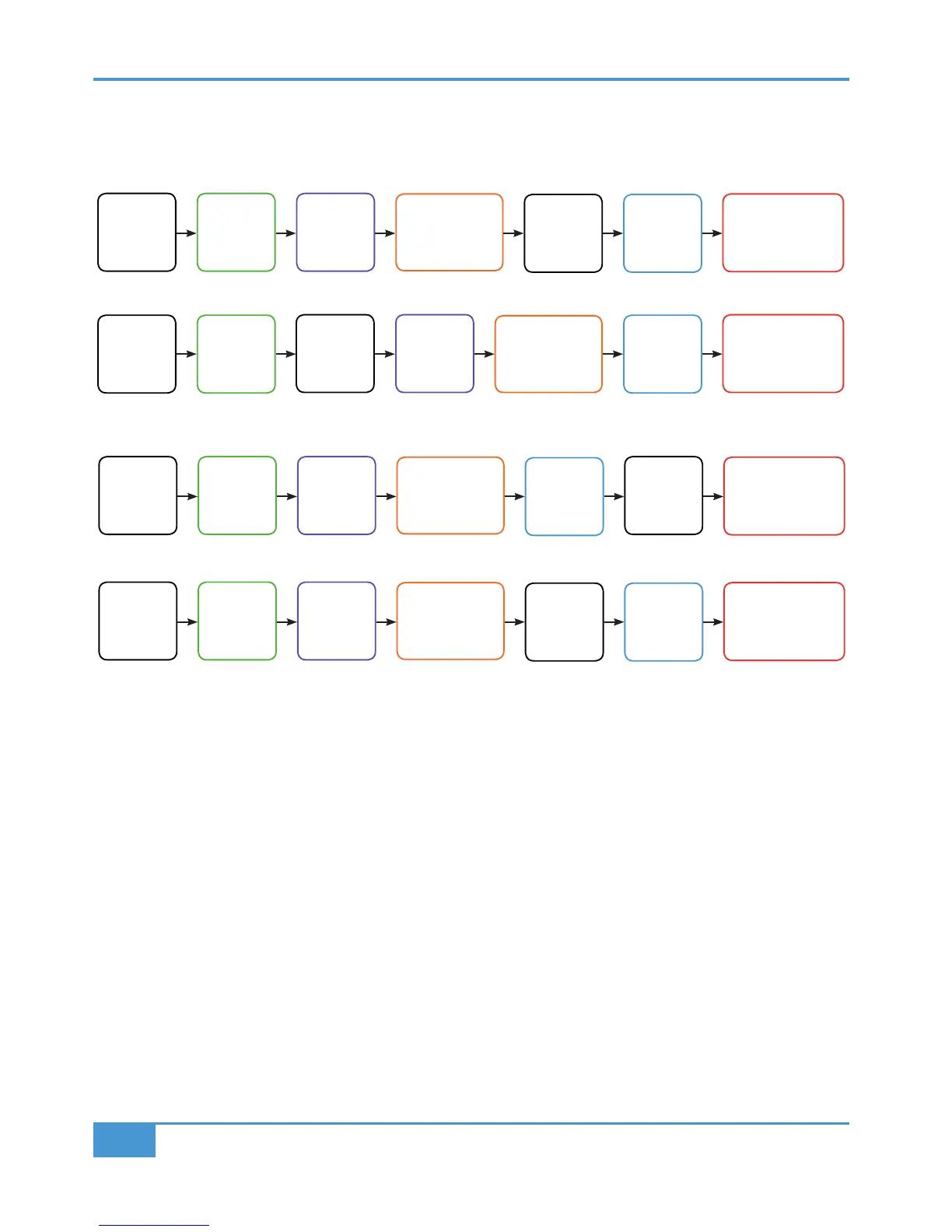

Signal Flow Overview
A detailed Block Diagram is available in Appendix C. The diagram below gives you an overview of the signal path options Fusion
provides.
INSERT (Standard)
INSERT (Standard) + Pre EQ
INSERT (M/S Mode)
INSERT (M/S Mode) + Pre EQ
HPF
INSERT
POINT
VINTAGE
DRIVE
STEREO
VIOLET
EQ
TRANSFORMER
HF
COMPRESSOR
HPF
M/S
INSERT
POINT
VINTAGE
DRIVE
STEREO
VIOLET
EQ
TRANSFORMER
HF
COMPRESSOR
HPF
M/S
INSERT
POINT
VINTAGE
DRIVE
STEREO
VIOLET
EQ
TRANSFORMER
HF
COMPRESSOR
HPF
INSERT
POINT
VINTAGE
DRIVE
STEREO
VIOLET
EQ
TRANSFORMER
HF
COMPRESSOR
