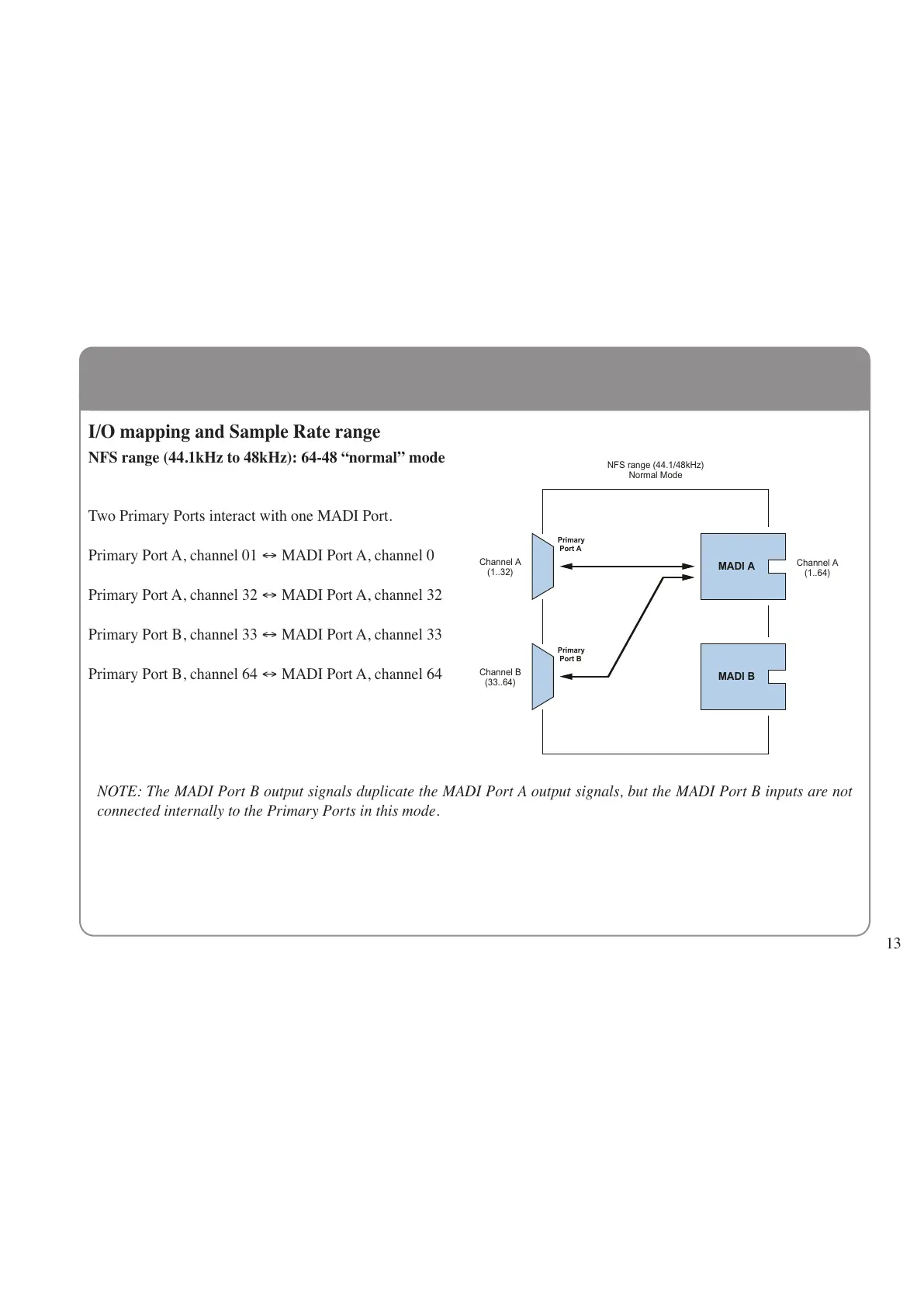

I/O mapping and Sample Rate range
NFS range (44.1kHz to 48kHz): 64-48 “normal” mode
Two Primary Ports interact with one MADI Port.
Primary Port A, channel 01 ↔ MADI Port A, channel 0
Primary Port A, channel 32 ↔ MADI Port A, channel 32
Primary Port B, channel 33 ↔ MADI Port A, channel 33
Primary Port B, channel 64 ↔ MADI Port A, channel 64
NOTE: The MADI Port B output signals duplicate the MADI Port A output signals, but the MADI Port B inputs are not
connected internally to the Primary Ports in this mode.
MADI A
MADI B
Primary
Port A
Primary
Port B
Channel A
(1..32)
Channel A
(1..64)
Channel B
(33..64)
NFS range (44.1/48kHz)
Normal Mode
