Solid State Logic XLogic Delta-Link MADI HD - 2 Overview; Front Panel

5

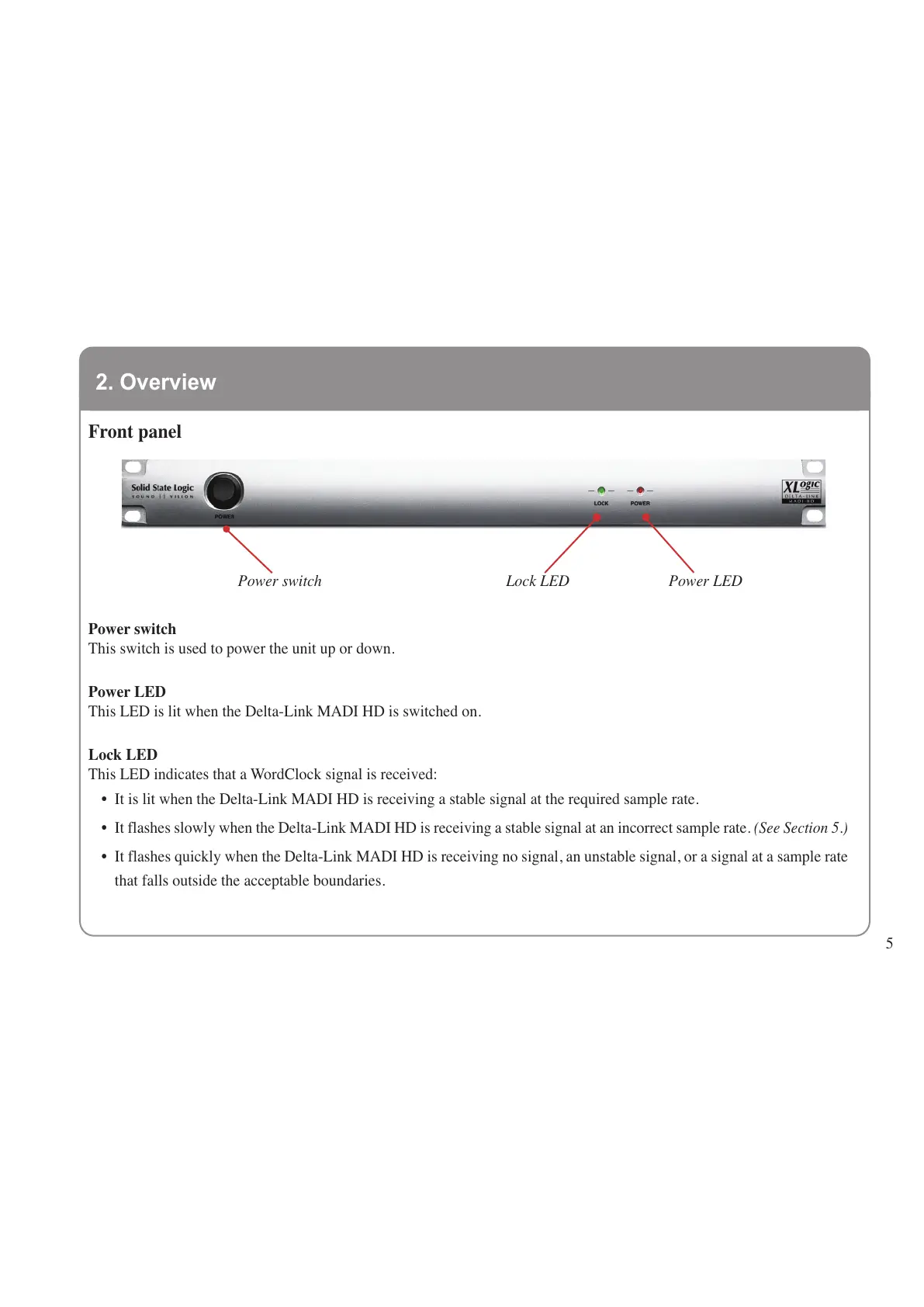

Front panel
Power switch Lock LED Power LED
Power switch
This switch is used to power the unit up or down.
Power LED
This LED is lit when the Delta-Link MADI HD is switched on.
Lock LED
This LED indicates that a WordClock signal is received:
• It is lit when the Delta-Link MADI HD is receiving a stable signal at the required sample rate.
• It flashes slowly when the Delta-Link MADI HD is receiving a stable signal at an incorrect sample rate.
(See Section 5.)
• It flashes quickly when the Delta-Link MADI HD is receiving no signal, an unstable signal, or a signal at a sample rate
that falls outside the acceptable boundaries.
2. Overview
