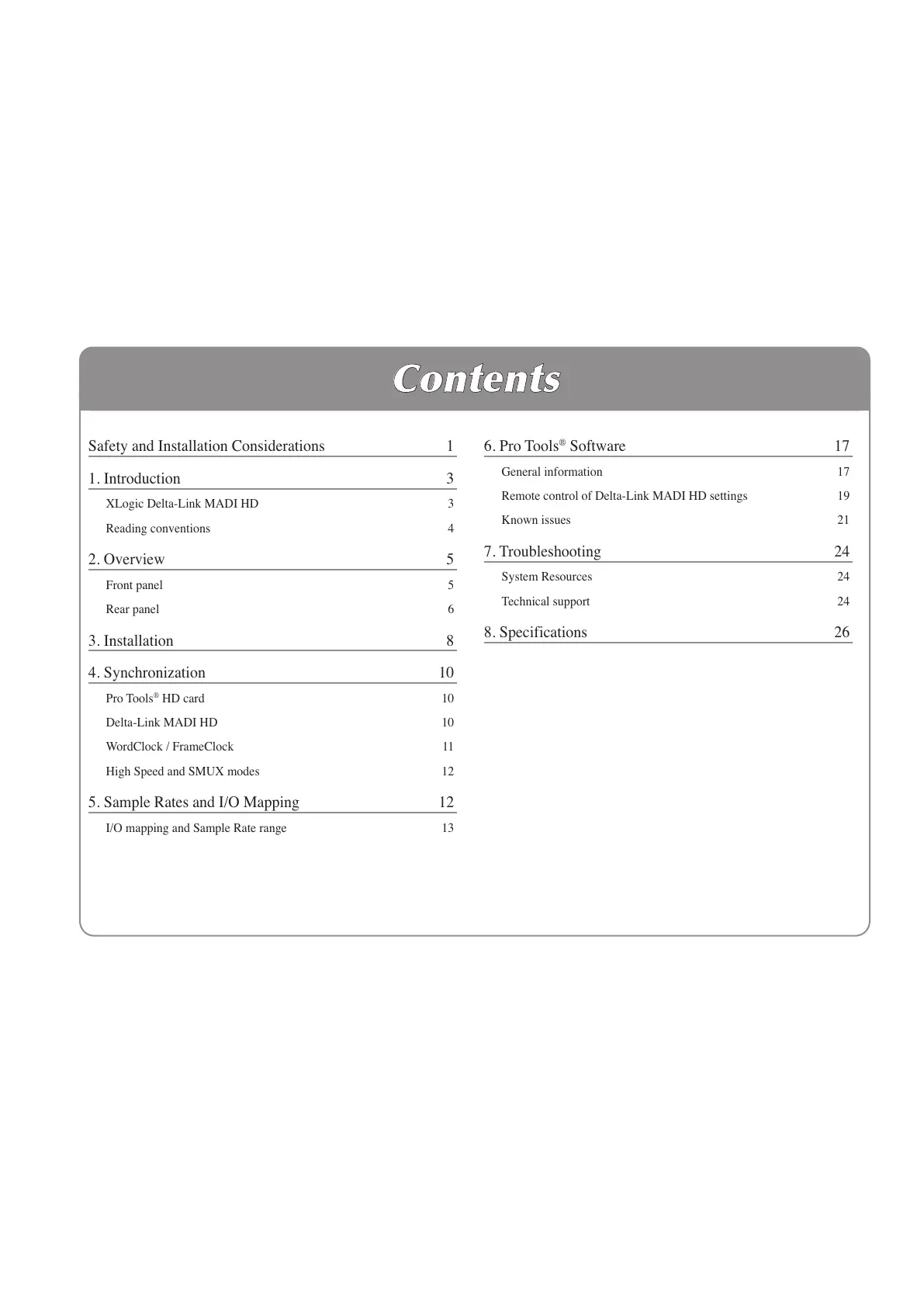

Solid State Logic XLogic Delta-Link MADI HD - Default Chapter; Table of Contents

Safety and Installation Considerations 1
1. Introduction 3
XLogic Delta-Link MADI HD 3
Reading conventions 4
2. Overview 5
Front panel 5
Rear panel 6
3. Installation 8
4. Synchronization 10
Pro Tools
®
HD card 10
Delta-Link MADI HD 10
WordClock / FrameClock 11
High Speed and SMUX modes 12
5. Sample Rates and I/O Mapping 12
I/O mapping and Sample Rate range 13
6. Pro Tools
®
Software 17
General information 17
Remote control of Delta-Link MADI HD settings 19
Known issues 21
7. Troubleshooting 24
System Resources 24
Technical support 24
8. Specifications 26
