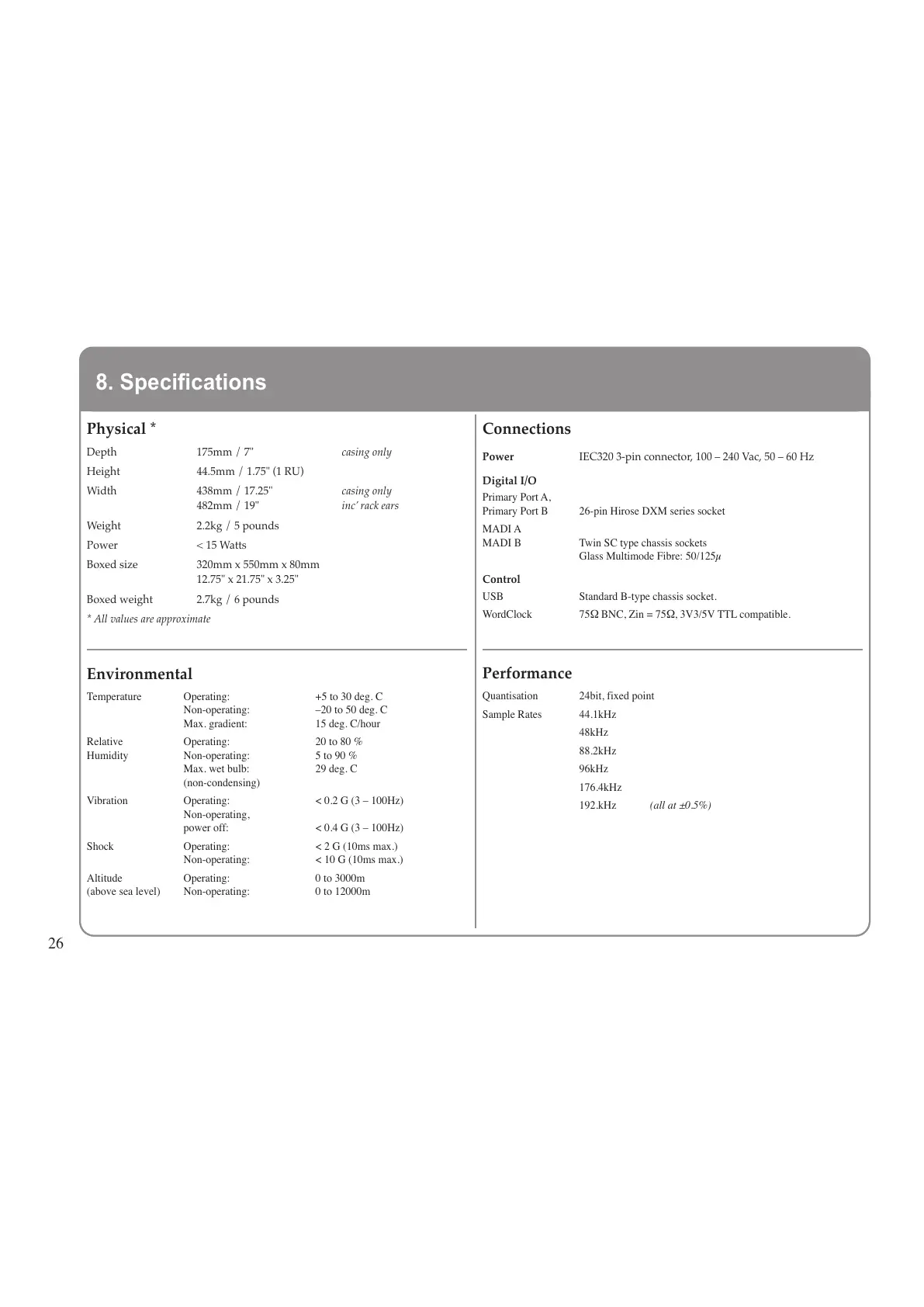

8. Specifications
Physical *
Depth 175mm / 7" casing only
Height 44.5mm / 1.75" (1 RU)
Width 438mm / 17.25" casing only
482mm / 19" inc’ rack ears
Weight 2.2kg / 5 pounds
Power < 15 Watts
Boxed size 320mm x 550mm x 80mm
12.75" x 21.75" x 3.25"
Boxed weight 2.7kg / 6 pounds
* All values are approximate
Environmental
Temperature Operating: +5 to 30 deg. C
Non-operating: –20 to 50 deg. C
Max. gradient: 15 deg. C/hour
Relative Operating: 20 to 80 %
Humidity Non-operating: 5 to 90 %
Max. wet bulb: 29 deg. C
(non-condensing)
Vibration Operating: < 0.2 G (3 – 100Hz)
Non-operating,
power off: < 0.4 G (3 – 100Hz)
Shock Operating: < 2 G (10ms max.)
Non-operating: < 10 G (10ms max.)
Altitude Operating: 0 to 3000m
(above sea level) Non-operating: 0 to 12000m
Connections
Power IEC320 3-pin connector, 100 – 240 Vac, 50 – 60 Hz
Digital I/O
Primary Port A,
Primary Port B 26-pin Hirose DXM series socket
MADI A
MADI B Twin SC type chassis sockets
Glass Multimode Fibre: 50/125µ
Control
USB Standard B-type chassis socket.
WordClock 75Ω BNC, Zin = 75Ω, 3V3/5V TTL compatible.
Performance
Quantisation 24bit, fixed point
Sample Rates 44.1kHz
48kHz
88.2kHz
96kHz
176.4kHz
192.kHz (all at ±0.5%)
