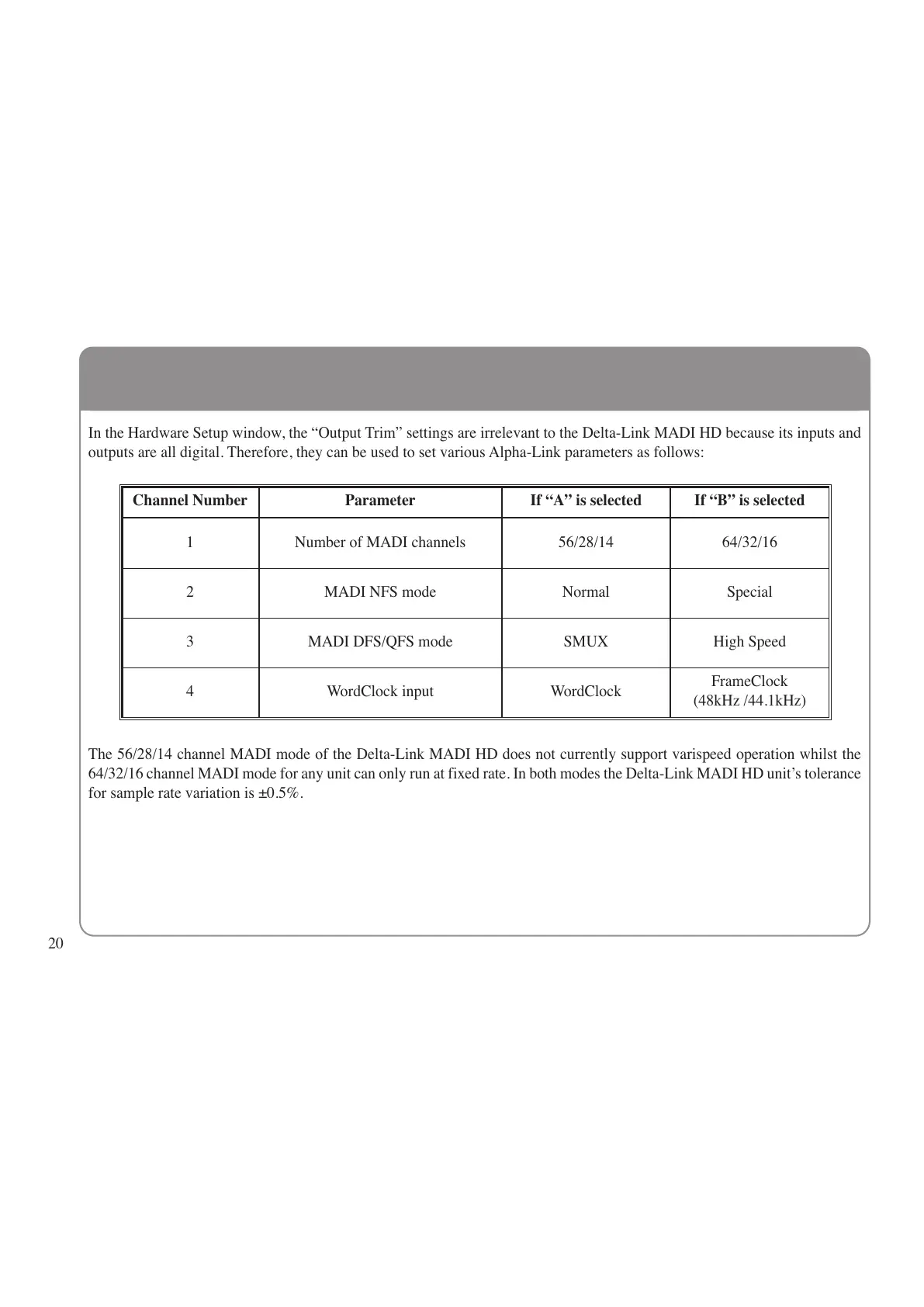

In the Hardware Setup window, the “Output Trim” settings are irrelevant to the Delta-Link MADI HD because its inputs and

outputs are all digital. Therefore, they can be used to set various Alpha-Link parameters as follows:

The 56/28/14 channel MADI mode of the Delta-Link MADI HD does not currently support varispeed operation whilst the

64/32/16 channel MADI mode for any unit can only run at fixed rate. In both modes the Delta-Link MADI HD unit’s tolerance

for sample rate variation is ±0.5%.

Channel Number Parameter If “A” is selected If “B” is selected

1 Number of MADI channels 56/28/14 64/32/16

2 MADI NFS mode Normal Special

3 MADI DFS/QFS mode SMUX High Speed

4 WordClock input WordClock

FrameClock

(48kHz /44.1kHz)
