User Manual
ECA-B Series
Applicablemodel
Cablerequirements
Outside diameter Wire gauge
ECA-S07K-BS0 13-18mm 6mm²
ECA-S11K-BS0 13-18mm 2.5mm²
ECA-S22K-BS0 13-18mm 6mm²
•Recommended supply Type A RCBO or MCB+Type A RCCB or MCB+Type A RCD for charger:
ECA-S07K-BS0: Ue=230V, In=40A, 3P.
ECA-S11K-BS0: Ue=400V, In=20A, 4P.
ECA-S22K-BS0: Ue=400V, In=40A, 4P.

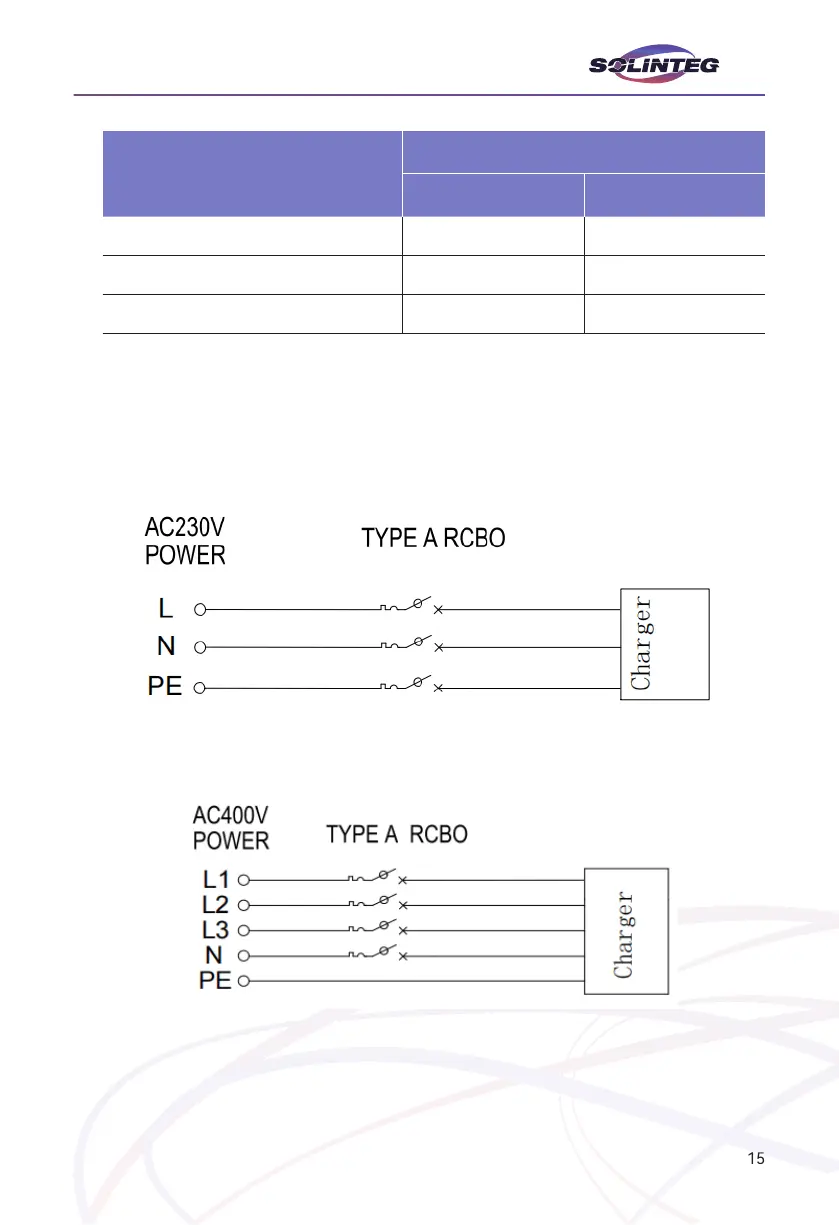

Diagram of electrical system of product (7kW):
Diagram of electrical system of product (11kW/22kW):
