4.2.2 AC Connection

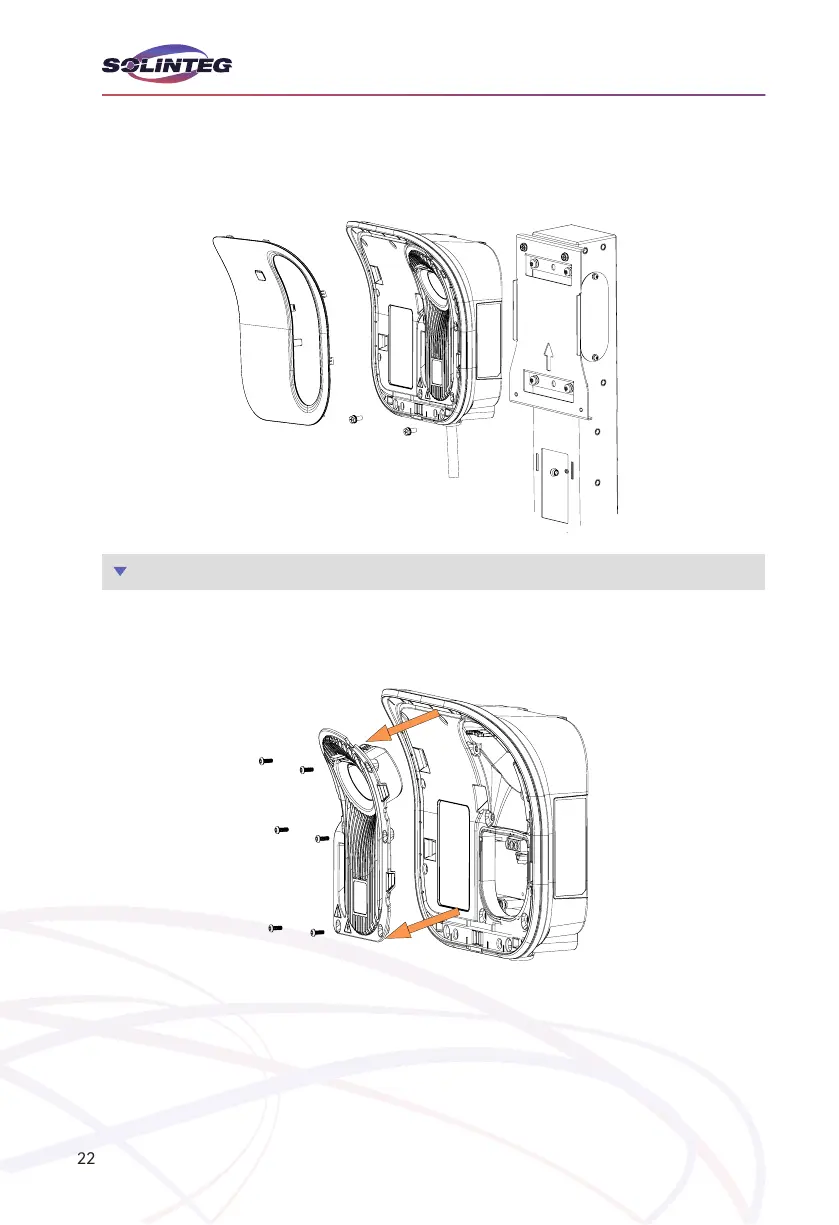

Before connecting power supply wire, remove the screws of the charging connector holder

and dismantle the charging connector holder rst and wiring window will display.

Step5. Hang the charger on the two extended screws at the top of the mounting accesso,

and inse the two M6*16 screws at the bottom through the front screw mounting hole of

the charger to x the charger.

Find power supply terminal in the wiring window.

Charging Connector Holder Wiring Window
